Crouse Hinds TP644 Octagon Concrete Box 4 in. x 4 in. x 4 in.

Product Description

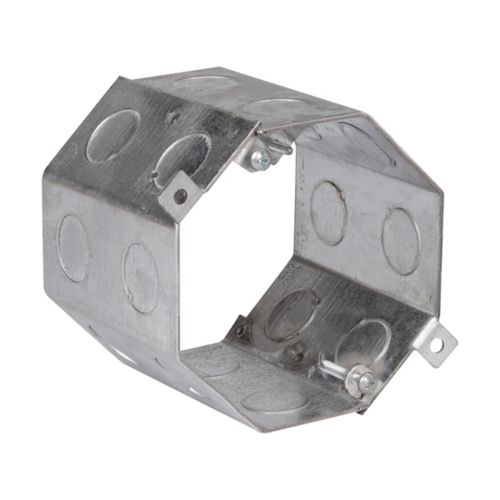

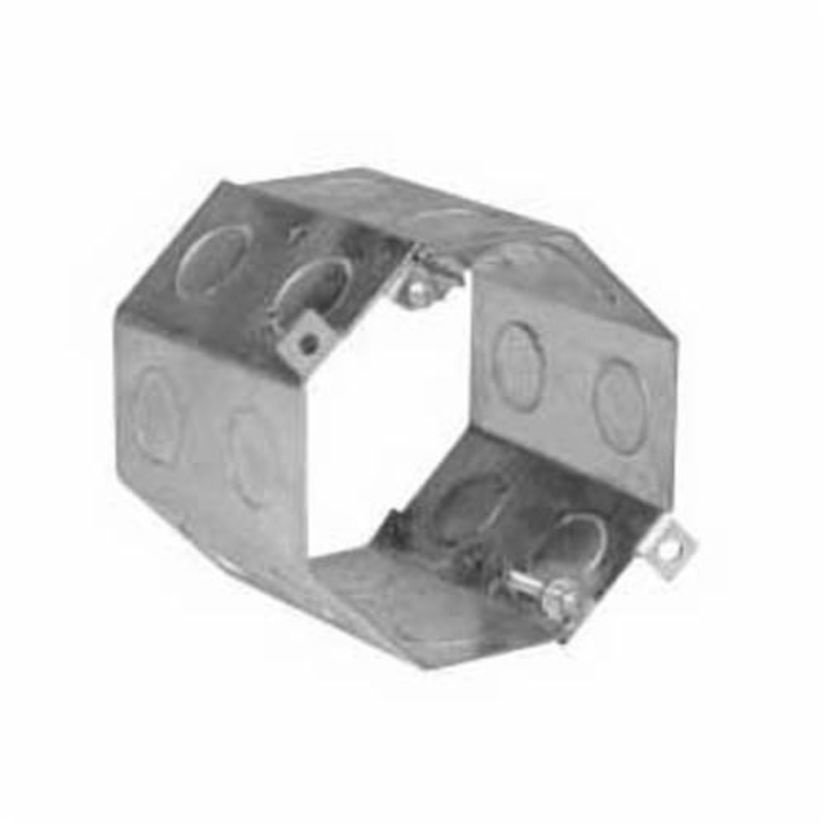

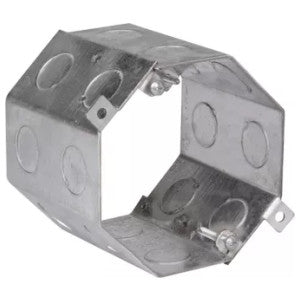

The CROUSE HINDS TP644 Octagon Concrete Box is a 4-inch steel box suitable for use with 4-inch octagon steel specialty boxes. It features a steel construction and measures 4 in x 4 in x 4 in with a 47 cubic inch capacity. This octagon concrete box includes 1/2-inch and 3/4-inch double row knockouts and is UL listed and CSA certified.

• Comes with two external mounting ears suitable for holding the box to forms snugly.
• Steel specialty outlet box is suitable for use in poured deck applications.
• Includes double row of 1/2 and 3/4 in. knockouts.

Product Highlights

Steel octagon concrete box with 1/2-inch and 3/4-inch double row knockouts, suitable for poured deck applications.

Product Information

Standard Information

• Brand: CROUSE HINDS
• Manufacturer Part Number: TP644
• Country of Origin: US - United States

Technical Specifications

• Material: Steel
• Box size: 4"
• Depth: 4"
• Side knockouts: 1/2 in and 3/4 in double row
• Capacity: 47 cubic in
• Specification Met: Csa, Ul
• Cubic inch capacity: 47.0
• Cable Entry Size: Knockout
• Diameter: 4 in
• Knockout Size: 1/2 in, 3/4 in
• Manufacturer: Eaton
• Shape: Octagon
• Type / Style: Specialty Welded
• Brand: Crouse-Hinds
