Crouse Hinds TP620 Octagon Concrete Box 4 inches 2 inches Steel

Product Description

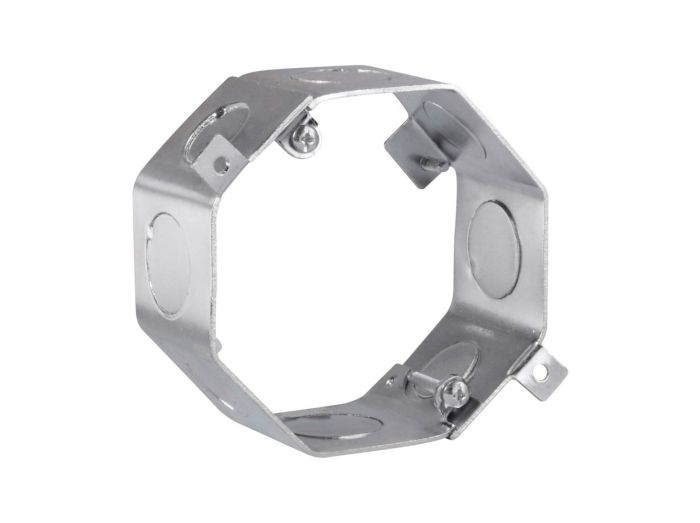

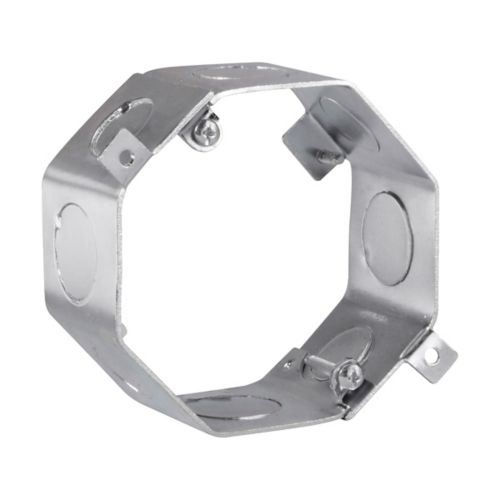

The CROUSE HINDS TP620 is an Eaton Crouse-Hinds series Octagon Concrete Box, designed for use in poured concrete decks. Constructed from steel, this 4" box has a 23.0 cubic inch capacity and features 1/2" and 3/4" single row side knockouts. It is installed flush with concrete after the forms are removed.

• Single row knockouts
• 4 in octagonal box
• Sturdy Steel Construction

Product Highlights

The CROUSE HINDS TP620 octagon concrete box is made of steel with 1/2" and 3/4" single row knockouts and a 23 cubic inch capacity.

Product Information

Standard Information

• Brand: CROUSE HINDS
• Manufacturer Part Number: TP620

Technical Specifications

• Product Name: Eaton Crouse-Hinds series octagon concrete box
• Catalog Number: TP620
• UPC: 786189106206
• Product Length/Depth: 4 in
• Product Height: 2 in
• Product Width: 4 in
• Product Type: Octagon concrete box
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• Material: Steel
• Box size: 4"
• Depth: 2"
• Side knockouts: 1/2 in and 3/4 in single row
• Capacity: 23 cubic in
• Knockout Size: 1/2 in, 3/4 in
• Shape: Octagon
• Standard & Approvals: UL Listed
• Number of Knockouts: 2
• Product Series: CP
• Manufacturer Part Number: TP620
• Manufacturer: Eaton's Crouse-Hinds series
• Family Series: Eaton's Crouse-Hinds series Electrical Boxes, CP Series
• Description: Eaton Crouse-Hinds series Octagon Concrete Box, 4, 2, Steel, 1/2 and 3/4 single row, 23.0 cubic inch capacity
• Knockouts: (8) 1/2-3/4 "
