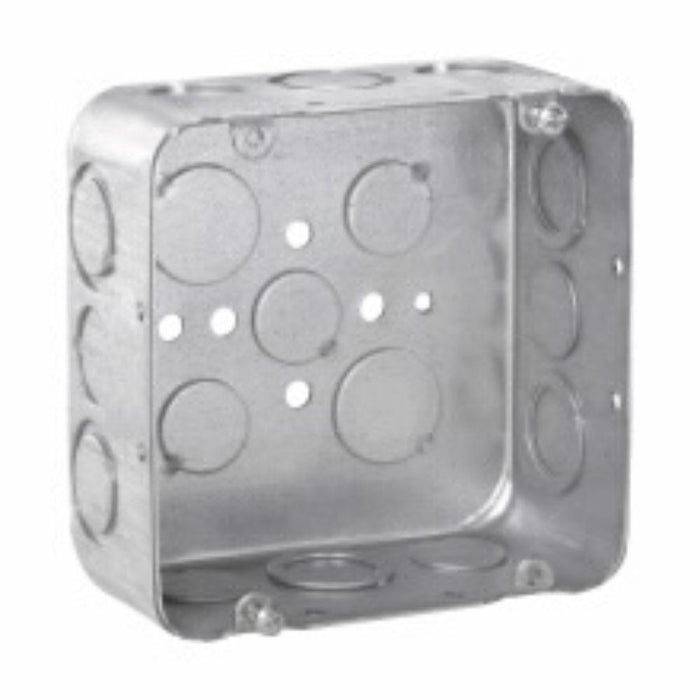

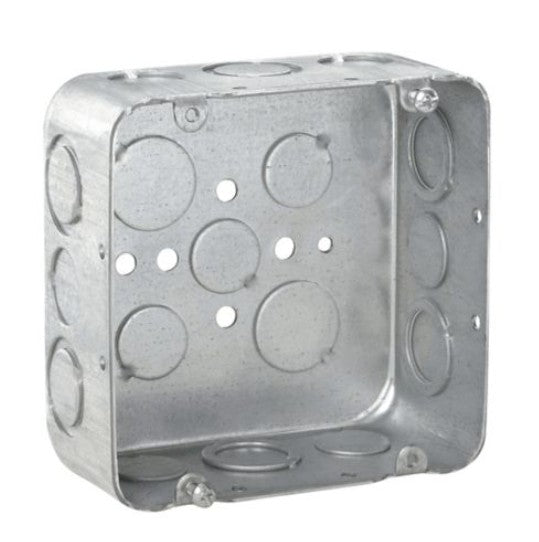

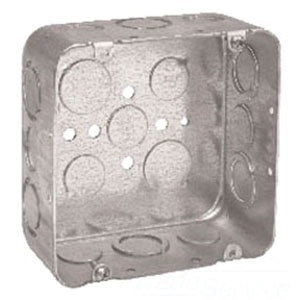

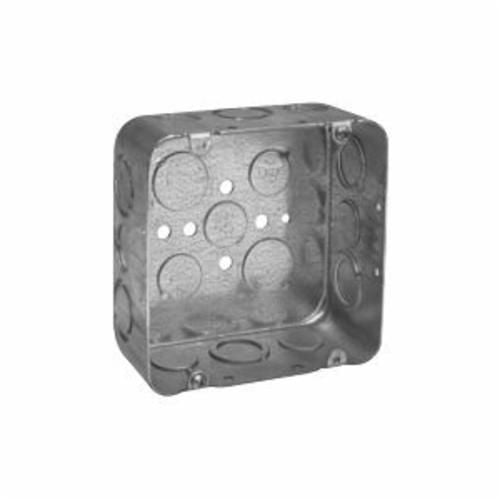

Crouse Hinds TP563 Steel Deep Outlet Box 4-11/16-Inch x 4-11/16-Inch x 2-1/8-Inch 42-Cubic-Inch

Product Description

The Crouse-Hinds TP563 drawn deep outlet box features steel construction for longer endurance. It has six 1/2-Inch, six 1/2-Inch & 3/4-Inch knockouts at sides and three 1/2-Inch, two 3/4-Inch knockouts at the bottom. This square box measures 4-11/16-Inch x 4-11/16-Inch. The box has a maximum capacity of 42-Cubic-Inch and is UL listed.

• Knockouts Size: Concentric - (6) 1/2-Inch and (6) 1/2-Inch + 3/4-Inch Side, (3) 1/2-Inch and (2) 3/4-Inch Bottom
• Knockouts does not require bonding jumper and are ideal for use in above or below 250-Volt circuits
• Extensive cover is suitable for various customer applications and needs.

Product Highlights

The Crouse-Hinds TP563 outlet box is perfect for exposed work applications, offering an easy method for the installation of electrical devices.

Product Information

Standard Information

• Brand: CROUSE HINDS
• Manufacturer Part Number: TP563
• Country of Origin: United States of America

Technical Specifications

• Material: Steel
• Standards: UL 514A, 514B, 514C Listed
• Type: Deep
• Size: 4-11/16 Inch x 4-11/16 Inch
• Shape: Square
• Number of Knockouts: 23.0000
• Knockouts: (6) 1/2 Inch and (6) 1/2 Inch and 3/4 Inch Concentric Side, (3) 1/2 Inch and (2) 3/4 Inch Concentric Bottom
• Construction: Drawn
• Cubic Capacity: 42
• Depth: 2.125
• Item Name: Outlet Box
• Manufacturer Name: Cooper Crouse-Hinds
• Manufacturer Part Number: TP563
• Brand Name: Crouse-Hinds
• Country Of Origin: United States of America
• Product Length/Depth: 4.69 in
• Product Height: 2.13 in
• Product Width: 4.69 in
• Product Weight: 1.04 lb
• Product Type: Square outlet box
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• Box size: 4-11/16"
• Capacity: 42 cubic in
• Conduit/cable: Conduit (no clamps)
• Side knockouts: (6) 1/2 in, (6) 1/2 in, (1) 3/4 in C
• Bottom Knockouts: (3) 1/2 in, (2) 3/4 in
