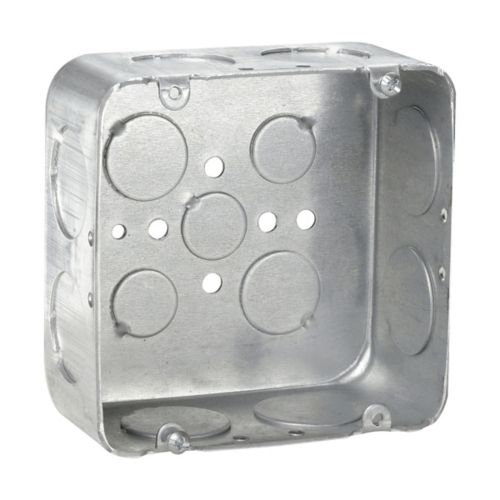

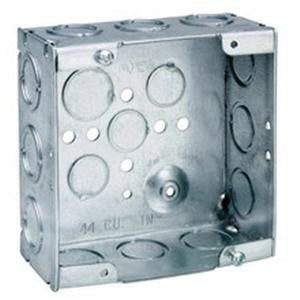

Crouse Hinds TP560 Steel Deep Outlet Box 4-11/16-Inch x 4-11/16-Inch x 2-1/8-Inch

Product Description

The Crouse-Hinds TP560 deep outlet box features steel construction for longer endurance. It has eight 1-Inch knockouts at sides, three 1/2-Inch and two 3/4-Inch knockouts at the bottom. This square box measures 4-11/16-Inch x 4-11/16-Inch and has a maximum capacity of 42-Cubic-Inch. It is suitable for use with conduit and perfect for exposed work applications.

• Knockouts Size: (8) 1-Inch Side, (3) 1/2-Inch and (2) 3/4-Inch Bottom
• Raised ground screw location in the welded boxes saves time in installation
• Knockouts does not require bonding jumper and are ideal for use in above or below 250-Volt circuits

Product Highlights

Steel construction ensures durability. Features multiple knockouts for versatile conduit connections. Ideal for exposed work.

Product Information

Standard Information

• Brand: CROUSE HINDS
• Manufacturer Part Number: TP560
• Country of Origin: United States of America

Technical Specifications

• Material: Steel
• Standards: UL 514A, 514B, 514C Listed
• Type: Deep
• Size: 4-11/16 Inch x 4-11/16 Inch
• Shape: Square
• Number of Knockouts: 13.0000
• Knockouts: (8) 1 Inch Side, (3) 1/2 Inch and (2) 3/4 Inch Bottom
• Construction: Drawn
• Cubic Capacity: 42
• Depth: 2.125
• Item Name: Outlet Box
• Manufacturer Name: Cooper Crouse-Hinds
• Manufacturer Part Number: TP560
• Brand Name: Crouse-Hinds
• Country Of Origin: United States of America
• UNSPSC: 39121308
• Product Length/Depth: 4.69 in
• Product Height: 2.13 in
• Product Width: 4.69 in
• Product Type: Square outlet box
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• Box size: 4-11/16"
• Capacity: 42 cubic in
• Conduit/cable: Conduit (no clamps)
• Side knockouts: (8) 1 in
• Bottom Knockouts: (3) 1/2 in, (2) 3/4 in
• Finish Type: Steel
• Installation Type: Screw-In
