Crouse Hinds TP558 Square Outlet Box 42 cu-in Replacement TP558

Product Description

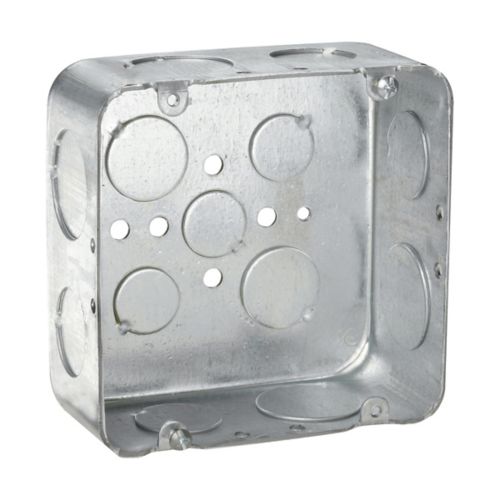

The Eaton Crouse-Hinds TP558 series square outlet box features (3) 1/2" and (2) 3/4" bottom knockouts, and (4) 3/4" and (4) 1" side knockouts. This 4-11/16" steel drawn outlet box has a 42.0 cubic inch capacity and is suitable for conduit without clamps. It is designed for ordinary/non-hazardous locations and meets NEC/CEC standards.

• 4-11/16" square outlet box with 42 cubic inch capacity
• Constructed from durable steel with a drawn construction
• Features multiple knockout sizes for versatile conduit connections

Product Highlights

The Crouse-Hinds TP558 is a robust steel square outlet box with multiple knockouts and a drawn construction, ideal for various conduit applications in ordinary locations.

Product Information

Standard Information

• Brand: Crouse Hinds
• Manufacturer Part Number: TP558
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton Crouse-Hinds series square outlet box
• Catalog Number: TP558
• UPC: 786189105582
• Product Length/Depth: 4.69 in
• Product Height: 2.13 in
• Product Width: 4.69 in
• Product Weight: 1.04 lb
• Product Type: Square outlet box
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• Box size: 4-11/16"
• Capacity: 42 cubic in
• Depth: 2-1/8"
• Conduit/cable: Conduit (no clamps)
• Construction: Drawn
• Side knockouts: (4) 3/4 in, (4) 1 in
• Bottom Knockouts: (3) 1/2 in, (2) 3/4 in
• Material: Steel
• Applications: Conduit
• Size: 4-11/16 In Width X 2-1/8 In Depth X 4-11/16 In Height
• Standard: UL
• Type: Square
• Brand: Crouse-Hinds
• Sub Brand: Commercial Products
• Knockout Diameter: 1/2 in, 3/4 in
• Mounting: Screw On, Nail On
• Cubic Inches: 42 in
• Model: Drawn
• Length: 4-11/16"
• Width: 4-11/16"
• Height: 2-1/8"
• Country of Origin: United States
• Number_Of_Outlets: 13
• Shape: Square
• Special Features: (3) 1/2, (2) 3/4 in bottom knockout (4) 3/4, (4) 1 in side knockout Concentric knockouts have a 1/2 and 3/4 in knockout in the same location for customer flexibility Extensive cover offering to meet various customer applications and needs Knockouts are suitable for use without a bonding jumper in circuits above or below 250 VAC Raised ground screw location in the welded boxes saves time in installation Welded or drawn construction to match customer preference
• Cubic_Capacity: 42
