Crouse Hinds TP556 Steel Deep Outlet Box 4-11/16-Inch x 4-11/16-Inch x 2-1/8-Inch

Product Description

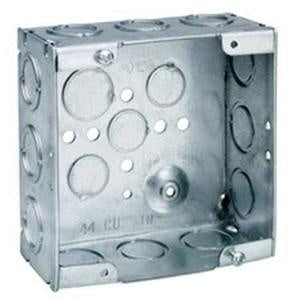

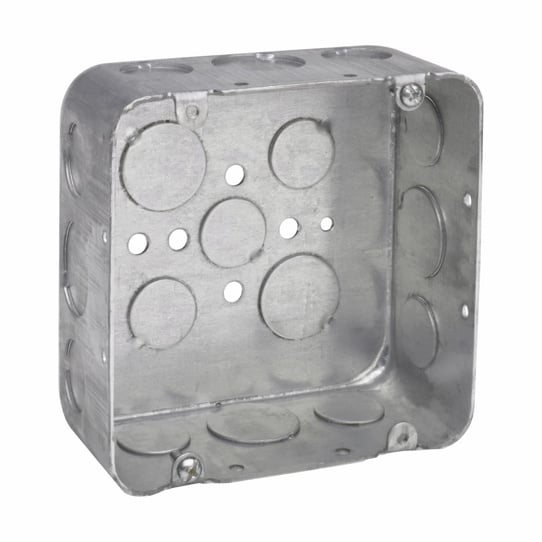

The Crouse-Hinds TP556 drawn deep outlet box features steel construction for longer endurance. It has eight 1/2-Inch, four 3/4-Inch knockouts at sides and three 1/2-Inch, two 3/4-Inch knockouts at the bottom. This square box measures 4-11/16-Inch x 4-11/16-Inch with a 42-Cubic-Inch capacity. It is UL listed.

• Knockouts Size: (8) 1/2-Inch and (4) 3/4-Inch Side, (3) 1/2-Inch and (2) 3/4-Inch Bottom
• Raised ground screw location in the welded boxes saves time in installation
• Knockouts does not require bonding jumper and are ideal for use in above or below 250-Volt circuits

Product Highlights

The Crouse-Hinds TP556 outlet box is perfect for exposed work applications, offering an easy method for the installation of electrical devices.

Product Information

Standard Information

• Brand: Crouse Hinds
• Manufacturer Part Number: TP556
• Country of Origin: United States of America

Technical Specifications

• Material: Steel
• Standards: UL 514A, 514B, 514C Listed
• Type: Deep
• Size: 4-11/16 Inch x 4-11/16 Inch
• Shape: Square
• Number of Knockouts: 17.0000
• Knockouts: (8) 1/2 Inch and (4) 3/4 Inch Side, (3) 1/2 Inch and (2) 3/4 Inch Bottom
• Construction: Drawn
• Cubic Capacity: 42 Cubic In
• Depth: 2.125
• Item Name: Outlet Box
• Manufacturer Name: Cooper Crouse-Hinds
• Manufacturer Part Number: TP556
• Brand Name: Crouse-Hinds
• Country Of Origin: United States of America
• UNSPSC: 39121308
• Electrical Category: Electrical Boxes And Enclosures
• Electrical Subcategory: Utility Boxes
• Application: Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other
• Color: Natural
• Standard: UL
• Sub Brand: Crouse-Hinds series
• Product Length/Depth: 4.69 in
• Product Height: 2.13 in
• Product Width: 4.69 in
• Product Type: Square outlet box
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• Box size: 4-11/16"
• Capacity: 42 cubic in
• Conduit/cable: Conduit (no clamps)
• Side knockouts: (8) 1/2 in, (4) 3/4 in
• Bottom Knockouts: (3) 1/2 in, (2) 3/4 in
