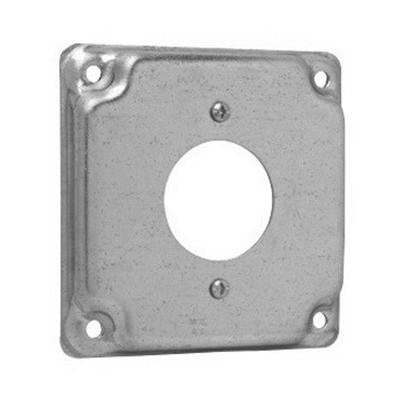

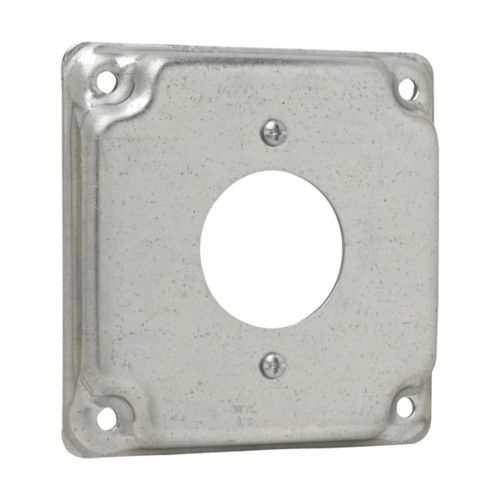

Crouse Hinds TP507 Steel Raised Surface Cover With (1) Single Receptacle Opening 4-Inch x 4-Inch x 1/2-Inch

Product Description

The CROUSE HINDS TP507 surface cover features steel construction for longer endurance. This 4-inch square cover is 1/2-inch raised with a cubic capacity of 5.5 cubic inches. The cover has one 1-19/32-inch Dia 20-Amp single receptacle configuration and supports surface mounting. Suitable for use in exposed work applications and is UL listed and CSA certified.

• Steel construction for longer endurance
• Suitable for surface mounting
• For use on any 4-Inch square box

Product Highlights

The Crouse-Hinds TP507 is a steel raised surface cover with a single receptacle opening, designed for durability and versatile application.

Product Information

Standard Information

• Brand: CROUSE HINDS
• Manufacturer Part Number: TP507
• Country of Origin: United States of America

Technical Specifications

• Construction: Steel
• Size: 4-Inch x 4-Inch
• Raise: 1/2-Inch
• Cubic Capacity: 5.5-Cubic-Inch
• Receptacle Configuration: One 1-19/32-Inch Dia 20-Amp single receptacle
• Application: Exposed work applications
• Certification: UL listed and CSA certified
• Standards: UL Listed, CSA Certified
• Shape: Square
• Mounting: Surface
• Item Name: Raised Surface Cover
• Brand Name: Crouse-Hinds
• Manufacturer Part Number: TP507
• Product Type: Square surface cover
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• Box size: 4"
• Capacity: 5.5 cubic in
• Configuration: Raised surface
• Type: For one 20 amp single receptacle 1-19/32" diameter
• Use With: 4 in. Box
• Box Capacity: 5.5 cu. in.
• Box Cover Type: Single Receptacle
• Box Type: Electrical Box
• Raised Cover Height: 1/2 in.
