Crouse Hinds TP454 Steel Standard Outlet Box 4-Inch x 4-Inch x 1-1/2-Inch 22-Cubic-Inch

Product Description

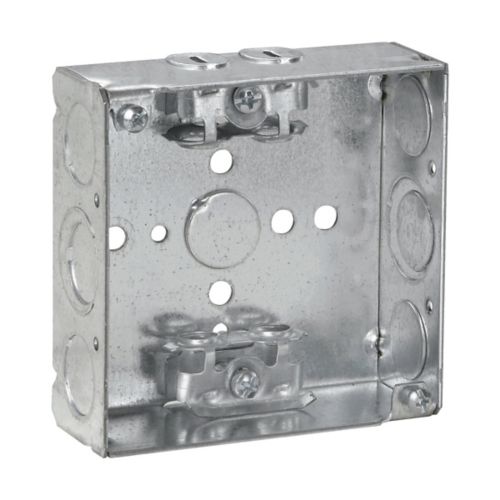

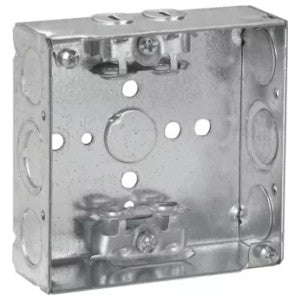

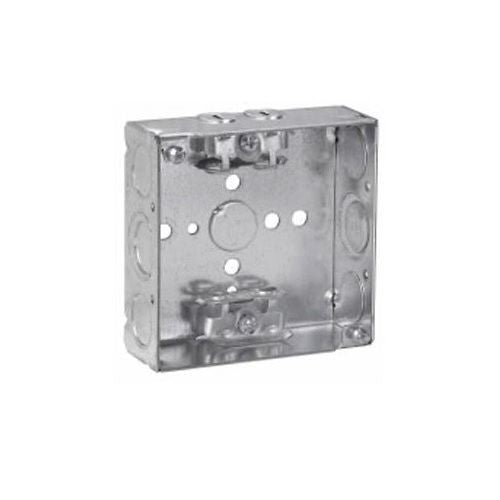

The Crouse-Hinds TP454 welded standard outlet box features steel construction for enhanced durability. Measuring 4-Inch x 4-Inch, this square box has a 22-Cubic-Inch capacity. It includes four 1/2-Inch, two 1/2-Inch & 3/4-Inch knockouts in the sides and one 1/2-Inch knockout in the bottom. Suitable for use with armored cable and exposed work applications.

• Features eccentric knockouts: (4) 1/2-Inch and (2) 1/2-Inch + 3/4-Inch Side, (1) 1/2-Inch Bottom
• Includes ceiling mount for use as a junction box or to mount lighting fixtures
• Raised ground screw location saves time in installation

Product Highlights

Steel welded outlet box with multiple knockouts and a raised ground screw for easy installation.

Product Information

Standard Information

• Brand: CROUSE HINDS
• Manufacturer Part Number: TP454
• Country of Origin: United States of America

Technical Specifications

• Material: Steel
• Standards: UL 514A, 514B, 514C Listed
• Type: Standard
• Size: 4 Inch x 4 Inch
• Shape: Square
• Number of Knockouts: 9.0000
• Knockouts: (4) 1/2 Inch and (2) 1/2 Inch and 3/4 Inch Eccentric Side, (1) 1/2 Inch Eccentric Bottom
• Construction: Welded
• Cubic Capacity: 22
• Depth: 1.5
• Item Name: Outlet Box
• Manufacturer Name: Cooper Crouse-Hinds
• Manufacturer Part Number: TP454
• Brand Name: Crouse-Hinds
• Country Of Origin: United States of America
• UNSPSC: 39121308
• Product Type: Square outlet box
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• Box size: 4"
• Capacity: 22 cubic in
• Conduit/cable: AC/MC clamps
• Side knockouts: (4) 1/2 in, (2) 1/2 in, (1) 3/4 in E
• Bottom Knockouts: (1) 1/2 in
• Use With: Armoured/MC Cable
• With Knockouts: Yes
• Cubic inch capacity: 22.0
• Standard & Approvals: UL Listed
• Application: Armored, metal clad cable
