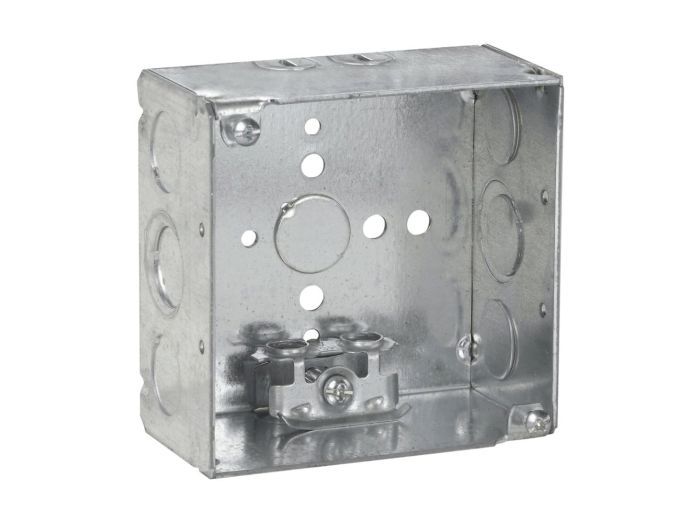

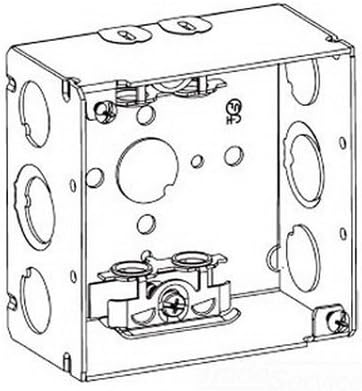

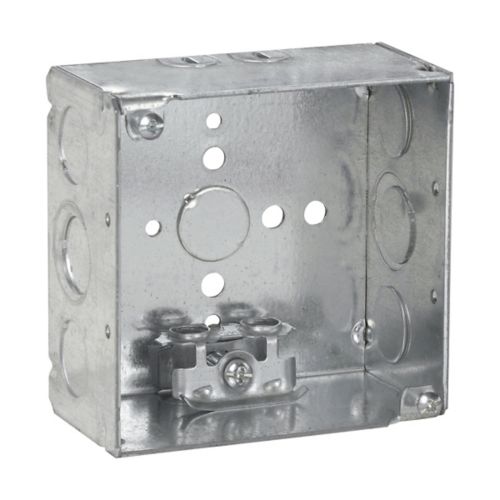

Crouse Hinds TP431 Steel Deep Outlet Box 4-Inch x 4-Inch x 2-1/8-Inch

Product Description

The Crouse-Hinds TP431 welded deep outlet box features steel construction for longer endurance. It has four cable, four 1/2-Inch, two 1/2-Inch & 3/4-Inch knockouts in sides and one 1/2-Inch knockout in bottom. This square box measures 4-Inch x 4-Inch with a capacity of 30.3-Cubic-Inch. Suitable for armored/metal clad (MCI) cable and HCF cable.

• Knockouts Size: Eccentric - (4) Cable, (4) 1/2-Inch and (2) 1/2-Inch + 3/4-Inch Side, (1) 1/2-Inch Bottom
• Extensive cover meets various customer applications and needs
• Includes ceiling mount to use as a junction box or to mount lighting fixtures

Product Highlights

The welded box is UL listed and offers an easy method for the installation of electrical devices. Raised ground screw location saves installation time.

Product Information

Standard Information

• Brand: CROUSE HINDS
• Manufacturer Part Number: TP431
• Country of Origin: United States of America

Technical Specifications

• Material: Steel
• Standards: UL 514A, 514B, 514C Listed
• Type: Deep
• Size: 4 Inch x 4 Inch
• Shape: Square
• Number of Knockouts: 13.0000
• Knockouts: (4) Eccentric Cable, (4) 1/2 Inch and (2) 1/2 Inch and 3/4 Inch Eccentric Side, (1) 1/2 Inch Eccentric Bottom
• Construction: Welded
• Cubic Capacity: 30.3
• Depth: 2.125
• Item Name: Outlet Box
• Includes: Clamps in Each End
• Manufacturer Name: Cooper Crouse-Hinds
• Manufacturer Part Number: TP431
• Brand Name: Crouse-Hinds
• Country Of Origin: United States of America
• UNSPSC: 39121308
• GTIN: 00786189104318
• Product Length/Depth: 4 in
• Product Height: 2.13 in
• Product Width: 4 in
• Product Type: Square outlet box
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• Box size: 4"
• Capacity: 30.3 cubic in
• Conduit/cable: AC/MC clamps
• Side knockouts: (4) 1/2 in, (2) 1/2 in, (1) 3/4 in E
• Bottom Knockouts: (1) 1/2 in
• Cable knockouts: 4
• Box Type: Welded
• Clamp Type: Armored/Metal Clad Cable
• Cover Included: No
• Bracket: None
• Set Back: None
• Grounding: No
• Approvals: UL
• Knockout Size: 1/2 and 3/4 in
• Series: TP
• Standard & Approvals: UL Listed, RoHS Compliant
• Cable Entry: Knockouts
• Application: For exposed work application providing an easy method for the installation of electrical device (switches, receptacles, fans, lights)
