Crouse Hinds TP426 Square Extension Ring 4 inches 1-1/2 inches (8) 3/4 inches

Product Description

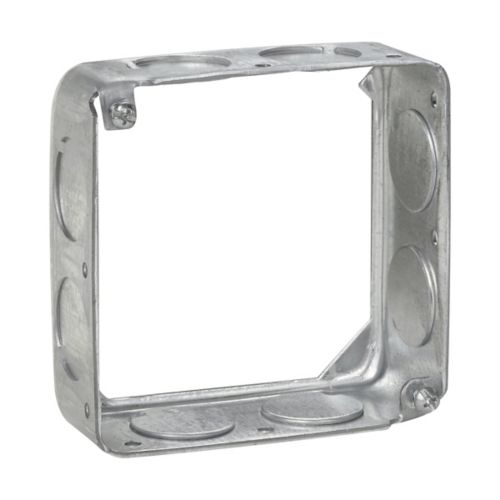

The CROUSE HINDS TP426 square extension ring is 4", drawn, and made of steel. It features a 1-1/2" depth and (8) 3/4" side knockouts. With a 21.0 cubic inch capacity, this extension ring is suitable for ordinary/non-hazardous locations and complies with NEC/CEC standards. Use cases include extending electrical boxes to accommodate wiring.

• 4" square extension ring
• Drawn steel construction
• Features (8) 3/4" side knockouts

Product Highlights

The CROUSE HINDS TP426 square extension ring is ideal for extending electrical boxes in ordinary locations.

Product Information

Standard Information

• Brand: CROUSE HINDS
• Manufacturer Part Number: TP426

Technical Specifications

• Product Name: Eaton Crouse-Hinds series square extension ring
• Catalog Number: TP426
• UPC: 786189104264
• Product Length/Depth: 4 in
• Product Height: 1.5 in
• Product Width: 4 in
• Product Weight: 0.46 lb
• Product Type: Square extension ring
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• Box size: 4"
• Capacity: 21 cubic in
• Depth: 1-1/2"
• Construction: Drawn
• Side knockouts: (8) 3/4 in
• Material: Steel
• Knockout Diameter: 3/4 in
• Cubic Inches: 21 in³
• Catalog ID: THETP426
