Crouse Hinds TP301 Steel Pan Ceiling Fan Box 4-Inch x 1/2-Inch 6-Cubic-Inch

Product Description

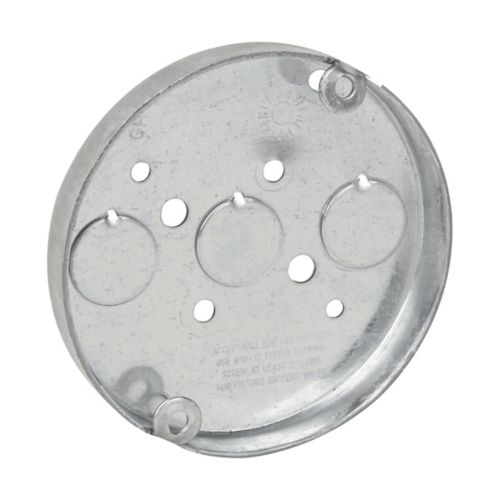

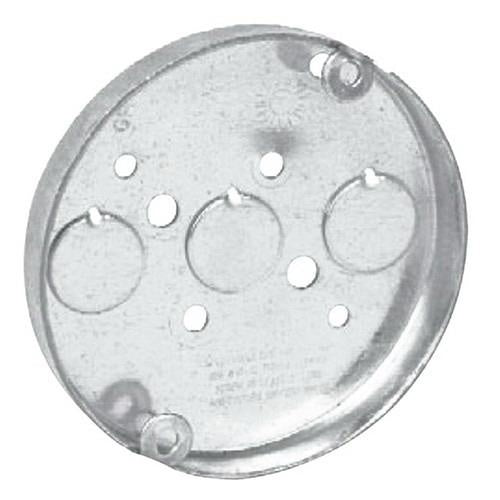

The Crouse-Hinds TP301 pan ceiling fan box has a 6 cubic inch capacity and is constructed of steel. Measuring 4 inches x 1/2 inches, this round box features three 1/2-inch knockouts at the bottom and is screw mountable. It supports fans up to 70 lb and fixtures up to 90 lb and mounts directly to the stud for secure installation. Includes NM snap-in connector and protective cover.

• Knockouts Size: (3) 1/2-Inch Bottom
• Fan is supported independent of outlet box
• Mounting screws go through box and into joist

Product Highlights

Steel construction ensures durability. Supports both fans and fixtures. Easy and secure screw mounting.

Product Information

Standard Information

• Brand: CROUSE HINDS
• Manufacturer Part Number: TP301
• Country of Origin: United States of America

Technical Specifications

• Material: Steel
• Standards: UL 514A, 514B, 514C Listed
• Type: Pan
• Size: 4 In Diameter X 1/2 In Depth
• Shape: Round
• Number of Knockouts: 3.0000
• Mounting: Screw
• Knockouts: (3) 1/2 Inch Bottom
• Cubic Capacity: 6
• Depth: 0.5
• Item Name: Ceiling Fan Box
• Includes: NM Snap-In Connector, Protective Cover
• UPC: 78618910301
• Manufacturer Name: Cooper Crouse-Hinds
• Manufacturer Part Number: TP301
• Brand Name: Crouse-Hinds
• Country Of Origin: United States of America
• UNSPSC: 39121316
• GTIN: 00786189103014
• Product Length/Depth: 4 in
• Product Height: 0.5 in
• Product Width: 4 in
• Product Type: Ceiling fan box
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• Box size: 4"
• Capacity: 6 cubic in
• Bottom Knockouts: (3) 1/2 in
• Special features: Fan rated, fixture rated
• Style: Compact
• Finish Type: Powder Coated
• Installation Type: Screw-In
• Specification Met: Ul
• Applications: Ceiling Fan Box
• Ceiling Fan: Ceiling Fan
• Sub Brand: Commercial Products
• 12-Digit UPC: 786189103014
• Height: 1/2 Inch
• Length: 4 Inch
• Width: 4 in
