Crouse Hinds TP290 Steel Deep Outlet Box 4-Inch x 4-Inch x 2-1/8-Inch

Product Description

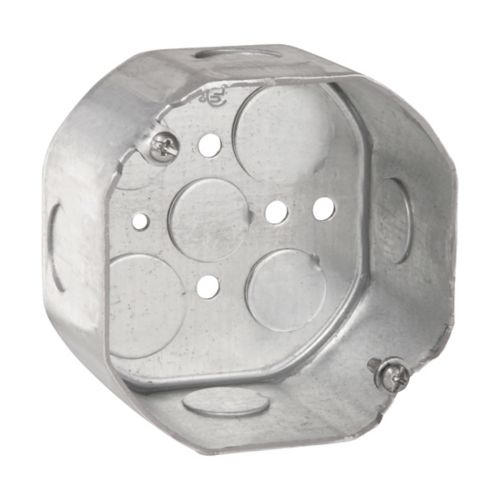

The Crouse-Hinds TP290 deep outlet box features steel construction. This octagon box has four 3/4-Inch knockouts in sides, three 1/2-Inch and two 3/4-Inch knockouts in bottom. Measuring 4-Inch x 4-Inch with a 21.5-Cubic-Inch capacity, it is suitable for use with conduit. UL listed.

• Knockouts Size: (4) 3/4-Inch Side, (3) 1/2-Inch and (2) 3/4-Inch Bottom
• Features steel construction
• Fixture bar hanger concedes box to be located anywhere along length of bar

Product Highlights

Steel construction, deep outlet box with multiple knockouts and a 21.5 cubic inch capacity.

Product Information

Standard Information

• Brand: CROUSE HINDS
• Manufacturer Part Number: TP290
• Country of Origin: United States of America

Technical Specifications

• Material: Steel
• Standards: UL 514A, 514B, 514C Listed
• Type: Deep
• Size: 4 Inch x 4 Inch
• Shape: Octagonal
• Number of Knockouts: 9.0000
• Knockouts: (4) 3/4 Inch Side, (3) 1/2 Inch and (2) 3/4 Inch Bottom
• Cubic Capacity: 21.5
• Depth: 2.125
• Item Name: Outlet Box
• UPC: 78618910290
• Manufacturer Name: Cooper Crouse-Hinds
• Manufacturer Part Number: TP290
• Brand Name: Crouse-Hinds
• Country Of Origin: United States of America
• Product Length/Depth: 4 in
• Product Height: 2.13 in
• Product Width: 4 in
• Product Weight: 0.64 lb
• Product Type: Octagon outlet box
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• Box size: 4"
• Capacity: 21.5 cubic in
• Conduit/cable: Conduit (no clamps)
• Side knockouts: (4) 3/4 in
• Bottom Knockouts: (3) 1/2 in, (2) 3/4 in
• Special features: Fixture rated
• Finish: Natural
• Series: CP
• Standard & Approvals: UL Listed, CSA Certified, RoHS Compliant
• Dimensions: 4 in W x 1-1/8 in D x 4 in H
