Crouse Hinds TP288 Octagon Box 4IN 2-1/8D 1/2IN Ko

Product Description

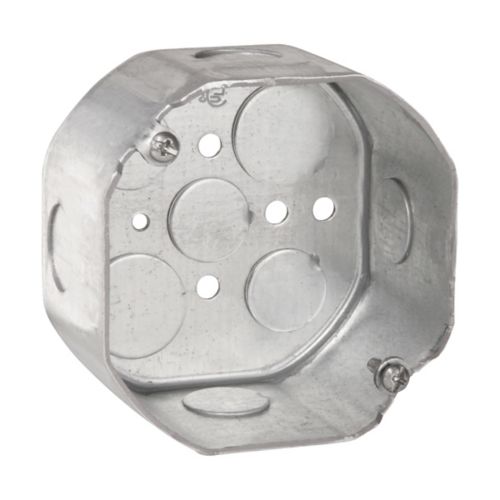

The Crouse-Hinds TP288 series steel octagon outlet box can be used in the installation of ceiling or wall lighting fixtures or as a junction box. It has (3) 1/2" and (2) 3/4" knockouts, is 4 inches, and has a 21.5 cubic inch capacity.

• Fixture rated
• Includes ground screw with pigtail lead
• Can be used in commercial and institutional buildings

Product Highlights

The Crouse-Hinds TP288 octagon outlet box is made of steel and is UL listed.

Product Information

Standard Information

• Brand: Crouse Hinds
• Manufacturer Part Number: TP288

Technical Specifications

• Trade Size: 4IN
• Application: Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other
• Cable Entry: KO
• Catalog Description (MFR): Eaton Crouse-Hinds series Octagon Outlet Box, (3) 1/2", (2) 3/4", 4", Conduit (no clamps), 2-1/8", Steel, (4) 1/2", Fixture rated, 21.5 cubic inch capacity
• Color: Natural
• Construction: Drawn
• Cubic Capacity: 21.5
• Gang: Round
• Knockouts: True
• Marketing Message (MFR): Crouse-Hinds series steel octagon outlet boxes, covers, adjustable bar hangers and ceiling pans can be used in the installation of ceiling or wall lighting fixtures or as a junction box. A variety of labor-saving mounting brackets are available that allow for easy positioning of the octagon box along studs or joists. The adjustable bar hangers allow the octagon box to be located anywhere along the length of the bar.
• Material: Steel
• Special Features: Fixture rated
• Standard: UL
• Type: Octagon outlet box
• Product Length/Depth: 4 in
• Product Height: 2.13 in
• Product Width: 4 in
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• Box size: 4"
• Side knockouts: (4) 1/2 in
• Bottom Knockouts: (3) 1/2 in, (2) 3/4 in
• Depth: 2-1/8"
• Conduit/cable: Conduit (no clamps)
