Crouse Hinds TP286 Steel Extension Ring 4-Inch x 4-Inch x 1-1/2-Inch

Product Description

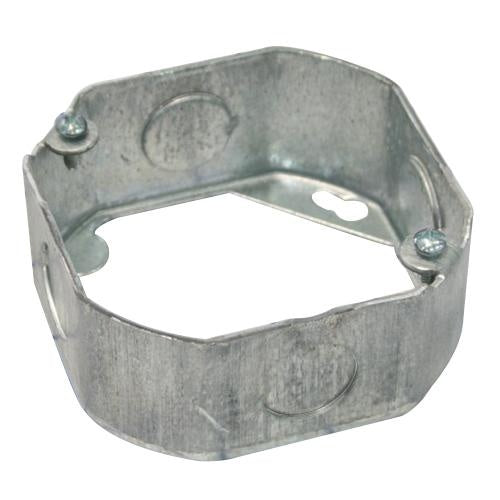

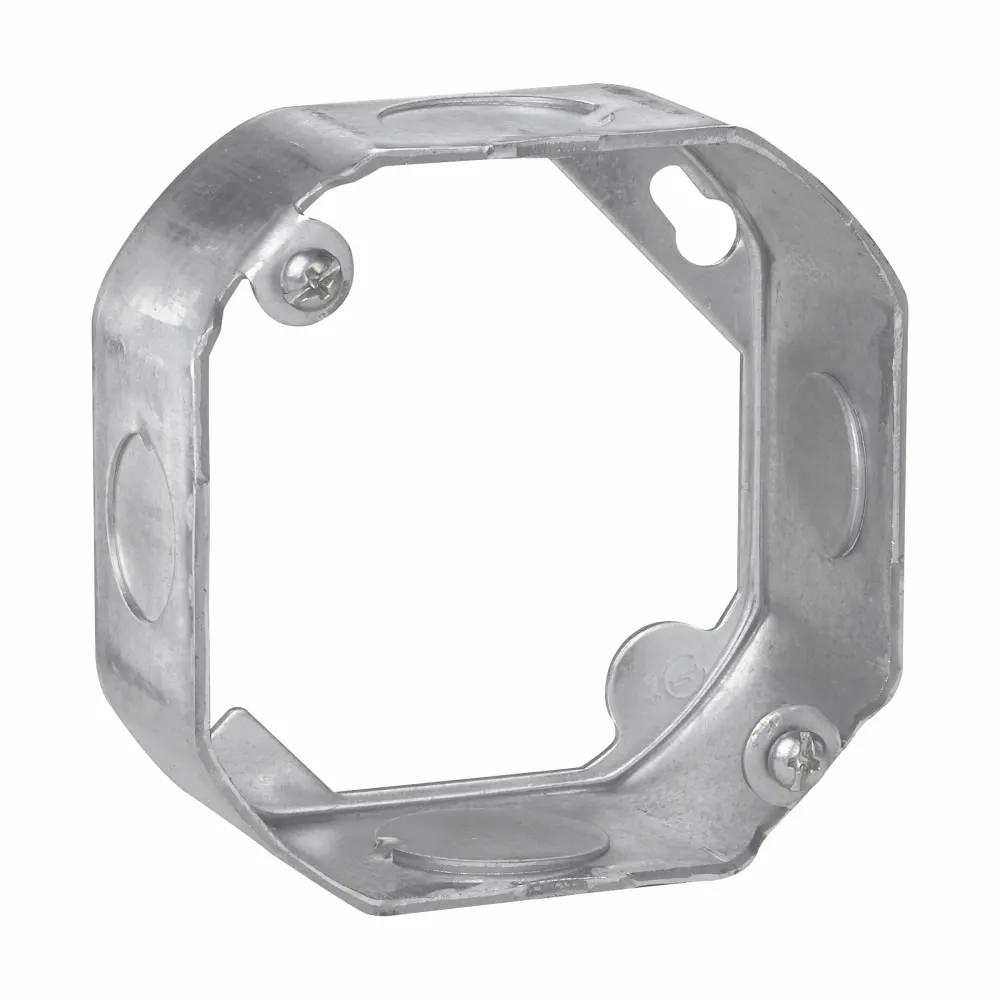

The CROUSE HINDS TP286 extension ring is designed for use with 4-inch octagon steel outlet boxes. Constructed from steel, this 1-1/2-inch deep extension ring measures 4-inch x 4-inch. It features two 1/2-inch and two 3/4-inch side knockouts and a fixture bar hanger. The fixture rated extension ring has a capacity of 15.5 cubic inches and is UL listed.

• Perfect for use with 4-Inch octagon steel outlet box
• 1-1/2-Inch deep extension ring
• Steel construction

Product Highlights

This steel octagon extension ring is ideal for installing ceiling or wall lighting fixtures or as a junction box.

Product Information

Standard Information

• Brand: CROUSE HINDS
• Manufacturer Part Number: TP286
• Country of Origin: United States of America

Technical Specifications

• Knockouts Size: (2) 1/2-Inch and (2) 3/4-Inch Side
• Depth: 1-1/2-Inch
• Construction: Steel
• Capacity: 15.5-Cubic-Inch
• Rating: Fixture rated
• Listing: UL listed
• Material: Steel
• Size: 4 Inch x 4 Inch
• Shape: Octagonal
• Number of Knockouts: 4.0000
• Mounting: Slot and Key Permit without Removing Box Screw
• Cubic Capacity: 15.5
• Item Name: Extension Ring
• UPC: 78618910286
• Manufacturer Name: Cooper Crouse-Hinds
• Manufacturer Part Number: TP286
• Brand Name: Crouse-Hinds
• Country Of Origin: United States of America
• UNSPSC: 39121320
• GTIN: 00786189102864
• Product Length/Depth: 4 in
• Product Height: 1.5 in
• Product Width: 4 in
• Product Type: Octagon outlet box
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• Box size: 4"
• Conduit/cable: Conduit (no clamps)
• Side knockouts: (2) 1/2 in, (2) 3/4 in
• Bottom Knockouts: (3) 1/2 in, (2) 3/4 in
• Type: Extension ring
• Special features: Fixture rated
• Length: 4 in
• Knockout Diameter: 1/2 in, 3/4 in
