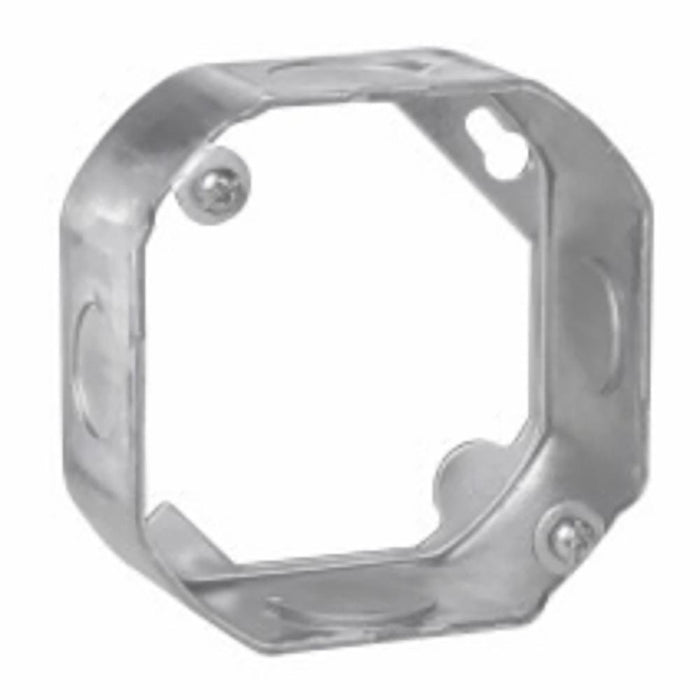

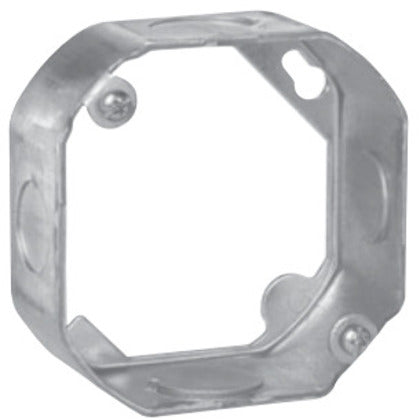

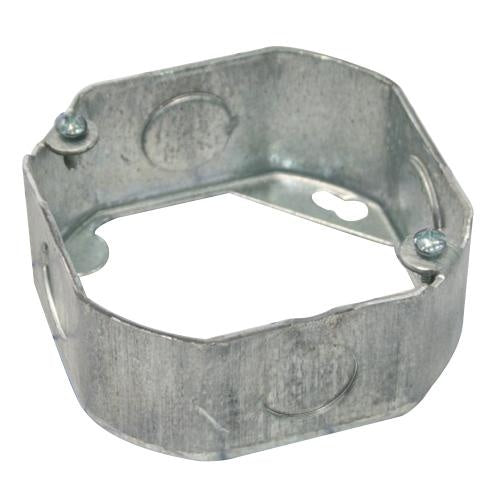

Crouse Hinds TP284 Steel Extension Ring 4-Inch x 4-Inch x 1-1/2-Inch

Product Description

The Crouse-Hinds TP284 steel extension ring is designed for use with 4-inch octagon steel outlet boxes. This 1-1/2-inch deep extension ring features steel construction and measures 4-inch x 4-inch. The fixture-rated extension ring has a capacity of 15.5 cubic inches and features four 1/2-inch side knockouts.

• Features steel construction
• Ideal for installing ceiling or wall lighting fixtures or as a junction box
• Variety of labor-saving mounting brackets allow for easy positioning of box along with studs or joists

Product Highlights

The Crouse-Hinds TP284 extension ring is UL listed and features a slot and key for easy mounting.

Product Information

Standard Information

• Brand: Crouse Hinds
• Manufacturer Part Number: TP284
• Country of Origin: United States of America

Technical Specifications

• Material: Steel
• Standards: UL Listed
• Size: 4 In Width X 1-1/2 In Depth X 4 In Height
• Shape: Octagonal
• Number of Knockouts: 4.0000
• Mounting: Slot and Key Permit without Removing Box Screw
• Knockouts: (4) 1/2 Inch Side
• Cubic Capacity: 15.5
• Depth: 1.5
• Item Name: Extension Ring
• UPC: 786189102840
• Manufacturer Name: Cooper Crouse-Hinds
• Manufacturer Part Number: TP284
• RoHS Flag: Contact manufacturer
• Brand Name: Crouse-Hinds
• Country Of Origin: United States of America
• Energy Star Flag: No
• UNSPSC: 39121320
• GTIN: 00786189102840
• Product Length/Depth: 4 in
• Product Height: 1.5 in
• Product Width: 4 in
• Product Weight: 0.36 lb
• Product Type: Octagon outlet box
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• Box size: 4"
• Capacity: 15.5 cubic in
• Conduit/cable: Conduit (no clamps)
• Side knockouts: (4) 1/2 in
• Type: Extension ring
• Special features: Fixture rated
• Applications: Octagon Outlet Box
• Cable Entry: Knockouts
• Standard: CSA,UL
• Sub Brand: Commercial Products
• Construction: Drawn
• MDM Pkg GTiN: 00786189102840
• Knockout Diameter: 1/2 in
• Cubic Inches: 15.500 in³
