Product Description

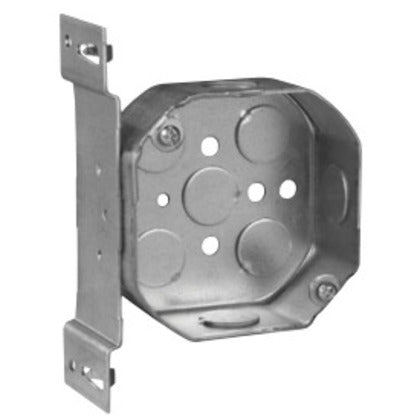

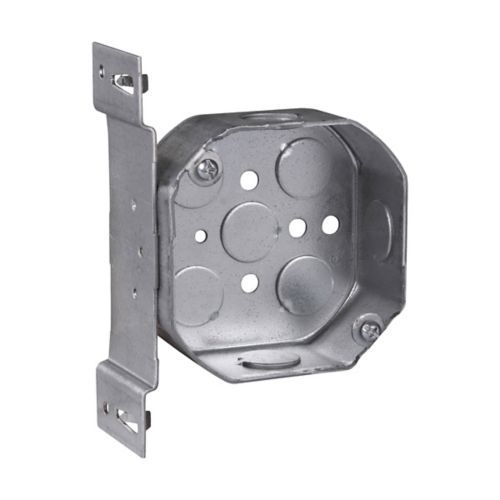

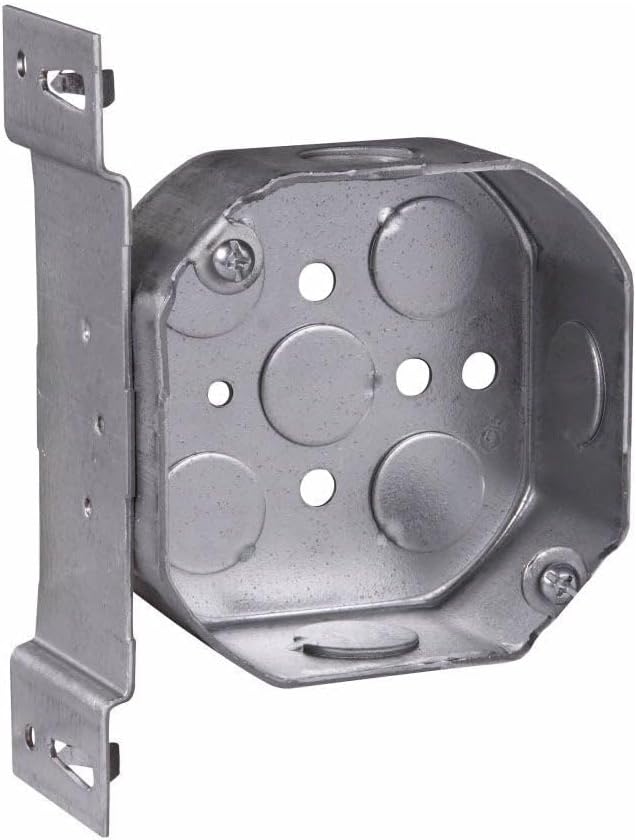

The Crouse-Hinds TP282 standard outlet box features steel construction for enhanced durability. This octagon box measures 4-Inch x 4-Inch x 1-1/2-Inch with a 15.5-Cubic-Inch capacity. It has three 1/2-Inch knockouts on the sides and five 1/2-Inch knockouts on the bottom. The box is 1/2-Inch setback S-bracket mountable and UL listed for use with conduit.
- Features steel construction for longer endurance
- Equipped with (3) 1/2-Inch Side and (5) 1/2-Inch Bottom knockouts
- Fixture bar hanger allows box to be located anywhere along length of bar
Product Highlights
The Crouse-Hinds TP282 is a durable steel outlet box with multiple knockouts and a fixture-rated design.
Product Information
Standard Information
-
Brand: CROUSE HINDS
-
Manufacturer Part Number: TP282
-
Country of Origin: United States of America
Technical Specifications
-
Material: Steel
-
Standards: UL 514A, 514B, 514C Listed
-
Type: Standard
-
Size: 4 Inch x 4 Inch
-
Shape: Octagonal
-
Number of Knockouts: 8.0000
-
Mounting: 1/2 Inch Setback S Bracket
-
Knockouts: (3) 1/2 Inch Side, (5) 1/2 Inch Bottom
-
Cubic Capacity: 15.5
-
Depth: 1.5
-
Item Name: Outlet Box
-
UPC: 78618910282
-
Manufacturer Name: Cooper Crouse-Hinds
-
Manufacturer Part Number: TP282
-
Brand Name: Crouse-Hinds
-
Country Of Origin: United States of America
-
UNSPSC: 39121308
-
GTIN: 00786189102826
-
Product Length/Depth: 4 in
-
Product Height: 1.5 in
-
Product Width: 4 in
-
Product Type: Octagon outlet box
-
Area classification: Ordinary/Non-Hazardous Locations
-
Standards type: NEC/CEC
-
Box size: 4"
-
Capacity: 15.5 cubic in
-
Conduit/cable: Conduit (no clamps)
-
Bracket style: S, Set 1/2"
-
Side knockouts: (3) 1/2 in
-
Bottom Knockouts: (5) 1/2 in
-
Special features: Fixture rated
-
Knockout Diameter: 1/2 in
-
Dimensions: 4 in W x 1-1/2 in D x 4 in H
-
Finish: Natural
-
Series: CP
-
Standard & Approvals: UL Listed, CSA Certified, RoHS Compliant
