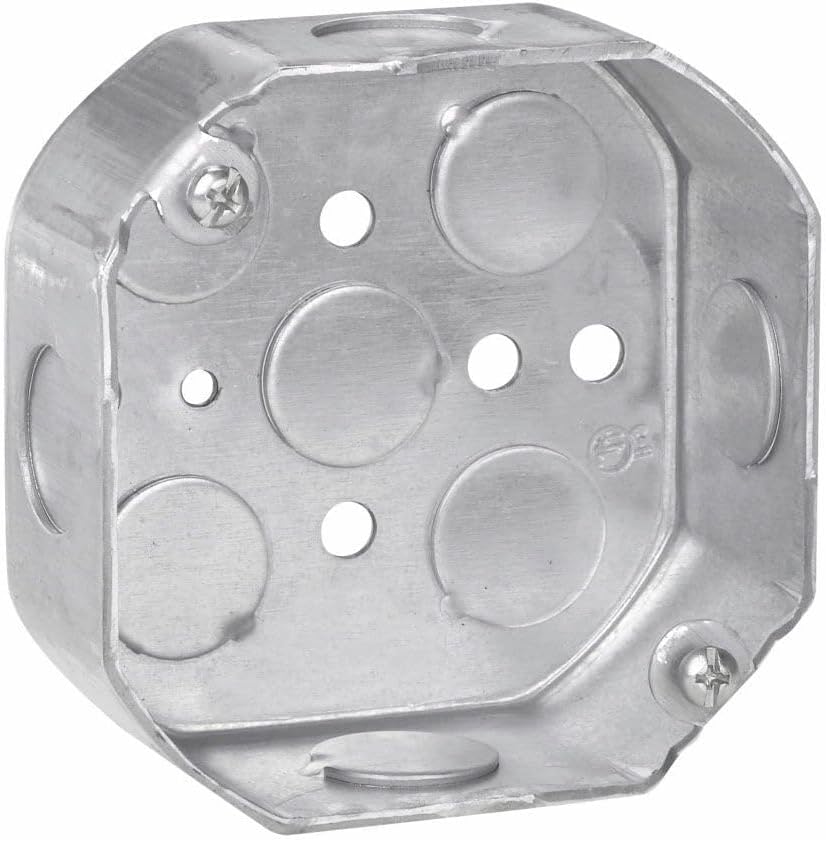

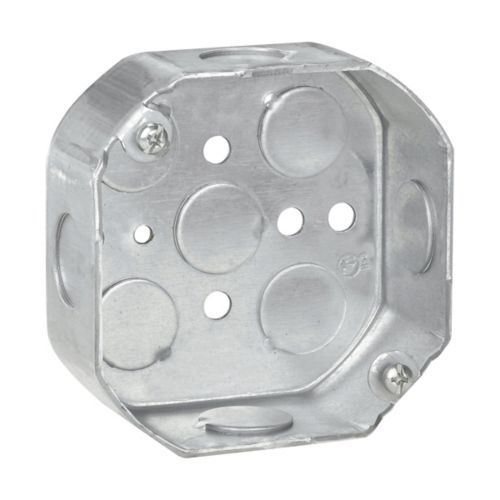

Crouse-Hinds TP278 Steel Standard Outlet Box 4-Inch x 4-Inch x 1-1/2-Inch

Product Description

The Crouse-Hinds TP278 standard outlet box features steel construction for longer endurance. This octagon box measures 4-Inch x 4-Inch x 1-1/2-Inch with a 15.5-cubic-inch capacity. It has two 1/2-Inch, two 3/4-Inch knockouts in sides, three 1/2-Inch and two 3/4-Inch knockouts in bottom. Suitable for use with conduit.

• Features steel construction
• Knockouts Size: (2) 1/2-Inch and (2) 3/4-Inch Side, (3) 1/2-Inch and (2) 3/4-Inch Bottom
• Fixture bar hanger concedes box to be located anywhere along length of bar

Product Highlights

The Crouse-Hinds TP278 outlet box is UL listed and fixture rated. Labor-saving mounting bracket ensures easy positioning of box along studs or joists.

Product Information

Standard Information

• Brand: CROUSE HINDS
• Manufacturer Part Number: TP278
• Country of Origin: United States of America

Technical Specifications

• Material: Steel
• Standards: UL 514A, 514B, 514C Listed
• Type: Standard
• Size: 4 Inch x 4 Inch
• Shape: Octagonal
• Number of Knockouts: 9.0000
• Knockouts: (2) 1/2 Inch and (2) 3/4 Inch Side, (3) 1/2 Inch and (2) 3/4 Inch Bottom
• Cubic Capacity: 15.5
• Depth: 1.5
• Item Name: Outlet Box
• UPC: 786189102789
• Manufacturer Name: Cooper Crouse-Hinds
• Manufacturer Part Number: TP278
• Brand Name: Crouse-Hinds
• Country Of Origin: United States of America
• UNSPSC: 39121308
• GTIN: 00786189102789
• Product Type: Octagon outlet box
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• Box size: 4"
• Capacity: 15.5 cubic in
• Conduit/cable: Conduit (no clamps)
• Side knockouts: (2) 1/2 in, (2) 3/4 in
• Bottom Knockouts: (3) 1/2 in, (2) 3/4 in
• Special features: Fixture rated
• Finish Type: Powder Coated
