Crouse Hinds TP267 Steel Ceiling Fixture Pan 4-Inch x 1/2-Inch 6-Cubic-Inch

Product Description

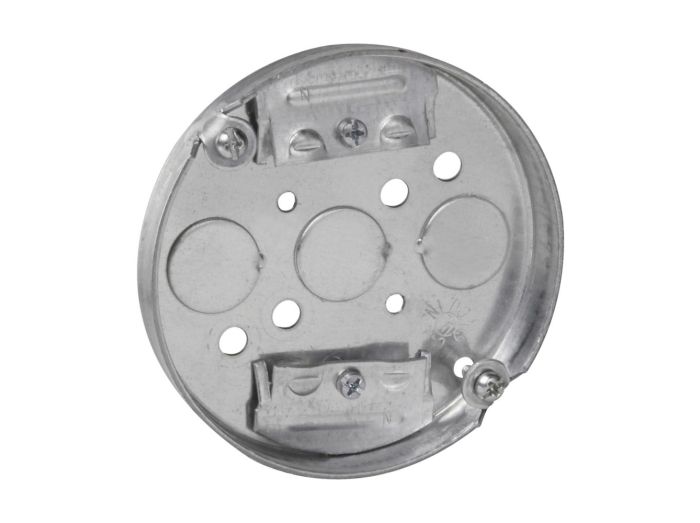

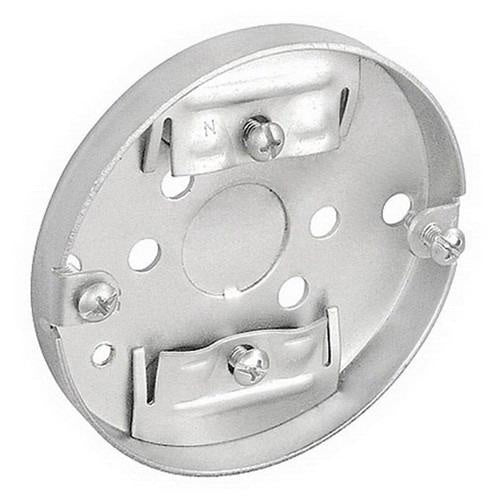

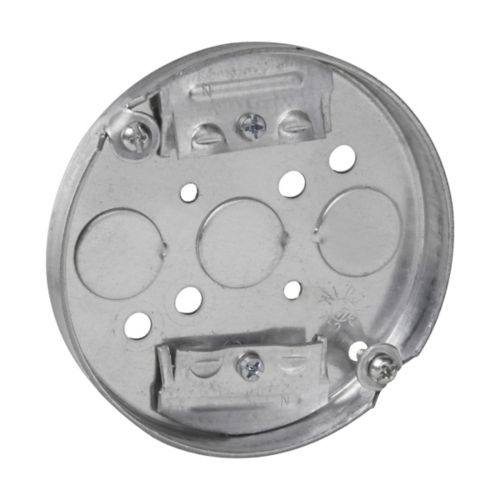

The Crouse-Hinds TP267 ceiling fixture pan has a maximum capacity of 6 cubic inches. This round-shaped fixture pan features steel construction and measures 4 inches x 1/2 inches. It has four cable end knockouts and three 1/2-inch knockouts at the bottom and includes clamps. It is suitable for ceiling or wall lighting fixture installation or as a junction box.

• Features steel construction
• Knockouts Size: (4) Cable End, (3) 1/2-Inch Bottom
• Weight limit for 3-1/4-Inch and 4-Inch octagon outlet boxes and ceiling pans are 50 lb for fixture/luminaire

Product Highlights

The Crouse-Hinds TP267 steel ceiling fixture pan is UL listed and features knockouts and a clamp for easy installation.

Product Information

Standard Information

• Brand: CROUSE HINDS
• Manufacturer Part Number: TP267
• Country of Origin: United States of America

Technical Specifications

• Material: Steel
• Standards: UL 514A, 514B, 514C Listed
• Size: 4 Inch
• Shape: Round
• Number of Knockouts: 7.0000
• Knockouts: (4) Cable End, (3) 1/2 Inch Bottom
• Cubic Capacity: 6
• Depth: 0.5 "
• Item Name: Ceiling Fixture Pan
• Includes: Clamp
• Manufacturer Name: Cooper Crouse-Hinds
• Manufacturer Part Number: TP267
• Brand Name: Crouse-Hinds
• Country Of Origin: United States of America
• UNSPSC: 39121317
• Product Length/Depth: 4 in
• Product Height: 0.5 in
• Product Width: 4 in
• Product Type: Round ceiling pan
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• Box size: 4"
• Capacity: 6 Cubic Inches
• Cable knockouts: 4
• Bottom Knockouts: (3) 1/2 in
• Built-in clamps: Yes
• Special features: Fixture rated
• Product Series: CP
• Description: Eaton Crouse-Hinds series Round Ceiling Pan, 3 1/2, 4, Yes, 4, 1/2, Steel, Fixture rated, 6.0 cubic inch capacity
• Box Type: Round Ceiling Pan
• Composition: Steel
• Clamp Type: Non-Metallic Cable
• Weight Limit: 50 lbs Fixture
• Mounting: Screws
• Set Back: None
• Stud Spacing: N/A
