Crouse-Hinds TP246 Steel 1-Gang Gangable Switch Box 2 Inch x 3 Inch x 3-1/2 Inch 18 Cubic-Inch

Product Description

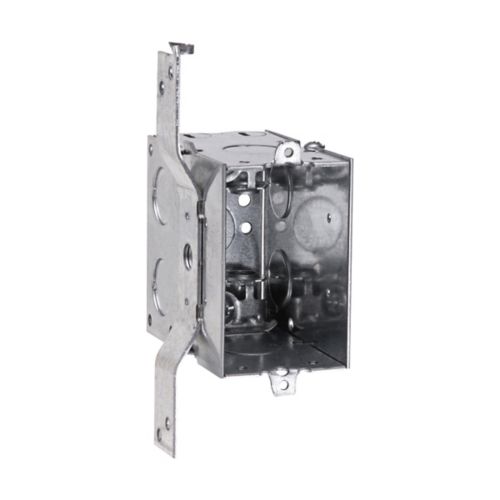

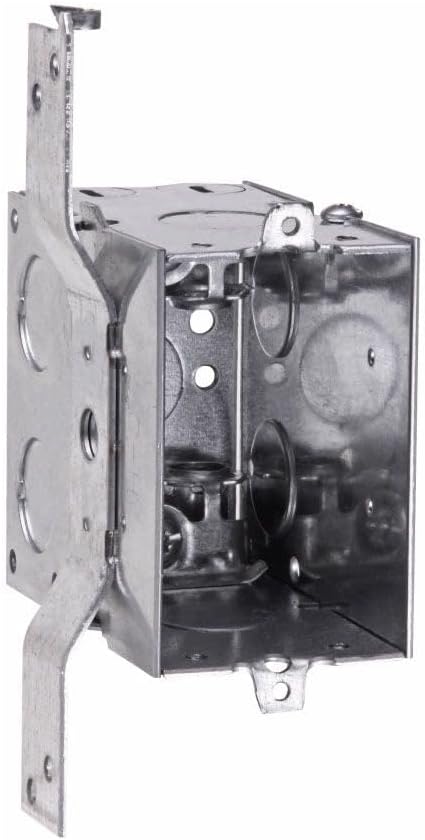

The Crouse-Hinds TP246 1-Gang Gangable switch box features steel construction. It has two cable, one 1/2-Inch knockout in each end, two 1/2-Inch knockouts in each side and one 1/2-Inch knockout in bottom. The rectangular box measures 2-Inch x 3-1/2-Inch x 3-Inch with a capacity of 18-Cubic-Inch. This box is 7/8-Inch setback S bracket mountable and is suitable for armored and metal clad (MCI) cable.

• Knockouts Size: (2) Cable and (1) 1/2-Inch Each End, (2) 1/2-Inch Each Side, (1) 1/2-Inch Bottom
• Suitable for armored and metal clad (MCI) cable
• Has maximum capacity of 18-Cubic-Inch

Product Highlights

The Crouse-Hinds TP246 switch box is constructed of steel and is suitable for armored and metal clad (MCI) cable. It has a maximum capacity of 18-Cubic-Inch.

Product Information

Standard Information

• Brand: CROUSE HINDS
• Manufacturer Part Number: TP246
• Country of Origin: United States of America

Technical Specifications

• Material: Steel
• Standards: UL 514A, 514B, 514C Listed
• Type: Gangable
• Shape: Rectangular
• Number of Knockouts: 6.0000
• Number of Gangs: 1.0000
• Mounting: 7/8 Inch Setback S Bracket
• Knockouts: (2) Cable and (1) 1/2 Inch Each End, (2) 1/2 Inch Each Side, (1) 1/2 Inch Bottom
• Cubic Capacity: 18
• Depth: 3.5
• Item Name: Switch Box
• Includes: Clamps in Each End
• Manufacturer Name: Cooper Crouse-Hinds
• Manufacturer Part Number: TP246
• Brand Name: Crouse-Hinds
• Country Of Origin: United States of America
• UNSPSC: 39121308
• Product Type: Switch box
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• Capacity: 18 cubic in
• Conduit/cable: AC/MC clamps
• Bracket style: S, Set 7/8"
• End Knockouts: (1) 1/2 in
• Side knockouts: (2) 1/2 in
• Bottom Knockouts: (1) 1/2 in
• Cable knockouts: 2
• Style: Compact
• Finish Type: Steel
• Installation Type: Bracket Mount
• Specification Met: Ul
