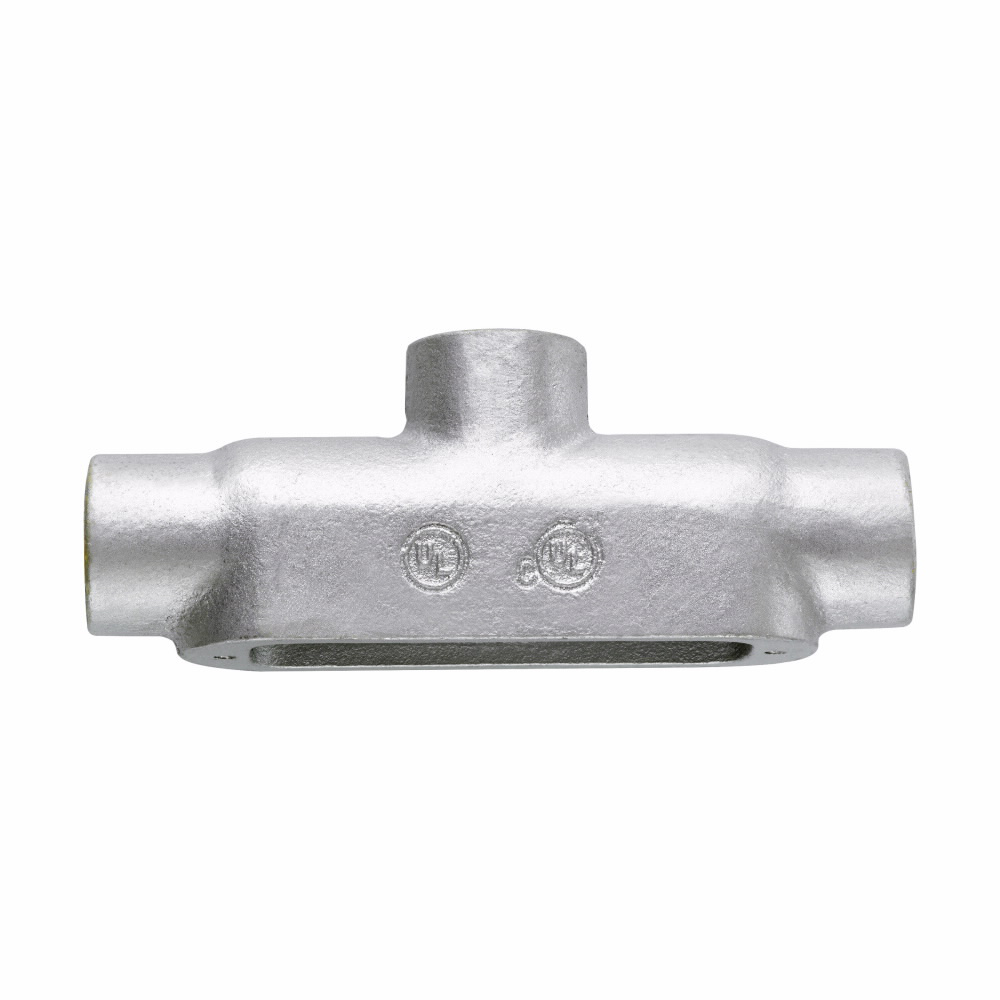

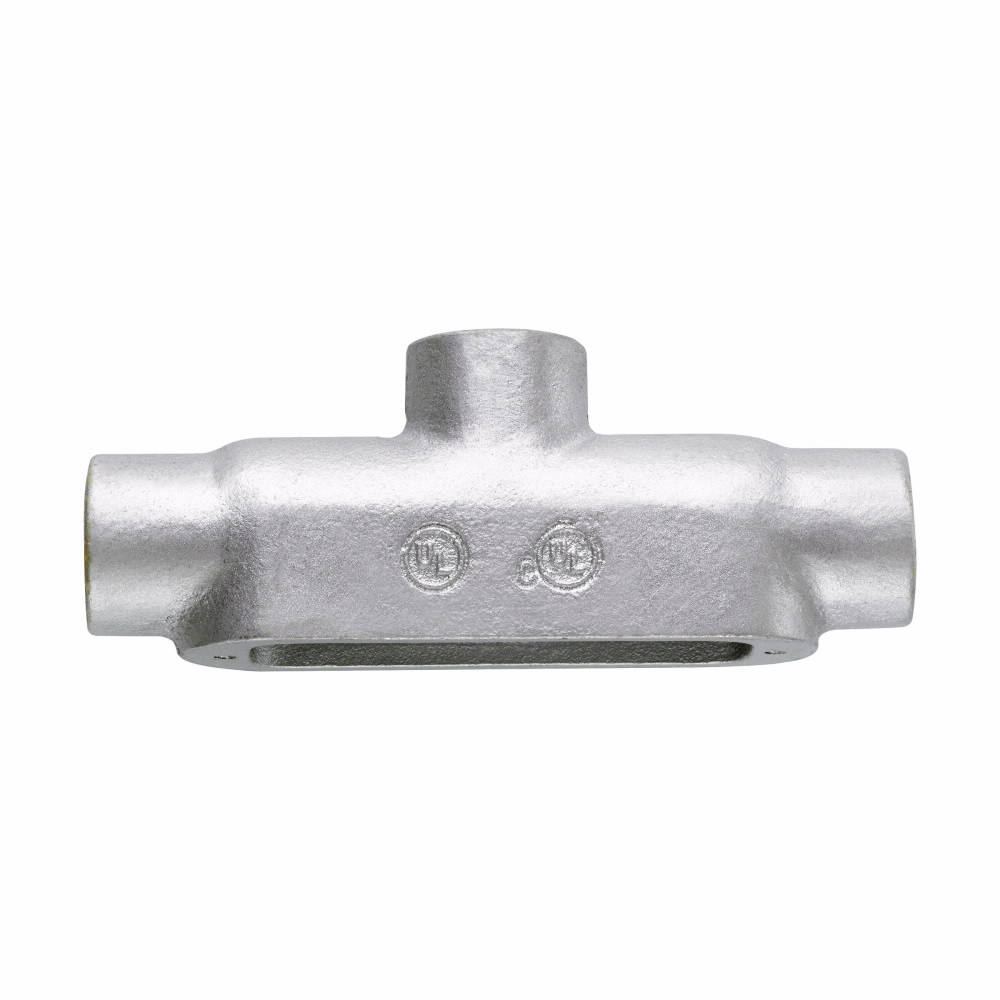

Crouse Hinds TB50M Malleable Iron Type TB Conduit Outlet Body 1/2-Inch Condulet

Product Description

The Crouse-Hinds TB50M Condulet Type TB Form 5 conduit outlet body features malleable iron construction with an electro-galvanized aluminum acrylic paint finish. It has a trade size of 1/2-Inch and a 6-Cubic-Inch capacity. This NEMA 3R rated conduit outlet body with threaded connection, comes with a screw-on cover and is useful on rigid conduit. It acts as a pull outlet for conductor installation.

• Features malleable iron construction
• Has trade size of 1/2-Inch
• Measures 5.38-Inch x 1.34-Inch x 2.05-Inch

Product Highlights

The Crouse-Hinds TB50M is a 1/2-inch malleable iron conduit outlet body, NEMA 3R rated, with a screw-on cover, ideal for rigid conduit applications.

Product Information

Standard Information

• Brand: Crouse Hinds
• Manufacturer Part Number: TB50M
• Country of Origin: China

Technical Specifications

• Trade Size: 1/2 Inch
• Standards: UL 514B Listed, CSA C22.2 No.18, Federal Specification: W-C-586D
• Conduit Body Style: Type TB
• Conduit Body Form: Form 5
• Sub Brand: Condulet®
• NEMA Rating: NEMA 3R
• Number of Hubs: 3.0000
• Cover Type: Screw-On
• Access: Back Side
• Brand Name: Crouse-Hinds
• Connection Type: Threaded
• Cubic Capacity: 6
• Material: Malleable Iron
• Finish: Electrogalvanized with Aluminum Acrylic Painted
• For Use With: Rigid Conduit
• Hub Placement: Tee
• Item Name: Conduit Outlet Body
• Manufacturer Part Number: TB50M
• Product Type: Conduit outlet body
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• Shape: TB
• Applications: Rigid/IMC Conduit
• Enclosure: Condulet
• Form Type: 5
• Hub Size: 0.5 in
• Type: TB
• No. of Hubs: 3 Hub
• ECCN: EAR99
