Crouse Hinds TB125M Malleable Iron TB Style Conduit Body 1-1/4-Inch

Product Description

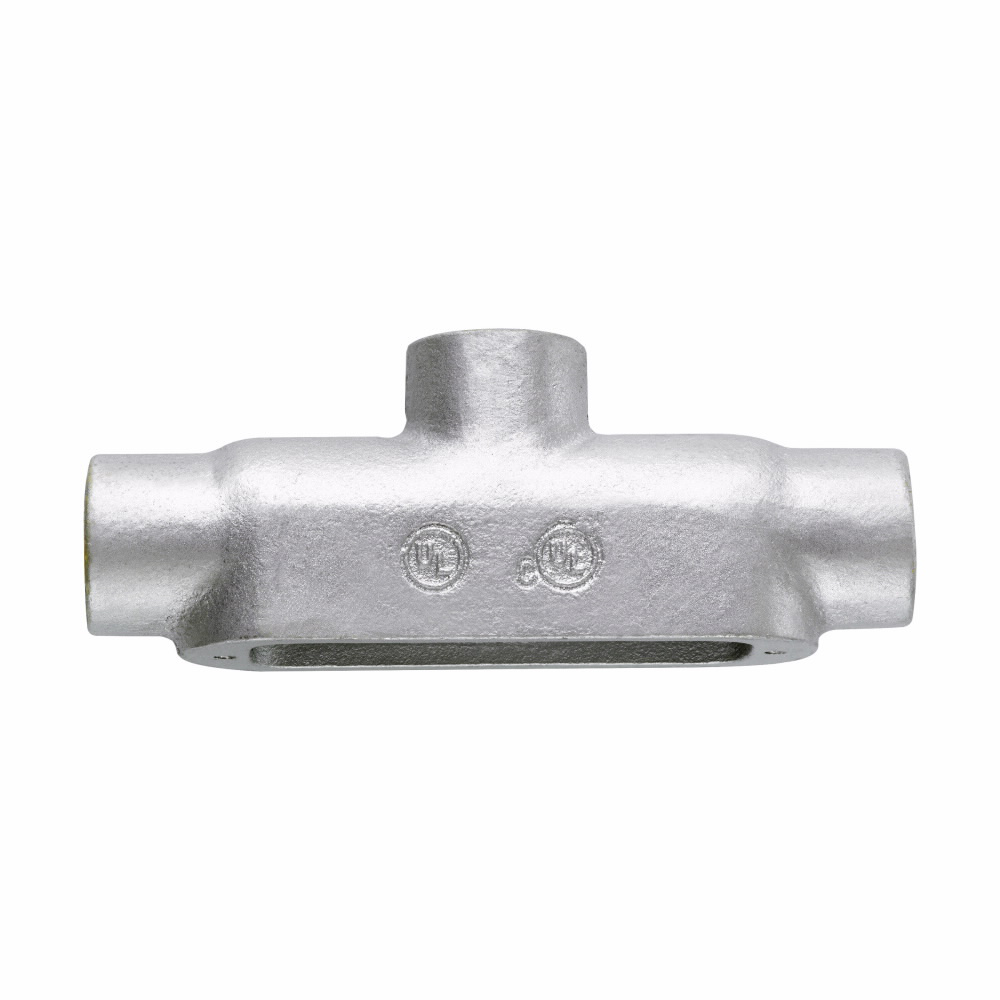

The Crouse-Hinds TB125M is a Condulet® Type TB Form 5 conduit body constructed from malleable iron with an electrogalvanized/aluminum acrylic paint finish. This 1-1/4-inch threaded conduit body features back access and three tee placed hubs with tapered threads and integral bushings. It is NEMA 3R rated and measures 9-Inch x 2.6-Inch x 2.75-Inch.

• Connects conduit sections
• Provide taps for branch conduit runs
• Offers easy threaded installation

Product Highlights

This conduit body provides openings for making splices and taps in conductors and features built in rollers to facilitate easy wire pulling.

Product Information

Standard Information

• Brand: Crouse Hinds
• Manufacturer Part Number: TB125M
• Country of Origin: China

Technical Specifications

• Trade Size: 1-1/4 Inch
• Standards: UL 514B Listed, CSA 22.2 No.18 Certified, Federal Specification: W-C-586D
• Conduit Body Style: Type TB
• Conduit Body Form: Form 5
• Sub Brand: Condulet®
• NEMA Rating: NEMA 3R
• Number of Hubs: 3.0000
• Cover Type: Screw-On
• Access: Back Side
• Brand Name: Crouse-Hinds
• Connection Type: Threaded
• Material: Malleable Iron
• Finish: Electrogalvanized with Aluminum Acrylic Painted
• For Use With: Rigid Conduit
• Hub Placement: Tee
• Item Name: Conduit Body
• Manufacturer Part Number: TB125M
• UPC: 782274756615
• Manufacturer Name: Cooper Crouse-Hinds
• GTIN: 00782274756615
• UNSPSC: 39131708
• Product Type: Conduit outlet body
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• Shape: TB
• Applications: Rigid/IMC Conduit
• Enclosure: Condulet
• Form Type: 5
• Hub Size: 1.25 in
• Type: TB
• Form: Form 5
