Crouse Hinds TB100M Type TB Conduit Outlet Body 1-Inch

Product Description

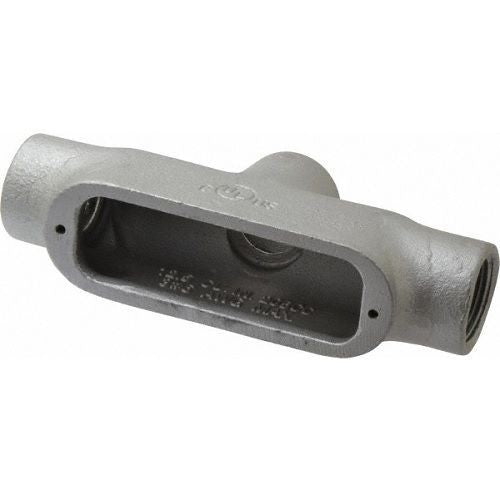

The Crouse-Hinds TB100M is a type TB Form 5 conduit outlet body constructed from malleable iron with an electro-galvanized aluminum acrylic paint finish. With a trade size of 1-Inch and 15-Cubic-Inch capacity, this NEMA 3R rated conduit outlet body has a threaded connection and comes with a screw-on cover. It is suitable for rigid conduit and acts as pull outlets for conductor installation.

• Features malleable iron construction
• Has trade size of 1-Inch
• Measures 7.05-Inch x 1.8-Inch x 2.65-Inch

Product Highlights

The Crouse-Hinds TB100M conduit outlet body is ideal for connecting conduit sections, making 90-degree bends, and providing access to conductors for maintenance.

Product Information

Standard Information

• Brand: Crouse Hinds
• Manufacturer Part Number: TB100M
• Country of Origin: China

Technical Specifications

• Form: Form 5
• Type: Type TB
• Width: 1.8 in
• Finish: Electrogalvanized with Aluminum Acrylic Painted
• Height: 2.65 in
• Length: 7.05 In
• Hub Size: 1 in
• Material: Malleable Iron
• Standard: UL 514B Listed, CSA C22.2 No.18, Federal Specification: W-C-586D
• Enclosure: Condulet
• Sub Brand: Crouse-Hinds series
• Application: Commercial / Institutional Buildings / Structures - Commercial / Institutional B
• Family group: FITTINGS
• Manufacturer: CROUSE HINDS
• Trade Size: 1 Inch
• NEMA Rating: NEMA 3R
• Number of Hubs: 3
• Cover Type: Screw-On
• Access: Back Side
• Conductor Capacity: 6 AWG
• Connection Type: Threaded
• Cubic Capacity: 15
• For Use With: Rigid Conduit
• Hub Placement: Tee
• Item Name: Conduit Outlet Body
• Country Of Origin: China
• Manufacturer Part Number: TB100M
• UPC: 78227475660
• Manufacturer Name: Cooper Crouse-Hinds
• GTIN: 00782274756608
• UNSPSC: 39131708
• Standard & Approvals: ARRA, Buy American Act, RoHS Compliant, UL 514B, cUL Listed, CSA C22.2 No.18, NEC/CEC Certified
• Capacity: 15
• Brand: Condulet
