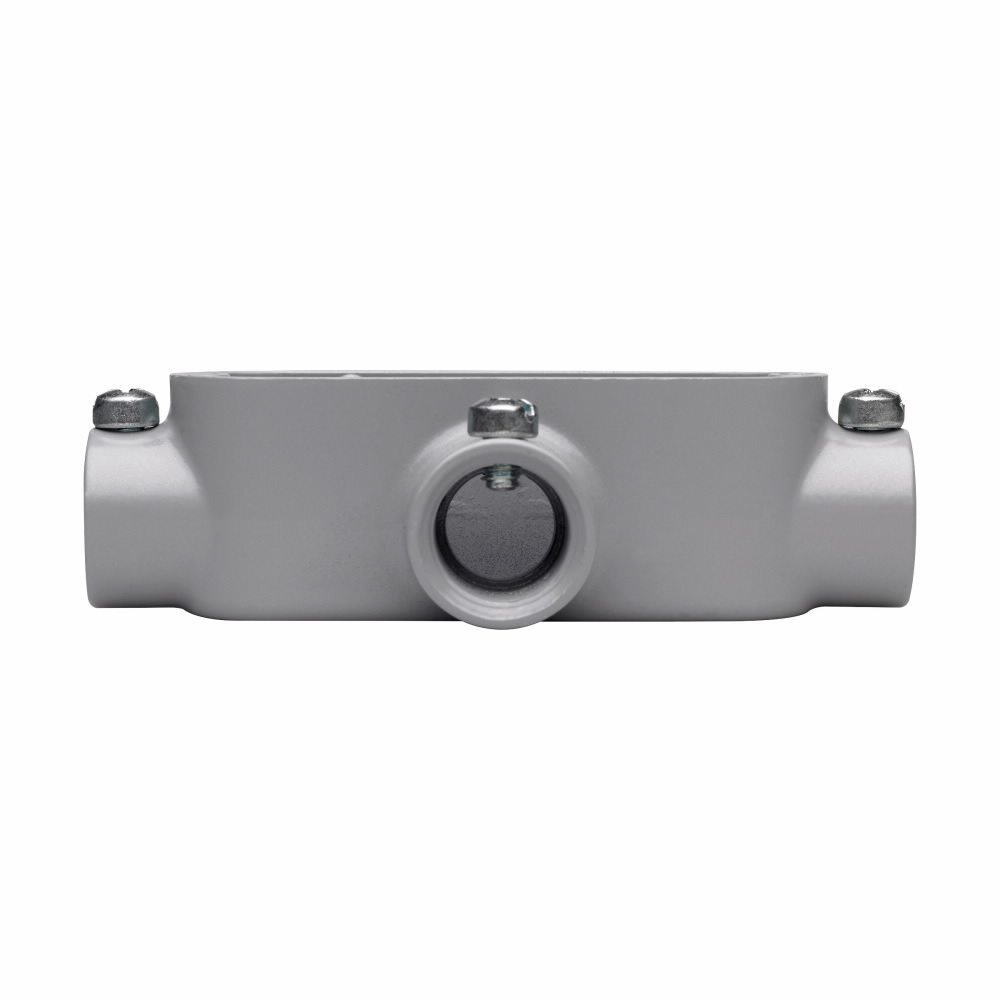

Crouse-Hinds T65CGN Condulet Type T Conduit Outlet Body With Cover and Neoprene Gasket 2 in Hub

Product Description

The Crouse-Hinds T65CGN is a conduit outlet body made by Eaton, designed for use with rigid or EMT conduit. This product features die-cast copper-free aluminum construction, ensuring durability and corrosion resistance. The outlet body includes a traditional cover and neoprene gasket, providing a secure seal. It is built for a two-inch hub size and has a capacity of sixty-seven cubic inches.

• Die-cast aluminum body.
• Includes cover and gasket.
• Compatible with Threaded/Set Screw connections.

Product Highlights

This conduit outlet body is suitable for a variety of applications, including commercial and institutional buildings. It acts as a pull outlet for conductors and provides openings for making splices and taps in conductors.

Product Information

Standard Information

• Manufacturer: Eaton Crouse-Hinds
• Catalog Number: T65 CGN

Technical Specifications

• Material: Die Cast Copper-Free Aluminum
• Hub Size: 2 in
• Capacity: 67 cu-in
• Dimensions: 10.71 in L x 3.1 in W x 3.41 in H
• Connection Type: Threaded / Set Screw
• Standards: UL, cUL Listed, NEC/CEC Certified
• Color: Gray
• Finish: Epoxy Powder Coated
