Crouse-Hinds T39 Conduit Outlet Body Type T 1 in Hub Mark 9 15 cu-in

Product Description

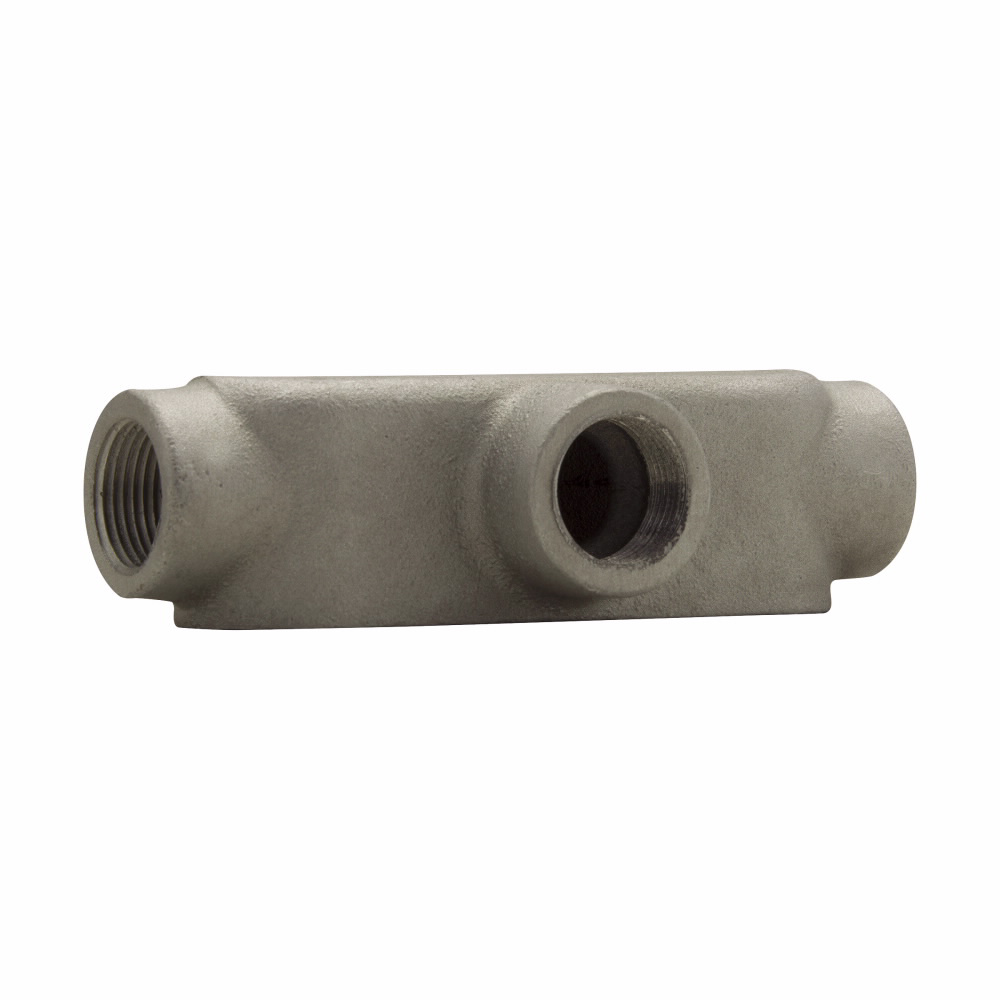

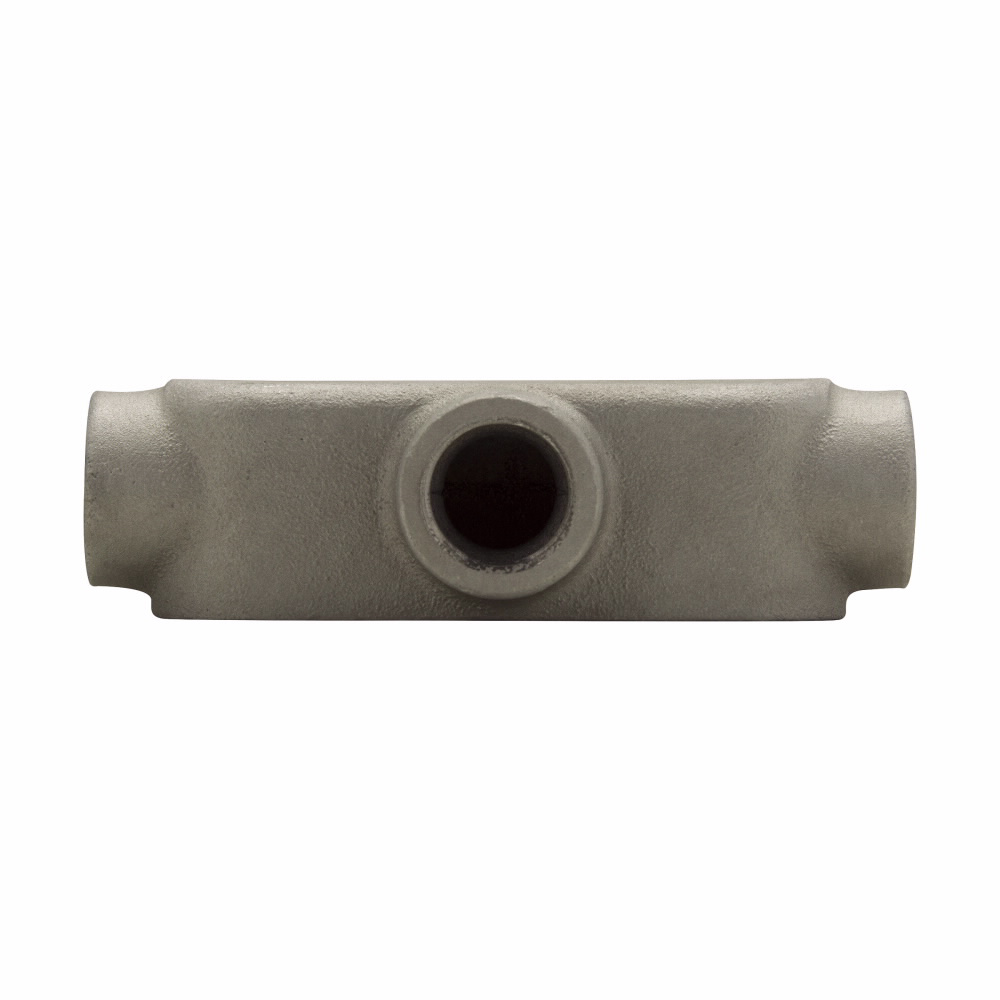

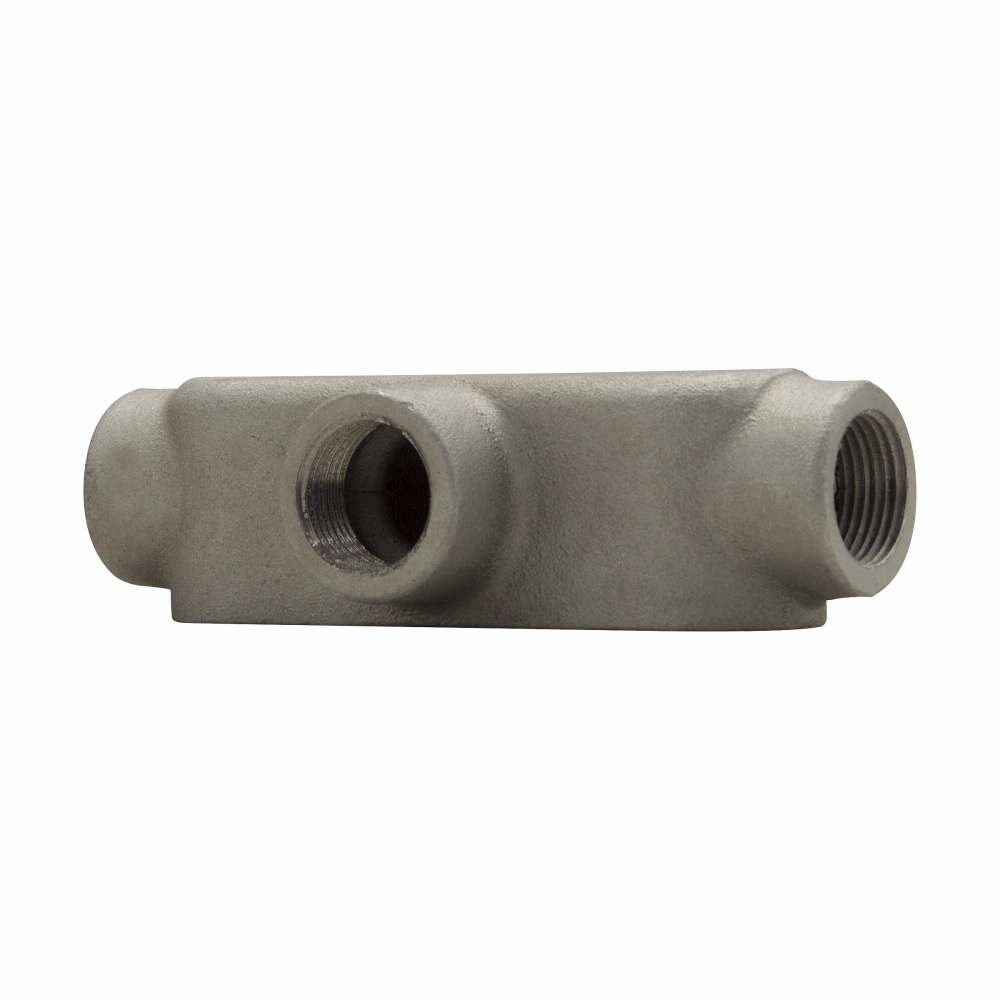

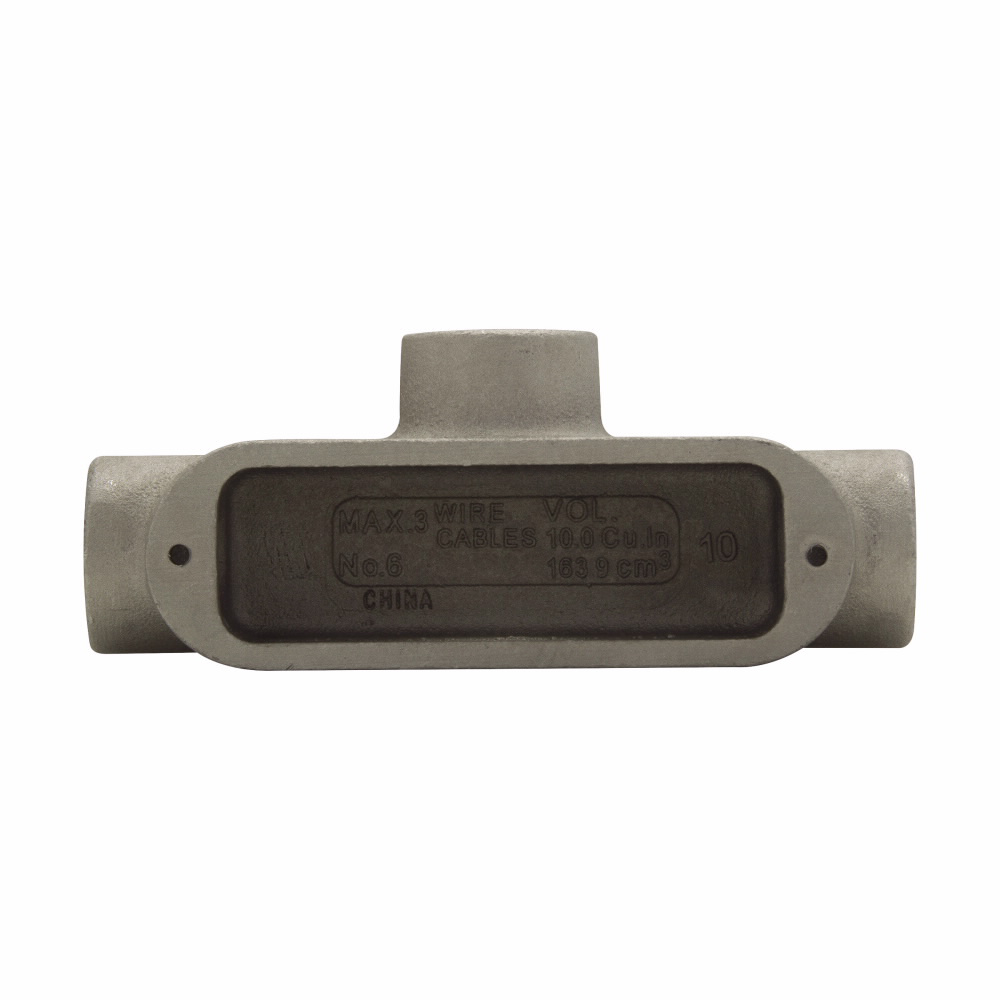

The Crouse-Hinds T39 is a conduit outlet body designed for Rigid Conduit systems. This product features a one inch hub and a Mark 9 design, allowing for seamless connections in electrical installations. It is made from copper-free aluminum, ensuring durability and compliance with standard electrical codes.

• Manufactured from copper-free aluminum
• One inch hub size
• Conduit hub features tapered threads for secure connections

Product Highlights

This T39 conduit body is shaped to facilitate efficient pull-out and tap arrangements for conductors. It is suitable for branch conduit runs and can accommodate 90-degree bends in wiring paths.

Product Information

Standard Information

• Brand: Crouse-Hinds
• Application: Rigid Conduit

Technical Specifications

• MPN: T39
• Material: Copper-Free Aluminum
• Dimensions: Six and nineteen thirty-seconds inches length, two and five-eighths inches width, one and seven-eighths inches height
• Hub Size: One inch
• Capacity: Fifteen cubic inches
• Enclosure: NEMA 3R
• Compliance: ARRA, Buy American Act, RoHS Compliant, UL 514B
