Crouse-Hinds STAG6 Ground Hub 2-Inch

Product Description

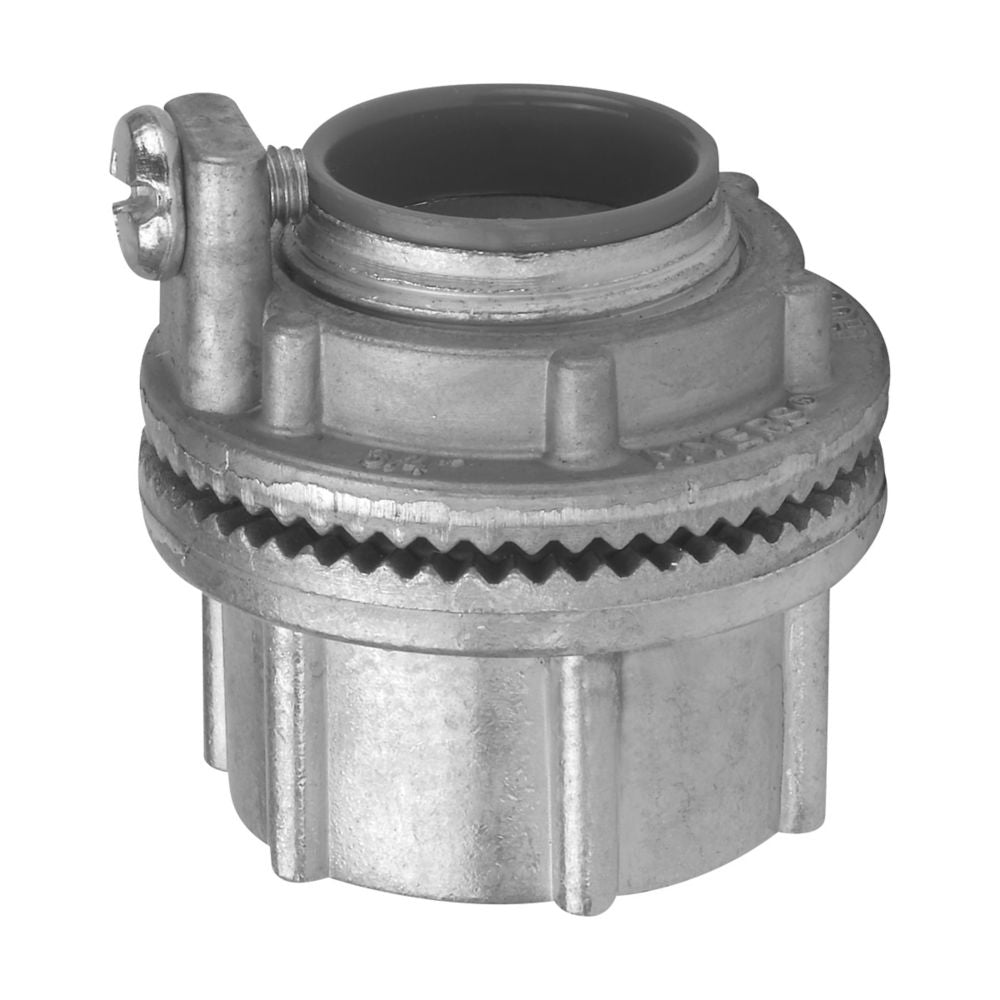

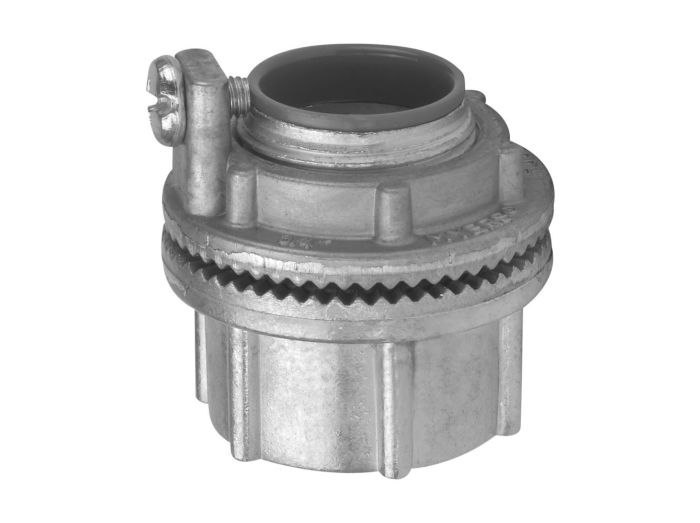

The Crouse-Hinds STAG6 is a Myers™ liquidtight insulated ground hub with aluminum construction for strength and durability. With a trade size of 2-inches, this ground hub provides both male NPSM threaded and tapered female threaded connection for tight fitting. It is suitable for use with rigid/IMC conduit.

• Combines the features of Hub Basic Scru-Tite® plus the additional features of the grounding screw on the locknut
• Ideal for terminating electrical conduit through the walls of enclosures
• Offers resistance to chemicals including acetic, citric and salt water

Product Highlights

The ground hub is perfect for terminating electrical conduit through enclosure walls and offers resistance to chemicals. It meets cUL, CSA, NEC/CEC, IEC, NEMA and IP66 standards.

Product Information

Standard Information

• Brand: CROUSE HINDS
• Manufacturer Part Number: STAG6
• Country of Origin: China

Technical Specifications

• Fitting Type: Hub
• Standards: UL E59509 Listed, CSA C22.2 No.18 Certified, NEC/CEC: Class I, Division 2, Class II, Divisions 1 and 2, Class III, Divisions 1 and 2, Class I, Zone 1, AEx e II, Class I, Zone 1, Ex e II, IEC: ATEX Certified to EN60079-0:2009, EN60079-7:2007, EN60079-14 Standard, ATEX Certified ITS12ATEX47591X II 2G Ex e IIC Gb Ta (-15 to 120 deg C), IECEx Certified IECEX ETL 12.0009X to IEC 60079-0:2007-10, Edition 5 and IEC 60079-7:2006-07, Edition 4 IECEx-Ex e II Gb Ta (-15 to 120 deg C), NEMA 2, 3, 3R, 4, 4X and 12, IP66 Rated
• Type: Liquidtight, Straight, Insulated
• Trade Size: 2 Inch
• Sub Brand: Myers™
• Brand Name: Crouse-Hinds
• Connection Type: Male NPSM Threaded x Tapered Female Threaded
• Finish: Natural
• Material: Aluminum
• For Use With: Rigid/IMC Conduit
• Item Name: Ground Hub
• UPC: 78473110110
• Manufacturer Name: Cooper Crouse-Hinds
• Manufacturer Part Number: STAG6
• Feature8: Suitable for use in pharmaceutical, chemical and food processing, pulp/paper, nuclear, solar and commercial construction applications
• GTIN: 00784731101105
• UNSPSC: 39131700
• Country Of Origin: China
• Product Length/Depth: 3.23 in
• Product Height: 3.23 in
• Product Width: 2.24 in
• Product Weight: 0.41 lb
• Product Type: Ground hub
• Area classification: Hazardous/Classified Locations
• Standards type: NEC/CEC
• NEC hazardous rating: Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
• NEMA Rating: 3 3R 4 4X 12
• Product Series: MYERS HUBS
• Family Series: Eaton's Crouse-Hinds series Fittings, MYERS HUBS Series
• Description: Eaton Crouse-Hinds series Myers ground hub, Aluminum, 2
• Conduit/Cable Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Angle: Straight
• Hub Size: 2 "
• Hub Type: Male NPSL Thread
• Grounding: Yes
• Insulated Throat: Yes
• Jacketed: No
• Composition: Metallic
• Protection Rating: Liquid Tight
• Hazardous Location: Yes
• Approvals: CSA, cUL, UL
• Dimensions (HxWxD): 3.23 in x 3.23 in x 2.24 in
