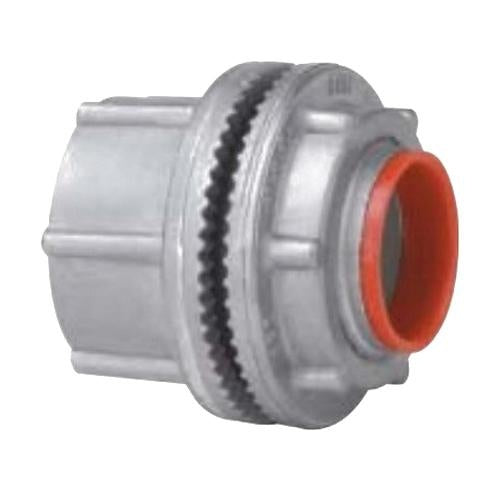

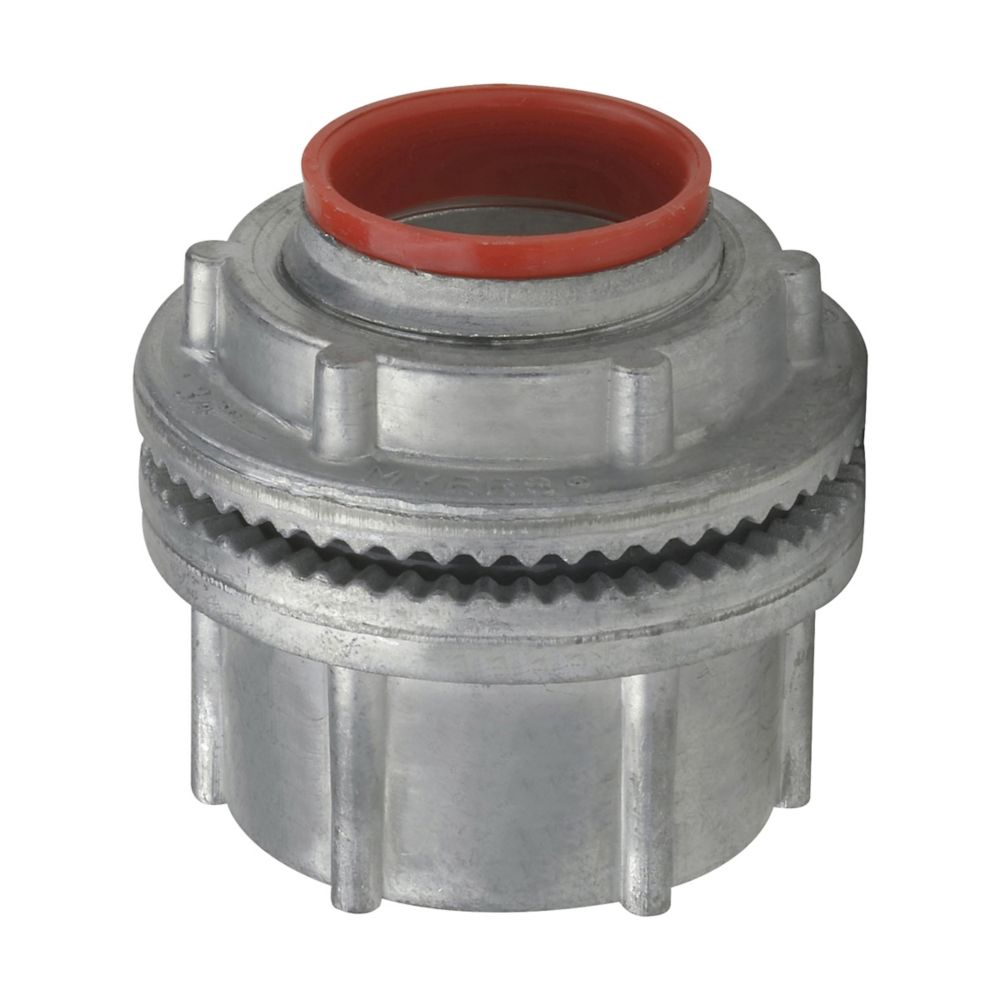

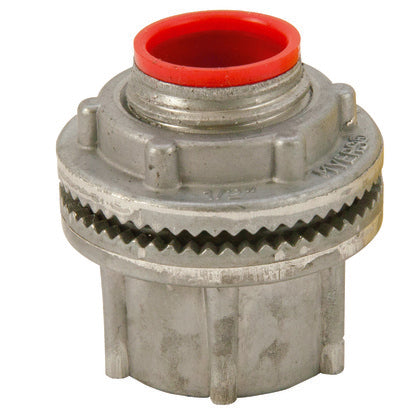

Crouse Hinds STA2 Hub 3/4-Inch Myers Scru-Tite

Product Description

The CROUSE HINDS STA2 Myers™ Scru-Tite® insulated hub with a trade size of 3/4-Inch, is suitable for use with rigid/IMC conduit. The insulated hub features aluminum construction with a natural finish and Lexan® insulation. It is suitable for terminating electrical circuits through enclosure walls in pharmaceutical, chemical, food processing, and commercial construction applications. Captive O-ring gasket ensures a water and dust-tight installation.

• Vibration-proof, strong and oversize nut with radial serrations ensures flush installation and positive grounding
• Grounding screw for added safety
• Precision machine cut NPT threads provide positive fit and makes installation simple

Product Highlights

The Crouse-Hinds STA2 insulated hub offers a reliable electrical ground and positive seal, simplifying installation and ensuring safety across diverse applications.

Product Information

Standard Information

• Brand: CROUSE HINDS
• Manufacturer Part Number: STA2
• Country of Origin: China

Technical Specifications

• Fitting Type: Hub
• Standards: UL 514B, E27258 Listed, cUL Certified, NEC/CEC: Class I, Division 2, Class II, Division 1 and 2, Class III, Division 1 and 2, Class I, Zone 1, AEx e II, Class I, Zone 1, Ex e II, CSA C22.2 No.18 Certified, IEC: ATEX Certified to EN60079-0:2009, EN60079-7:2007 and EN60079-14 Standard, ATEX Certified ITS12ATEX47591X II 2G Ex e IIC Gb Ta (-15 to120 deg C), IECEx Certified IECEX ETL 12.0009X to IEC 60079-0:2007-10, Edition 5 and IEC 60079-7:2006-07, Edition 4, IECEx-Ex e II Gb Ta (-15 to 120 deg C)
• Type: Insulated
• Trade Size: 3/4 Inch
• Sub Brand: Myers™ Scru-Tite®
• Brand Name: Crouse-Hinds
• Connection Type: Male NPSM x Female Threaded
• Finish: Natural
• Material: Aluminum
• For Use With: Rigid/IMC Conduit
• Insulation Material: Lexan
• Item Name: Hub
• UPC: 78473110016
• Manufacturer Name: Cooper Crouse-Hinds
• Manufacturer Part Number: STA2
• GTIN: 00784731100160
• UNSPSC: 39131700
• Country Of Origin: China
• Product Length/Depth: 1.67 in
• Product Height: 1.67 in
• Product Width: 1.49 in
• Product Weight: 0.11 lb
• Product Type: Basic hub
• Area classification: Hazardous/Classified Locations
• Standards type: NEC/CEC
• NEC hazardous rating: Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
• NEMA Rating: 3 3R 4 4X 12
