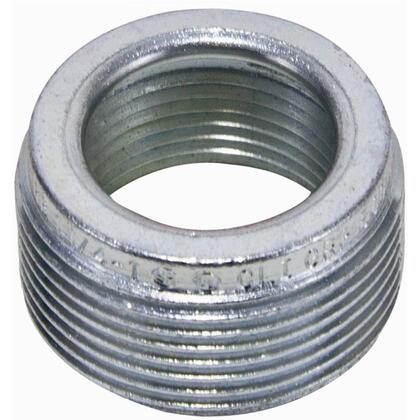

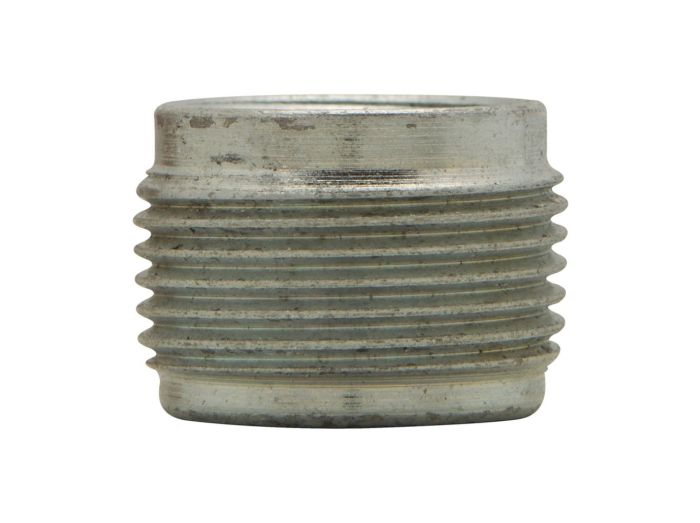

Crouse Hinds RE32SA reducer 1 to 3/4 inch

Product Description

The CROUSE HINDS RE32SA is a series RE reducer designed for rigid/IMC conduit systems. It reduces conduit hubs to a smaller size, featuring end 1 with 1" NPT and end 2 with 3/4" NPT. Constructed from copper-free aluminum, it is suitable for hazardous locations and threaded heavy wall conduit applications.

• Integral bushing to prevent wire damage
• Full clean cut tapered threads
• Steel or Iron Alloy Composition

Product Highlights

This reducer is ideal for hazardous/classified locations, meeting NEC/CEC standards and providing reliable performance in demanding environments.

Product Information

Standard Information

• Brand: CROUSE HINDS
• Manufacturer Part Number: RE32SA
• Country of Origin: USA

Technical Specifications

• Product Name: Eaton Crouse-Hinds series RE reducer
• Catalog Number: RE32 SA
• UPC: 782274101415
• Product Length/Depth: 1.29 in
• Product Height: 1.29 in
• Product Width: 0.92 in
• Product Type: Reducer
• Area classification: Hazardous/Classified Locations
• Standards type: NEC/CEC
• NEC hazardous rating: Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
• Conduit type: Rigid/IMC
• End 1 Size: 1"
• End 1 Type: NPT
• End 2 Size: 3/4"
• End 2 Type: NPT
• Material: Copper-free aluminum
• Manufacturer Part Number: RE32 SA
• Manufacturer: Eaton's Crouse-Hinds series
• Product Series: RE
• Description: Eaton Crouse-Hinds series RE reducer, Rigid/IMC, End 1: 1 NPT, End 2: 3/4 NPT, Copper-free aluminum
• Connection Type: Male/Female
• External Thread: 1 NPT
• Internal Thread: 3/4 NPT
• Composition: Metallic
• Hazardous Location: Yes
• Approvals: CSA, NEC/CEC, UL
• Applications: Threaded Heavy Wall Conduit
• Enclosure: Class I Div 1 2 Group A B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III
• Tc Connection: Threaded
• Brand: Crouse-Hinds
• Sub Brand: Reducer
• Diameter: 3/4 in, 1 in
