Product Description

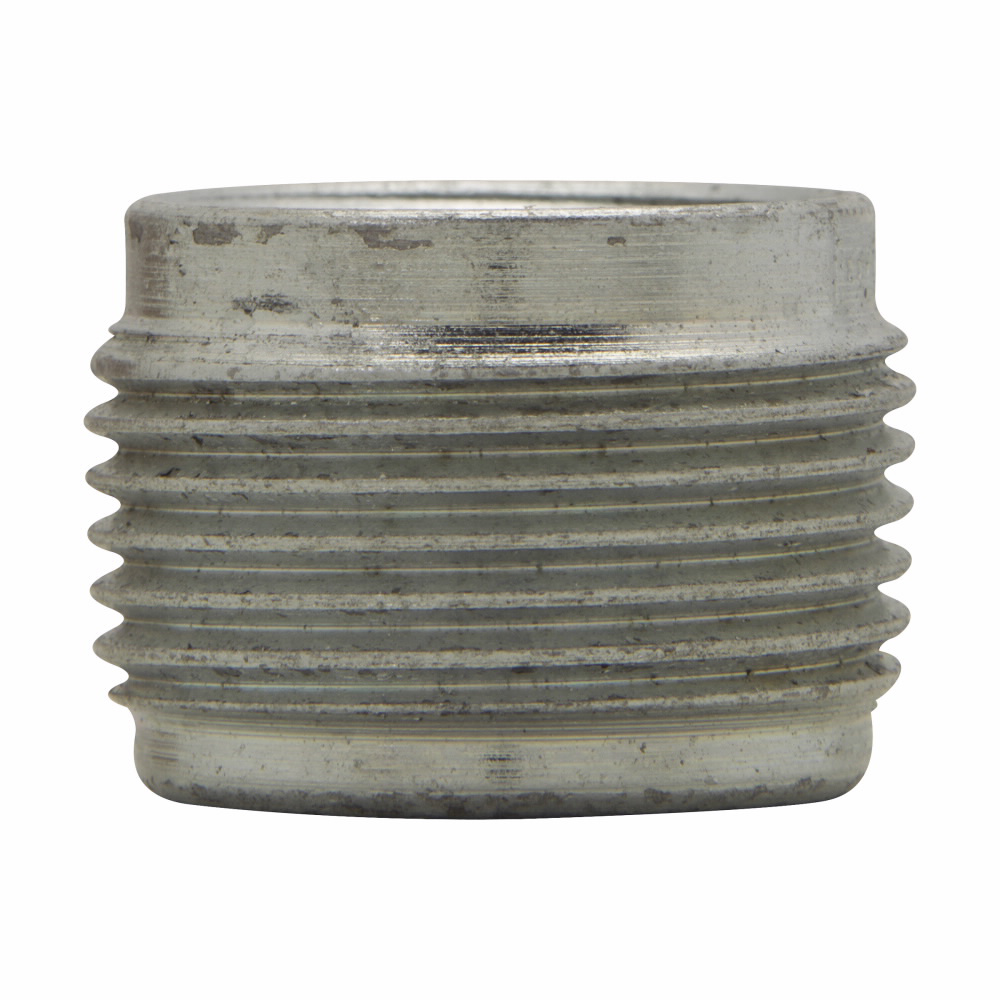

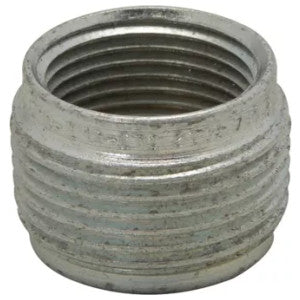

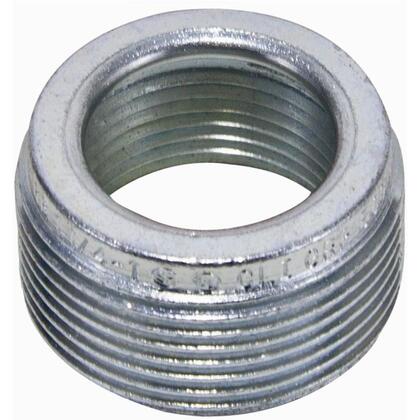

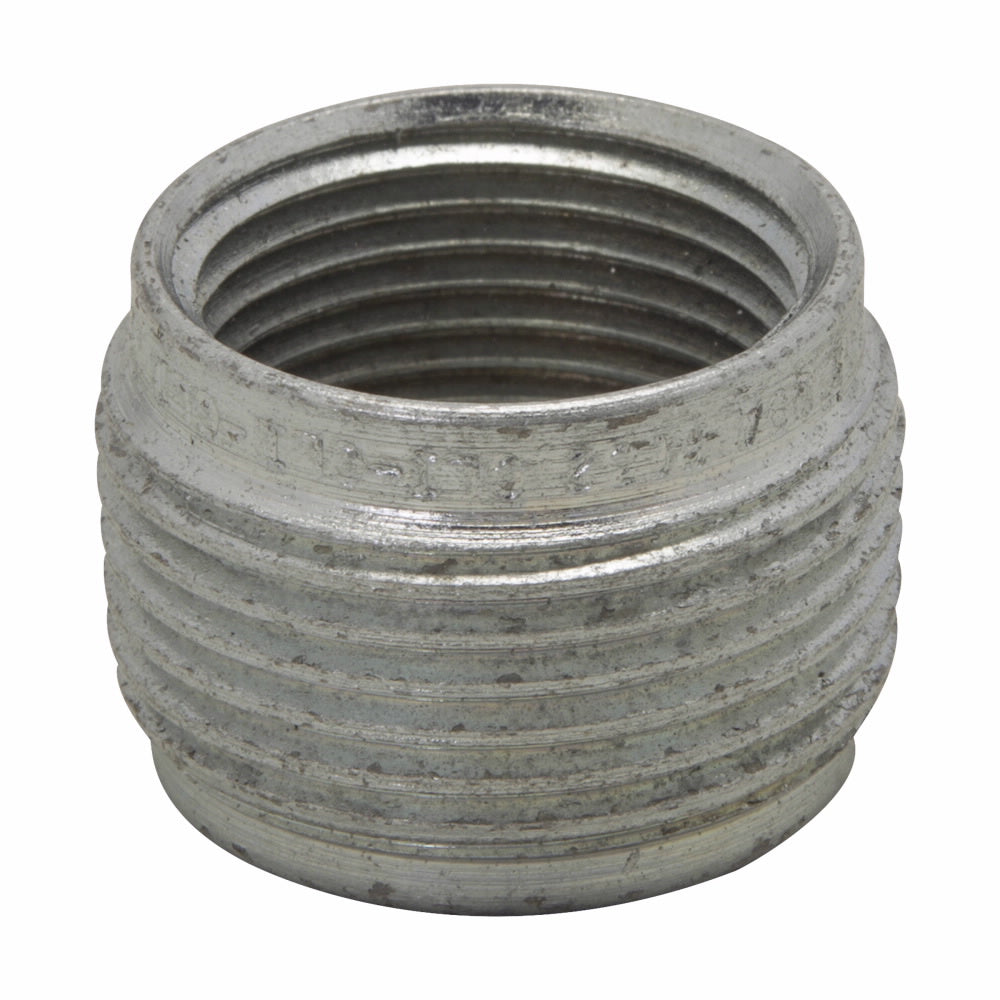

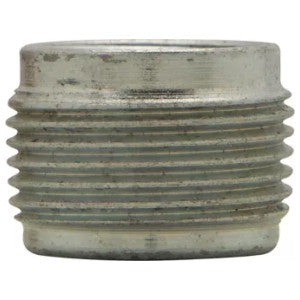

The CROUSE HINDS RE31SA is a series RE reducer designed for Rigid/IMC conduit. Featuring end 1 with 1" NPT and end 2 with 1/2" NPT, it is constructed from copper-free aluminum. This reducer is suitable for hazardous/classified locations and meets NEC/CEC standards.
- Used in threaded heavy wall conduit systems for industry facilities and factories applications.
- Features an integral bushing to prevent wire damage.
- Has full, clean-cut tapered threads.
Product Highlights
This reducer adapts conduit hubs to a smaller size, ensuring secure connections in demanding environments.
Product Information
Standard Information
-
Brand: CROUSE HINDS
-
Manufacturer Part Number: RE31SA
-
Country of Origin: US - United States
Technical Specifications
-
Product Name: Eaton Crouse-Hinds series RE reducer
-
Catalog Number: RE31 SA
-
UPC: 782274101392
-
Product Length/Depth: 1.3 in
-
Product Height: 1.3 in
-
Product Width: 0.92 in
-
Product Type: Reducer
-
Area classification: Hazardous/Classified Locations
-
Standards type: NEC/CEC
-
NEC hazardous rating: Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
-
Conduit type: Rigid/IMC
-
End 1 Size: 1"
-
End 1 Type: NPT
-
End 2 Size: 1/2"
-
End 2 Type: NPT
-
Material: Copper-free aluminum
-
Brand: Crouse Hinds
-
Part Number #: RE31SA
-
Finish: Aluminum Acrylic Painted/Electro-Galvanized
-
Suitable For Use With: Threaded Heavy Wall Conduit Systems
-
UNSPSC: 39121312
-
Standards: UL 886|CSA C22.2
-
Applications: Threaded Heavy Wall Conduit
-
Enclosure: Class I Div 1 2 Group A B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III
-
Tc Connection: Threaded
-
Sub Brand: Reducer
-
Connection Type: Threaded
-
Type: Reducing, Explosion-Proof
-
Use With: Rigid/IMC Conduit
-
Diameter: 1/2 in, 1 in
