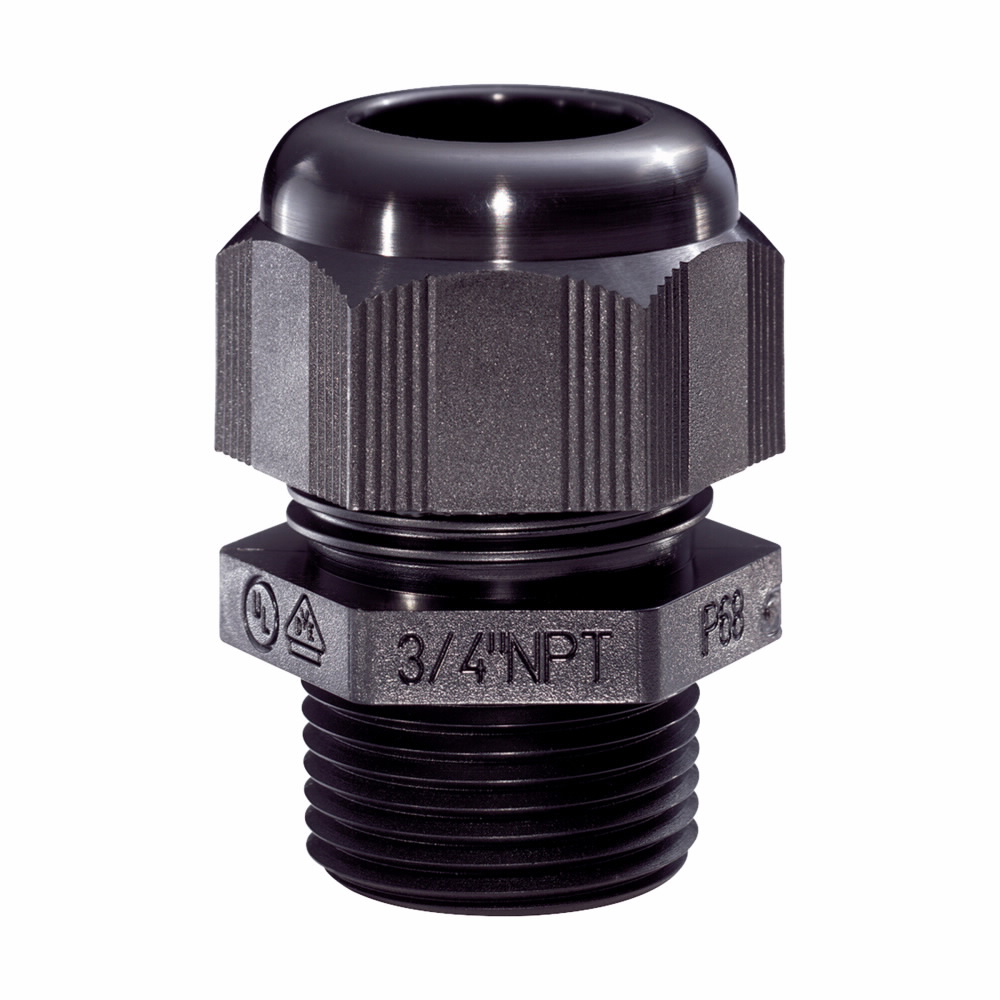

Crouse-Hinds NCG100100 Non-Metallic Cord Grip Connector 1 Inch 0.55 to 1 Inch Polyamide 6

Product Description

The Crouse-Hinds NCG100100 is a non-metallic cord grip connector designed to support various cable types from zero point five five inches to one inch. It is suitable for use in commercial and residential applications, including photovoltaic solar installations.

• Cable range: 0.55 inches to 1 inch
• Material: Polyamide 6
• Temperature rating: -25 to 40 degrees Celsius

Product Highlights

This connector offers mechanical strain relief and a liquidtight seal to protect the cables from environmental factors. The neoprene bushing effectively seals out oils, coolants, and debris, ensuring durability and reliability in various working conditions.

Product Information

Standard Information

• Manufacturer: Eaton Crouse-Hinds
• Catalog Number: NCG100100

Technical Specifications

• Type: Non-armoured
• Enclosure: NEMA 3
• Weight: 0.09 lb
• Applications: Non-armoured and tray cable
• Connection Type: NPT
• Standard: cULus Listed - UL File E23223
• UPC: 784564002464
• GTIN: 00784564002464
