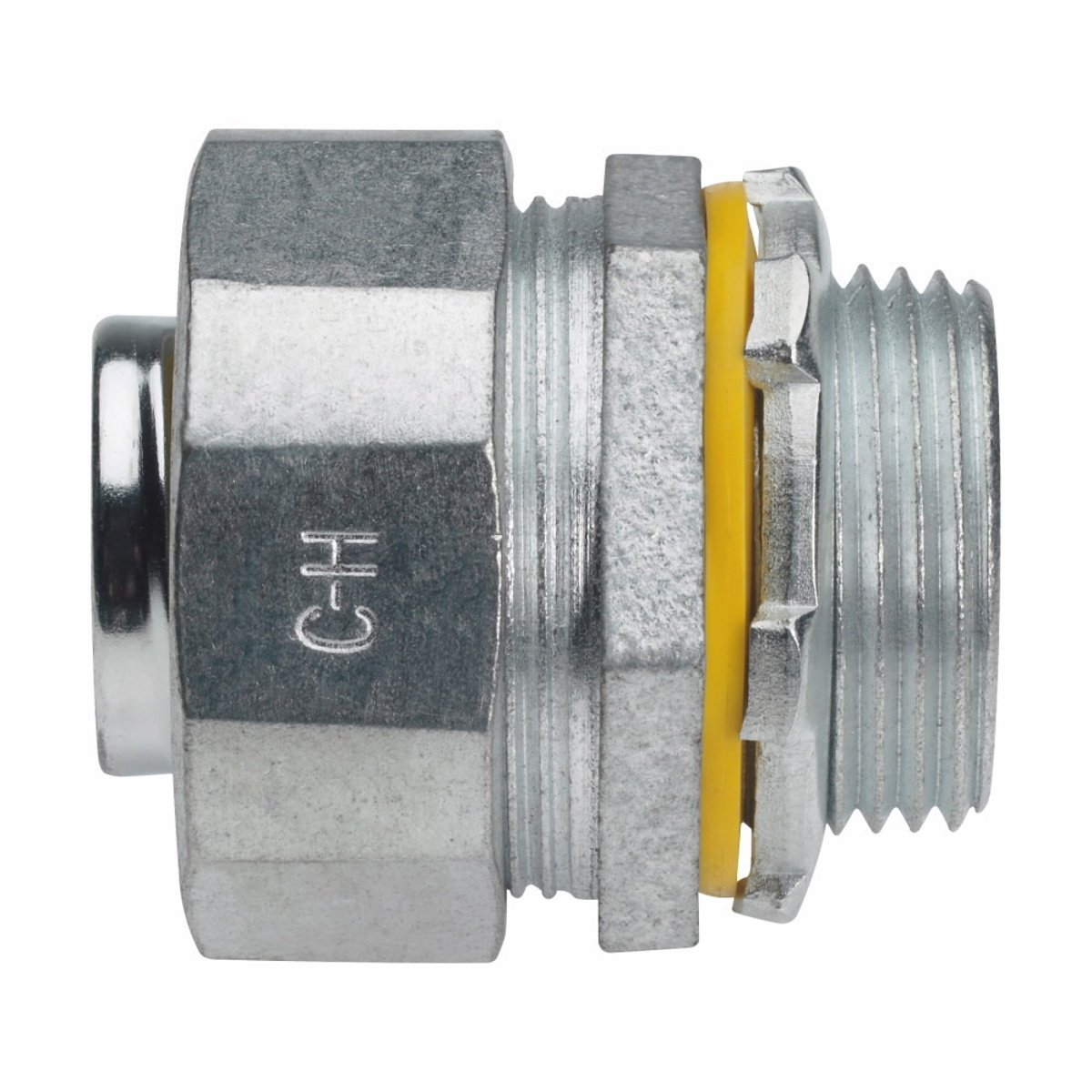

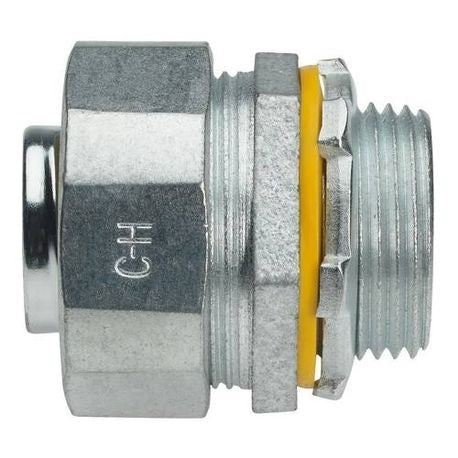

Crouse-Hinds LTB100 Insulated Straight Liquidtight Conduit Connector 1 in

Product Description

The Crouse-Hinds LTB100 is a liquidtight conduit connector made from malleable iron. It is designed for flexible metal conduit applications. The connector is insulated and features a straight design with a trade size of one inch.

• Material: Malleable iron with electro-plated zinc finish.
• Suitable for use with flexible metal conduit and applications that require protection from mechanical damage.
• Threaded installation type for reliable connections.

Product Highlights

This connector provides a secure and long-lasting connection for various applications including wiring for machine tools, motors, and air conditioning units.

Product Information

Standard Information

• Product Name: Crouse-Hinds Liquidtight Conduit Connector
• Brand: Crouse-Hinds

Technical Specifications

• Catalog Number: LTB100
• Type: Insulated Liquid Tight Straight
• Weight: 0.397 lb
• Length: 2.063 inches
• Width: 0.813 inches
• Height: 0.813 inches
• Application: Wiring of machine tools, transformers, food processing equipment
• Connection: Threaded
