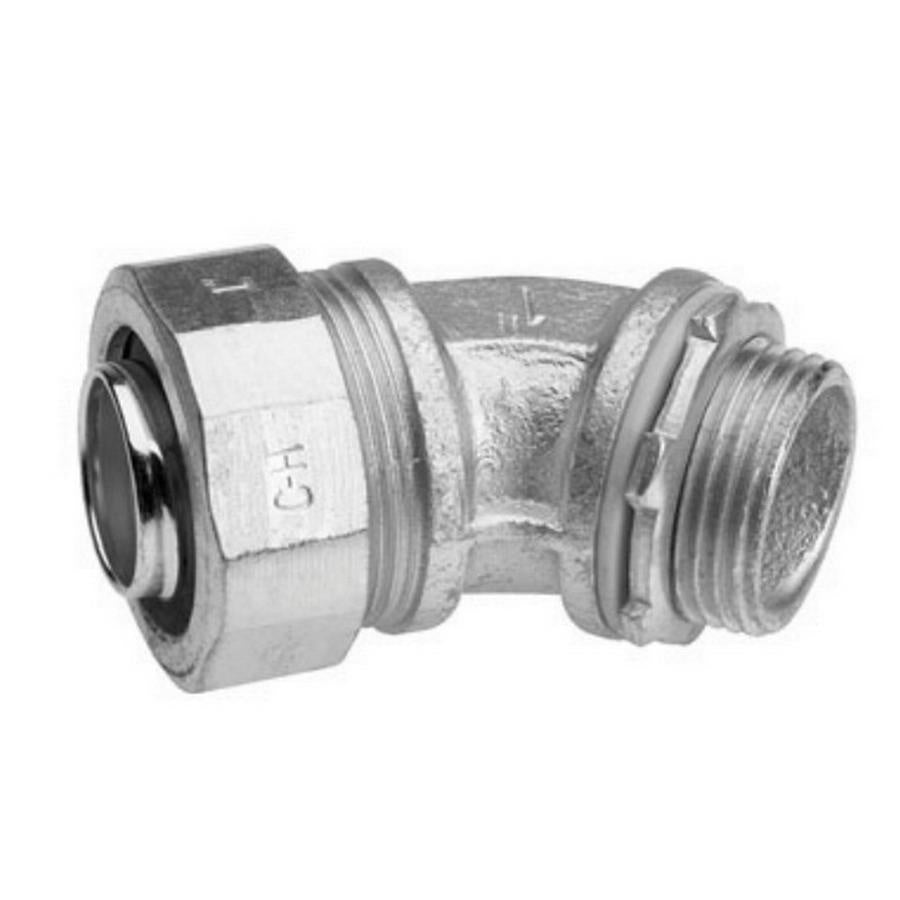

Crouse Hinds LT10045 1-Inch 45 Degree Liquidtight Connector

Product Description

The Crouse Hinds LT10045 is a liquidtight connector made from malleable iron. This connector features a 45-degree angle and is designed for use with flexible metallic conduit. The product accommodates conductors ranging from fourteen to four AWG and has a thread length of zero point six two five inches. The hex surfaces on the gland nut and body of the connector allow for easy wrenching, ensuring a fast and tight installation.

Each connector includes a locknut, sealing ring, and thermoplastic elastomer sealing gasket, which provide effective sealing against water, oil, dust, and dirt. This feature enhances its suitability for wet, dusty, or corrosive environments, ensuring long-lasting performance and protection.

• Constructed from malleable iron with electroplated zinc for durability.
• Designed for use in commercial and institutional buildings, including power generating plants and manufacturing facilities.
• Dimensions measure zero point eight one three inches by two point five inches.

Product Highlights

This connector is UL and cUL listed, ensuring compliance with safety standards. Its robust construction and protective features make it an ideal choice for various industrial applications.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Crouse Hinds

Technical Specifications

• Type: Liquidtight connector
• Material: Malleable Iron
• Dimensions: Zero point eight one three inches by two point five inches
• Trade Size: One inch
• Thread Length: Zero point six two five inches
• Conductor Range: Fourteen to four AWG
• Standard Compliance: UL 514B, 467 Listed, cUL Certified
• Sub Brand: Crouse-Hinds series
