Crouse Hinds LR85 3-IN AL LR CND BDY

Product Description

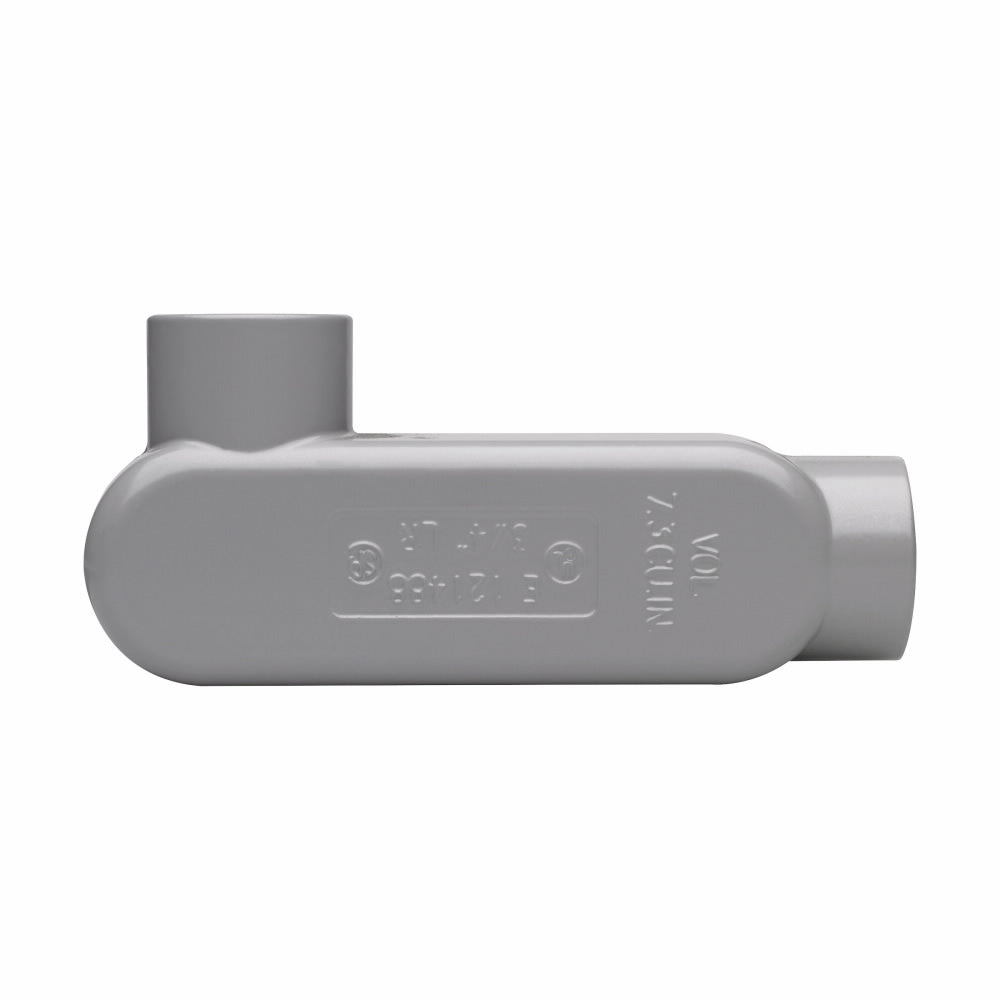

The Crouse Hinds LR85 is a three-inch conduit outlet body designed for rigid and EMT conduit systems. It features a lightweight design made of die-cast copper-free aluminum. This outlet body allows for a 90-degree bend in conduit runs and serves as a pull outlet for installed conductors.

• Die-cast aluminum construction
• Trade size of three inches
• UL listed and CSA certified

Product Highlights

This product offers easy access to conductors for maintenance and system changes. It has a capacity of one hundred eighty-six cubic inches and accepts three three hundred fifty MCM wires.

Product Information

Standard Information

• Manufacturer: Cooper Crouse Hinds
• Part Number: LR85

Technical Specifications

• Material: Die cast aluminum
• Dimensions: Thirteen inches length x six point one inches width x four point seven inches height
• Cubic Capacity: One hundred eighty-six cubic inches
• Conductor Capacity: Three hundred fifty MCM
• Hub Placement: Ninety degrees
• Connection Type: Threaded
• Standards: UL 514B Listed, CSA C22.2 No.18
• Finish: Aluminum acrylic paint
