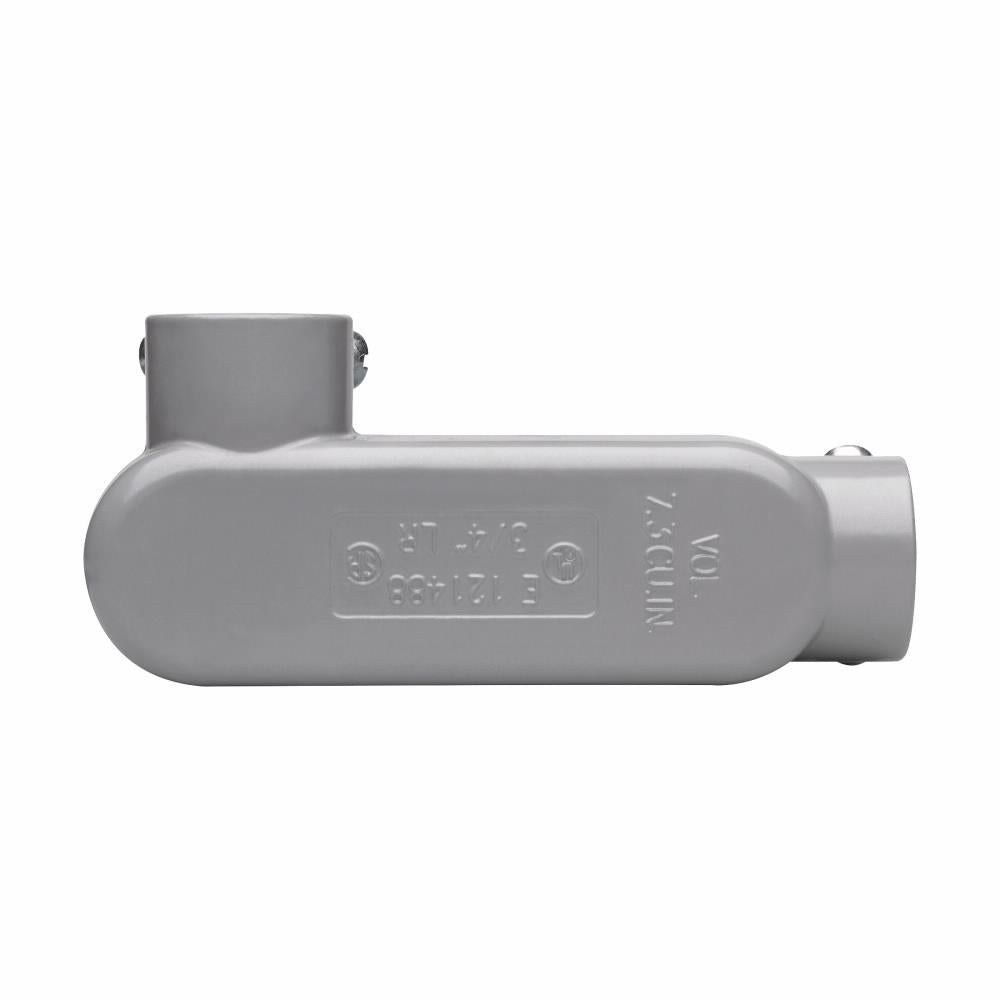

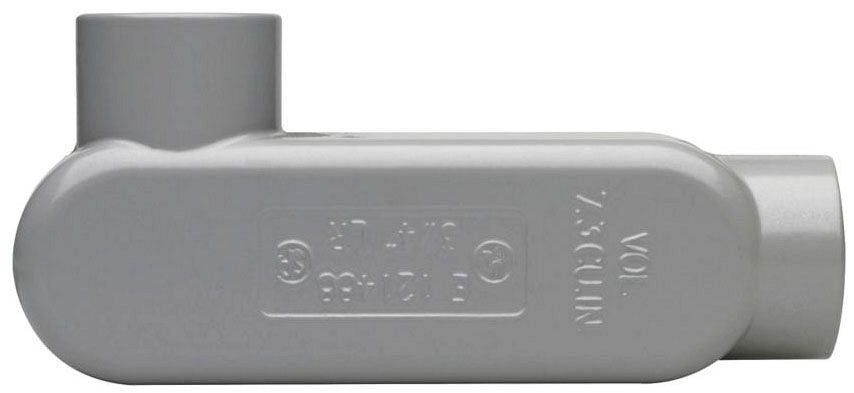

Crouse-Hinds LR35ICG Conduit Outlet Body Type LR 1 in Hub

Product Description

The Crouse-Hinds LR35ICG is a conduit outlet body made by Eaton. It features a one inch hub, and is designed for use with rigid or EMT conduit. This product has a capacity of ten point eight cubic inches and is built from die cast copper-free aluminum. The epoxy powder coating enhances its resistance to corrosion.

• Designed for rigid or EMT conduit
• Lightweight die cast copper-free aluminum construction
• NEMA 4 enclosure suitable for surface mounting

Product Highlights

The Crouse-Hinds LR35ICG offers reliable service and easy installation. Its two hubs provide flexibility for various electrical applications.

Product Information

Standard Information

• Brand: Crouse-Hinds
• Manufacturer: Eaton

Technical Specifications

• Material: Die Cast Copper-Free Aluminum
• Capacity: 10.8 cu-in
• Hub Size: 1 in
• Number of Hubs: 2
• Enclosure: NEMA 4
• Dimensions: 5.94 in L x 2.51 in W x 1.9 in H
• Connection Type: Threaded/Set Screw
• Mounting Type: Surface
• Form: 5
• Finish: Epoxy Powder Coated
• Color: Gray
