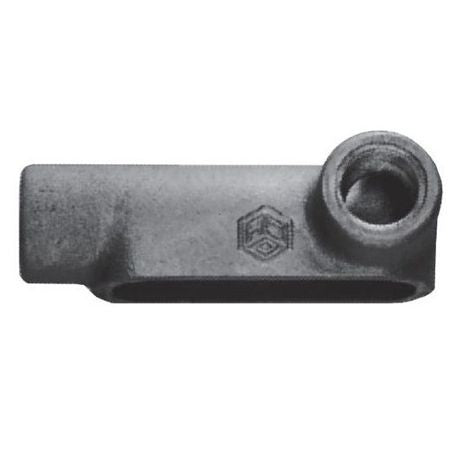

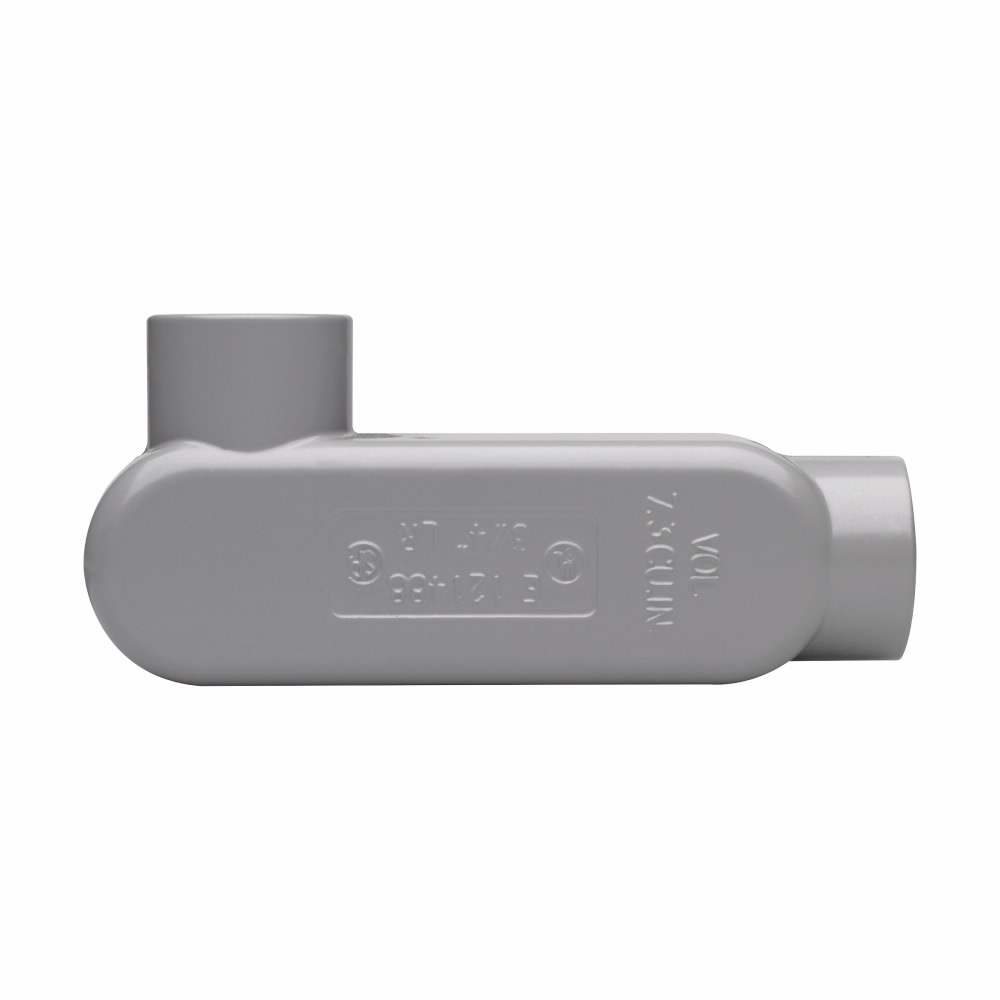

Crouse-Hinds LR35 Conduit Outlet Body 1 Inch Aluminum Replacement MPN

Product Description

The Crouse-Hinds LR35 is a conduit outlet body designed for use with rigid or EMT conduit. Manufactured by Eaton, this product features a die-cast aluminum body, suitable for installation in commercial and institutional scenarios. The LR35 conduit body includes two hubs, providing a total capacity of twelve point two cubic inches.

• Constructed from die-cast copper-free aluminum for corrosion resistance
• Compatible with threaded and set screw connections
• Meets UL and cUL standards for safety and compliance

Product Highlights

This product is effective for making splices or taps in conductors. The compact design allows it to fit easily within various mounting configurations, making it ideal for electrical installations.

Product Information

Standard Information

• Manufactured By: Eaton Crouse-Hinds
• Application: Suitable for use with Rigid/IMC/EMT conduit

Technical Specifications

• Type: LR
• Material: Die Cast Copper-Free Aluminum
• Color: Gray
• Hub Size: 1 in
• Dimensions: 5.94 in (length) x 2.51 in (width) x 1.90 in (height)
• Weight: 0.64 lb
• Connection Type: Threaded / Set Screw
• Enclosure: NEMA 4
