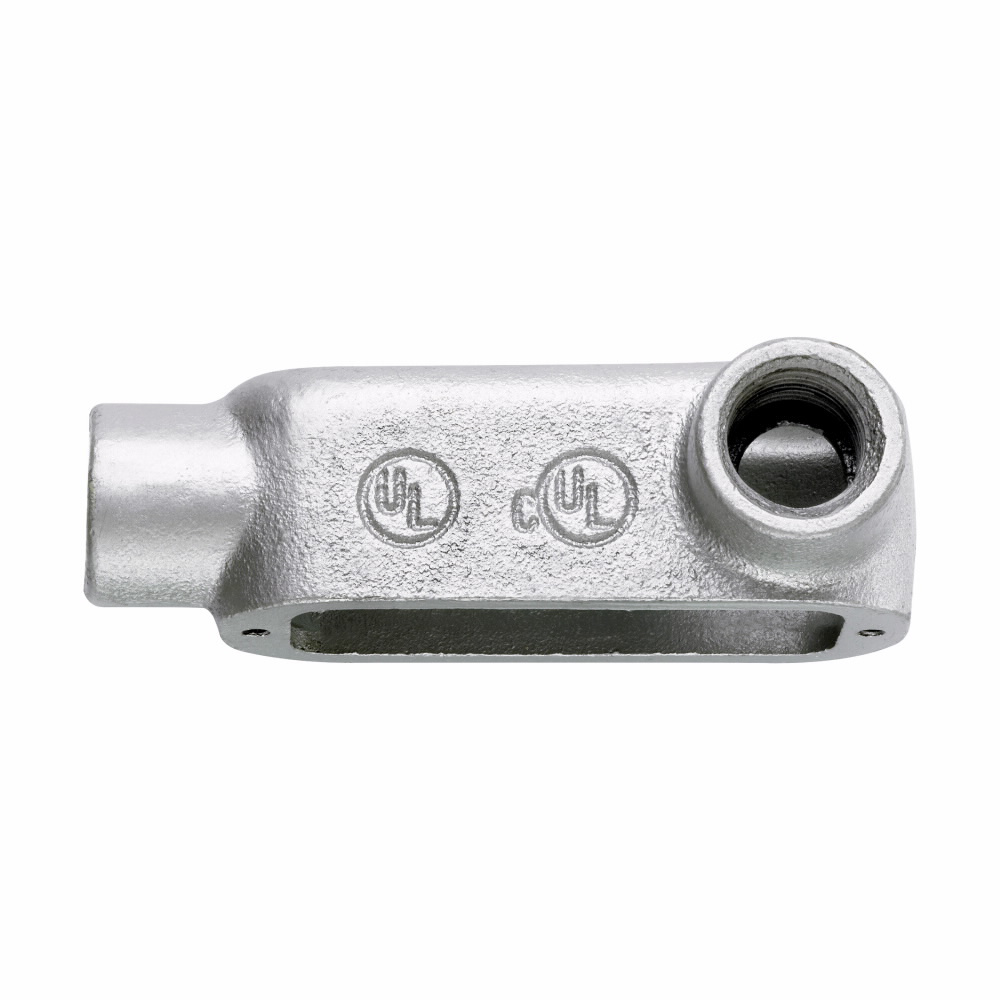

Crouse Hinds LR250M Condulet Form 5 Conduit Outlet Body 2-1/2 Inch

Product Description

The Crouse-Hinds LR250M Condulet Form 5 conduit outlet body is ideal for threaded rigid/IMC conduit systems in commercial and industrial applications. Constructed from malleable iron, this LR shape conduit body features built-in rollers to facilitate wire pulling. It is suitable for corrosive environments.

• Smooth and rounded integral bushings for protection of wire insulation
• Malleable iron construction provides high impact resistance and durability
• Suitable for rigid/IMC conduit, act as pull outlets for conductors being installed

Product Highlights

Malleable iron conduit outlet body with 2-1/2 inch hub size, ideal for commercial and industrial applications. Provides openings for making splices and taps in conductors.

Product Information

Standard Information

• Brand: Crouse Hinds
• Manufacturer Part Number: LR250M
• Country of Origin: India

Technical Specifications

• Form: Form 5
• IGCC: 5563
• Type: Conduit outlet body
• Width: 5.71 in
• Finish: Hot-Dip Galvanize
• Height: 3.9 in
• Length: 13.6 in
• Hub Size: 2.5 in
• Material: Malleable Iron
• Standard: UL 514B; CSA C22.2; CUL
• Sub Brand: Crouse-Hinds series
• Application: For rigid/IMC conduit, act as pull outlets for conductors being installed, provide openings for making splices and taps in conductors
• Shape: LR
• Trade Size: 2-1/2 Inch
• Area Classification: Ordinary/Non-Hazardous Locations
• Standards Type: NEC/CEC
• Product Type: Conduit outlet body
• Product Length/Depth: 13.6 in
• Product Height: 5.71 in
• Product Width: 3.9 in
• Number of Hubs: 2
• Capacity: 142
• Catalog ID: CHNLR250M
• Connection Type: Threaded
• Standard & Approvals: ARRA, Buy American Act, RoHS Compliant, UL 514B, cUL Listed, CSA C22.2 No. 18, NEC/CEC Certified
• Applications: Rigid/IMC Conduit
• Form Type: 5
• Brand: Crouse-Hinds
• 12-Digit UPC: 782274756097
• ECCN: EAR99
• UNSPSC: 39131708
