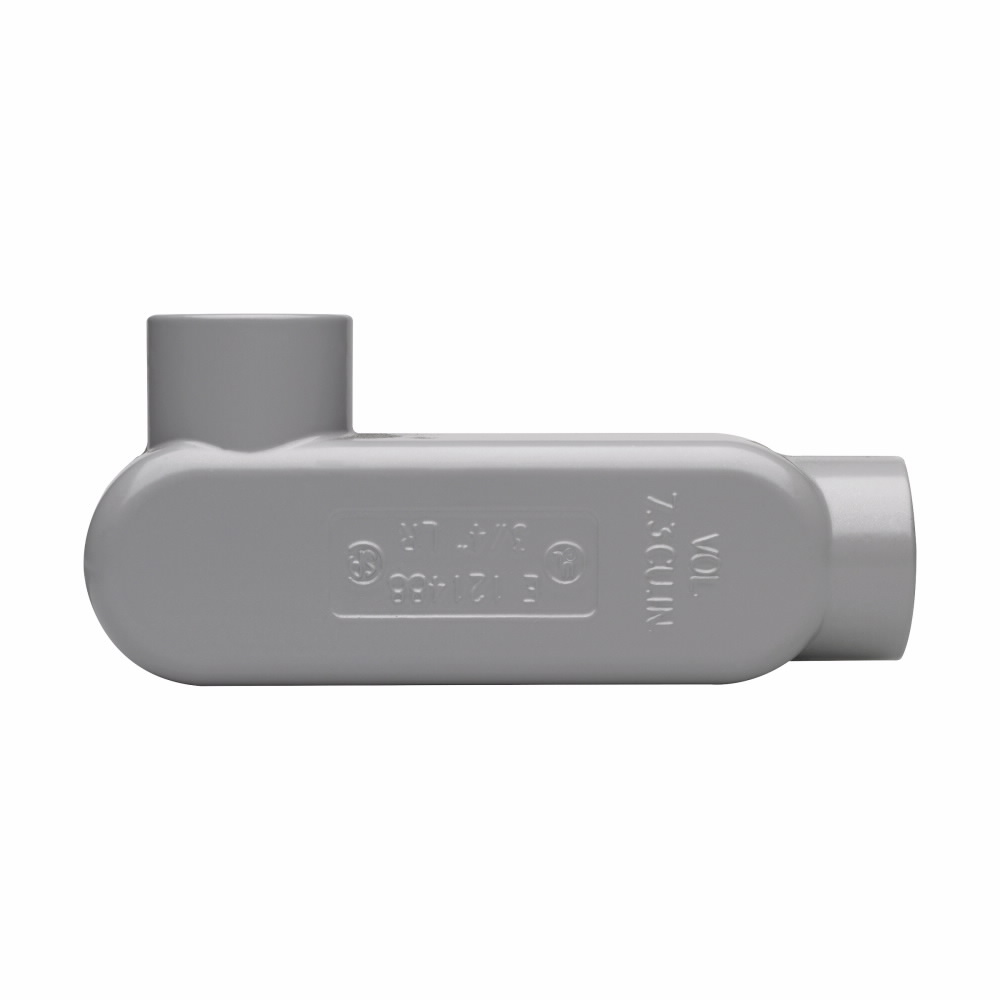

Crouse-Hinds LR25 Conduit Outlet Body 3/4 in Hub Type LR

Product Description

The Crouse-Hinds LR25, by Eaton, is a conduit outlet body designed for Rigid and IMC applications. This outlet body is made from die-cast copper-free aluminum, which provides enhanced durability and resistance to corrosion. With a hub size of three-quarters of an inch, it is ideal for various electrical installations. The LR shape allows for multiple conductor applications.

• Suitable for Rigid/IMC/EMT conduit systems
• Lightweight and corrosion resistant material
• Threaded/Set screw connection type

Product Highlights

This conduit body is engineered for reliability in commercial and institutional wiring projects.

Product Information

Standard Information

• Manufacturer: Eaton Crouse-Hinds
• Catalog Number: LR25

Technical Specifications

• Material: Die Cast Copper-Free Aluminum
• Hub Size: 0.75 inches
• Dimensions: 5.07 inches x 2.28 inches x 1.64 inches
• Weight: 0.48 pounds
• Enclosure Type: NEMA 4
• Connection Type: Threaded / Set Screw
• Application: For rigid/IMC/EMT conduit, pull outlets for conductors
• Standards: UL, cUL Listed
