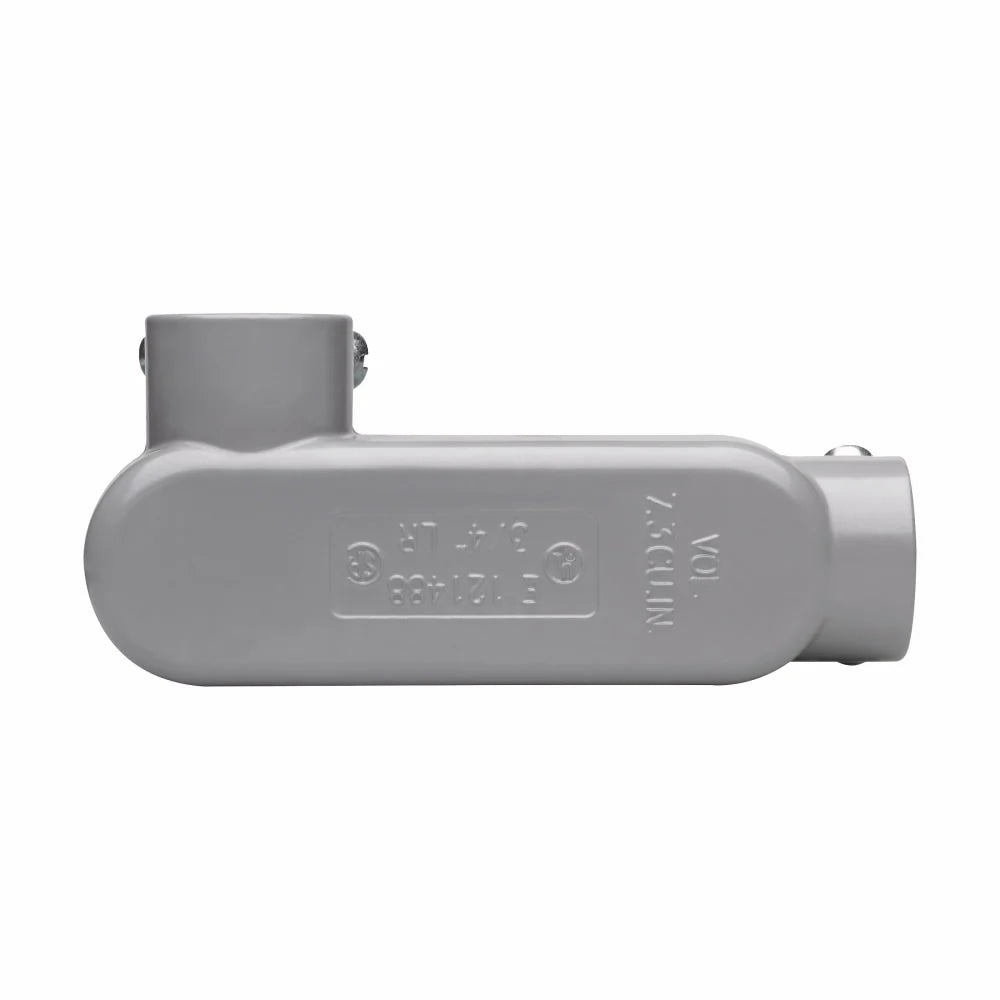

Crouse-Hinds LR15CGN Conduit Outlet Body 1/2 In

Product Description

The Crouse-Hinds LR15CGN is a conduit outlet body made by Eaton, designed for use with rigid and IMC conduits. This product features a traditional cover with a neoprene gasket. It is constructed from die-cast aluminum that is copper-free, ensuring durability and resistance to corrosion.

• Compatible with rigid and EMT conduit.
• Threaded and set screw connection types.
• Includes a gasket for secure sealing.

Product Highlights

This conduit body provides access for pulling wires, making splices, and installing conductors in commercial and institutional buildings.

Product Information

Standard Information

• Manufacturer: Eaton Crouse-Hinds
• Catalog Number: LR15 CGN

Technical Specifications

• Material: Die Cast Copper-Free Aluminum
• Dimensions: Four point four inches length x Two point zero six inches width x One point four inches height
• Finish: Epoxy Powder Coated
• Hub Size: One half inch
• Enclosure Type: NEMA 4
• Color: Gray
• Weight: Zero point two six pounds
• Usage: For Rigid/IMC/EMT Conduit
• Standard Approvals: UL, CUL Listed
• Application: Provides openings for making splices and taps in conductors
