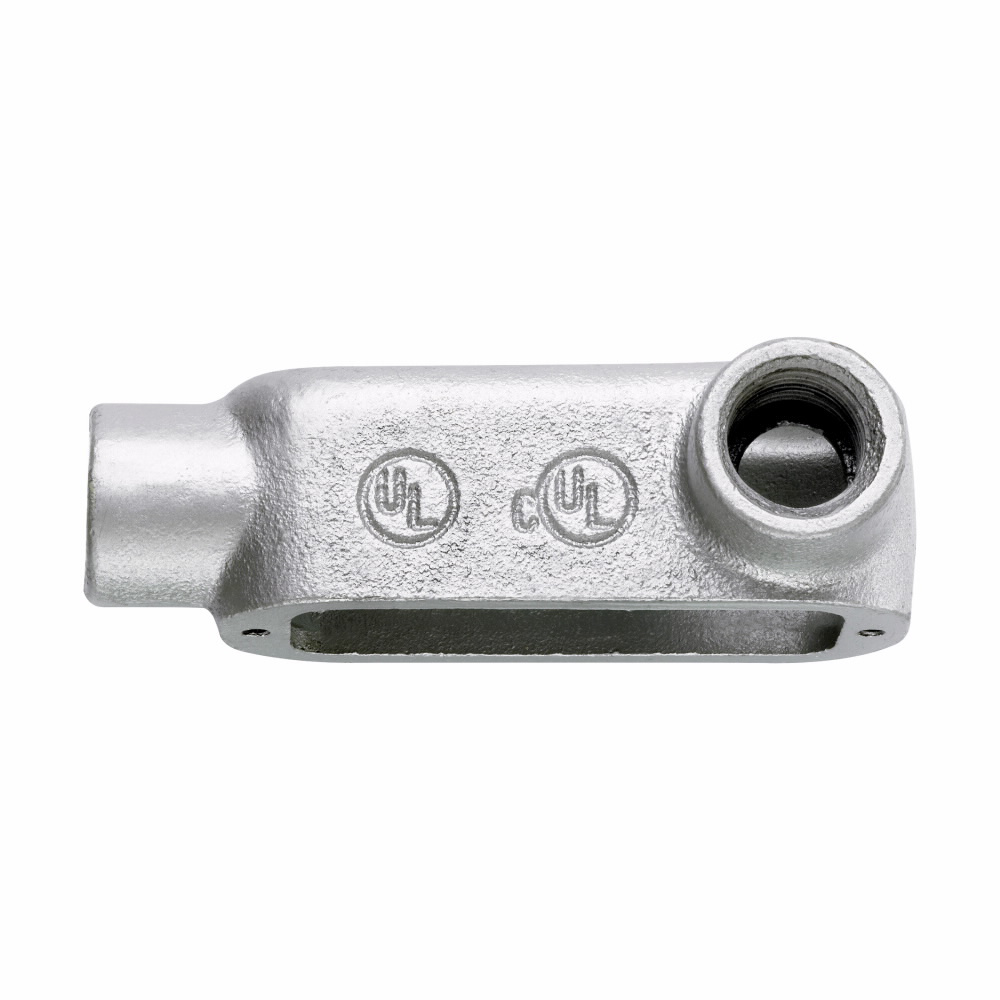

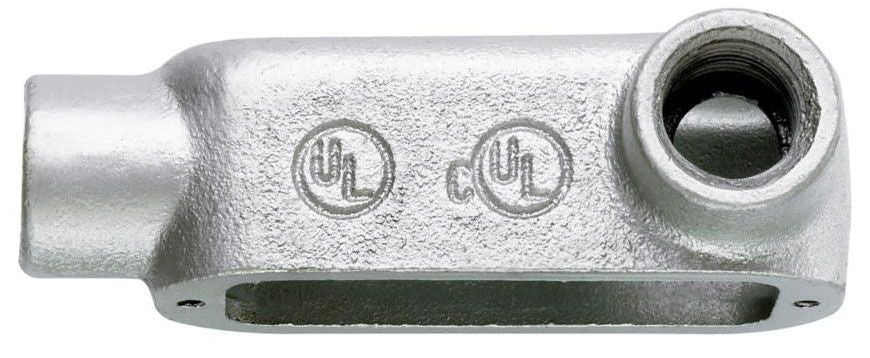

Crouse-Hinds LR125MCG Crouse-Hinds Condulet 1-1/4 in

Product Description

The Crouse-Hinds LR125MCG is a Condulet designed for use in electrical conduit systems. This product features a malleable iron construction and is used to create accessible points for pulling conductors, making electrical connections, and accommodating conduit bends. It is suitable for use with rigid and IMC conduit systems.

• Durable malleable iron material
• Compatible with 1-1/4 inch hubs
• Integral gasket cover for enhanced sealing

Product Highlights

Ideal for commercial and institutional structures, providing reliable electrical junctions and facilitating maintenance access.

Product Information

Standard Information

• Brand: Crouse-Hinds
• Manufacturer Part Number: LR125MCG

Technical Specifications

• Material: Malleable Iron
• Finish: Aluminum Acrylic Painted/Electro-Galvanized
• Hub Size: 1-1/4 inches
• Dimensions: 8.12 inches (L) x 2.75 inches (W) x 2.75 inches (H)
• Weight: 3.32 pounds
• Form Type: 5
• Application: Commercial / Institutional Buildings
• Standards: UL 514B, CSA C22.2
