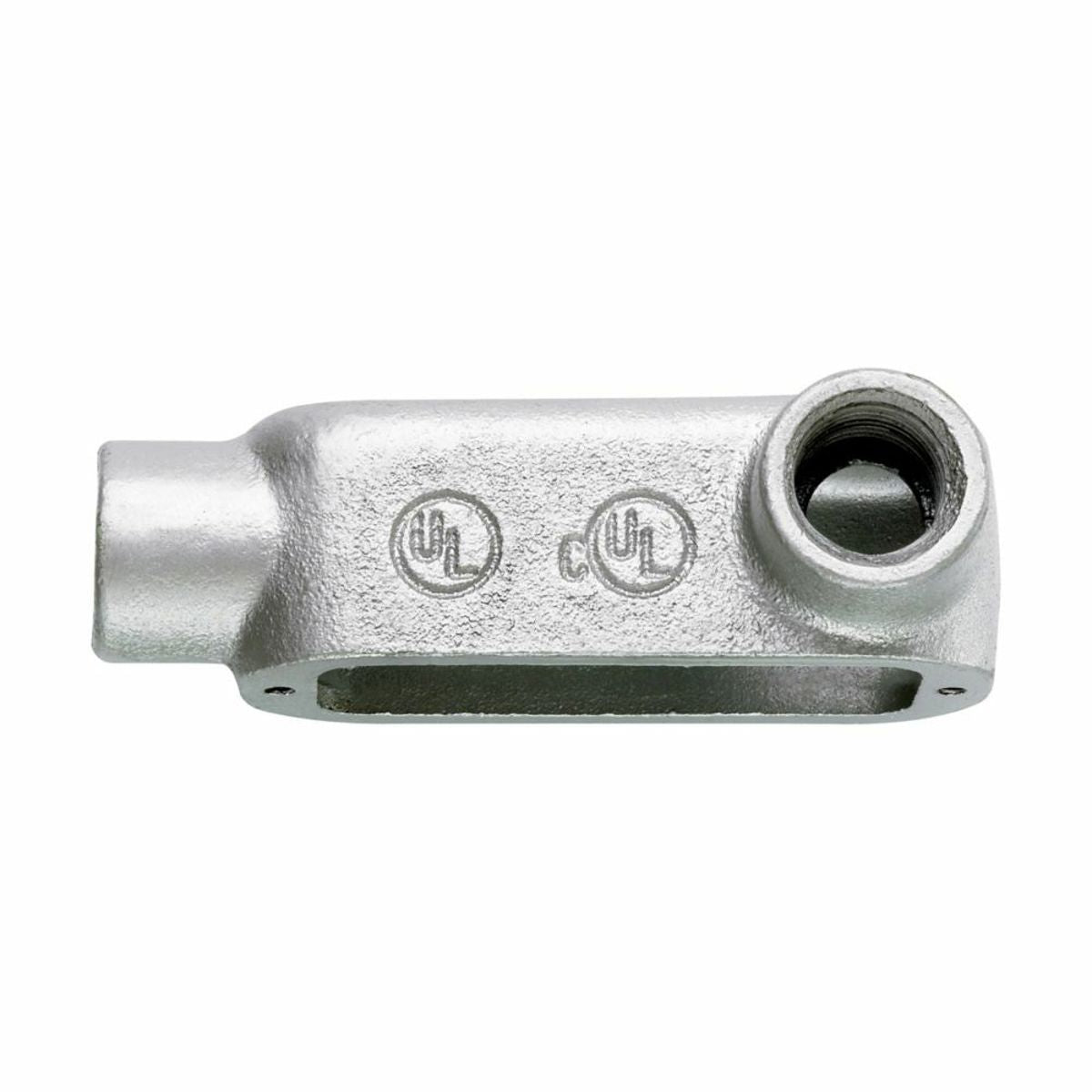

Crouse-Hinds LR125M Conduit Body Type LR 1-1/4 in Hub 5 Form

Product Description

The Crouse-Hinds LR125M is a conduit outlet body designed for 1-1/4 inch hubs. This product is made from malleable iron and is suitable for threaded rigid and intermediate metal conduit systems. It is part of Eaton's Crouse-Hinds product line. This conduit body provides access for making splices and taps, and acts as a pull outlet for conductors being installed.

• Form 5 conduit body
• Electro-galvanized finish for corrosion protection
• Compatible with Appleton Form 35 conduit bodies

Product Highlights

The LR125M is efficient for commercial and industrial installations, and offers access to conductors for maintenance and future changes.

Product Information

Standard Information

• Material: Malleable Iron
• Application: Rigid/IMC Conduit

Technical Specifications

• Hub Size: 1-1/4 in
• Finish: Electro Galvanized
• Form Type: Form 5
• Length: 8.12 in
• Width: 2.75 in
• Height: 2.75 in
• Weight: 3.32 lb
• Standards: UL 514B, CSA C22.2, CUL
