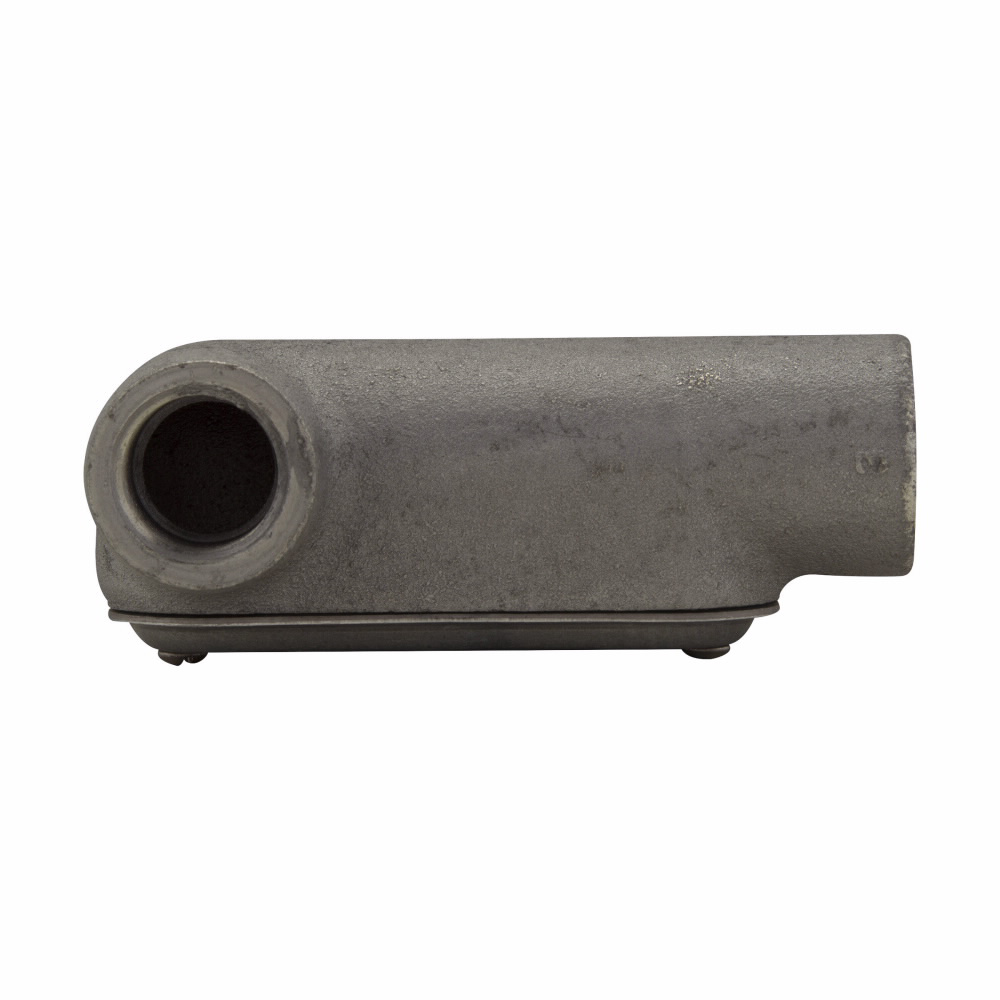

Crouse-Hinds LL57CG Conduit Body Type LL 1-1/2 Inch Feraloy Iron Alloy Gasket Included

Product Description

The Crouse-Hinds LL57CG is a conduit body that forms part of an assembled system designed for effective connections in conduit runs. Constructed from durable Feraloy iron alloy, this conduit body functions efficiently in both industrial and factory settings. Its standard dimensions of one and a half inches provide versatility, ensuring compatibility with various conduit applications.

• Type LL with a dimension of one and a half inches
• Includes integral gasket for secure sealing
• Designed for rigid threaded conduit applications

Product Highlights

This product simplifies the conduit installation process by offering a compact design with easy access for splices and taps, along with a user-friendly installation experience.

Product Information

Standard Information

• Catalog Number: LL57 CG
• Manufacturer: Crouse-Hinds

Technical Specifications

• Dimensions: 2-9/16 inches wide x 7-1/8 inches deep x 3-9/16 inches high
• Hub Size: 1-1/2 inches
• Material: Feraloy Iron Alloy
• Connection Type: Thread
• Weight: 3.3 pounds
• Enclosure Rating: NEMA 3R
• Application: Rigid conduit systems
• Standards/Approvals: UL 514B, CSA C22.2 No. 18, Federal Specification W-C-586D
