Crouse Hinds LL57 Type Ll Condulet 1-1/2 inches

Product Description

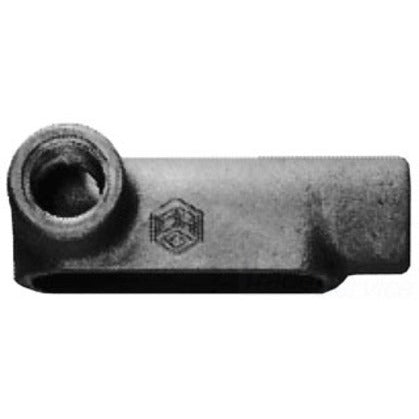

The Crouse-Hinds LL57 Type LL Condulet is a 1-1/2 inch conduit outlet body. Featuring a round back design for efficient installations, it makes 90-degree bends in conduit runs and serves as a pull outlet. It provides easy access to conductors for maintenance. Constructed from durable feraloy iron alloy with a corrosion-resistant finish.

• Features feraloy iron alloy construction
• Trade size of 1-1/2-inches
• Dimensions: 7.125-Inch x 3.562-Inch x 2.562-Inch

Product Highlights

Provides access to conductors for pulling, splicing, and maintenance. Allows connection of straight conduit runs, branch conduit runs, and 90° bends.

Product Information

Standard Information

• Brand: Crouse Hinds
• Manufacturer Part Number: LL57
• Country of Origin: United States of America

Technical Specifications

• MPN: LL57
• Manufacturer: Crouse Hinds
• Brand: Crouse Hinds
• Trade Size: 1-1/2 Inch
• Standards: UL 514B Listed, CSA C22.2 No.18, Federal Specification: W-C-586D
• Conduit Body Style: Type LL
• Conduit Body Form: Form 7
• Sub Brand: Condulet®
• NEMA Rating: 3R
• Number of Hubs: 2.0000
• Cover Type: Snaptight
• Access: Left Side
• Bend Radius: 2.4 Inch
• Connection Type: Threaded
• Cubic Capacity: 26
• Material: Feraloy® Iron Alloy
• Finish: Electrogalvanized with Aluminum Acrylic Painted
• For Use With: Rigid Conduit
• Hub Placement: 90 Degree
• Item Name: Conduit Outlet Body
• Country Of Origin: United States of America
• UPC: 78227452500
• Manufacturer Name: Cooper Crouse-Hinds
• GTIN: 00782274525006
• UNSPSC: 39131708
• Product Length/Depth: 7.13 in
• Product Height: 3.56 in
• Product Width: 2.56 in
• Product Weight: 3.33 lb
• Product Type: Conduit outlet body
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• Shape: LL
• Hub Size: 1-1/2 in
• Application: For providing openings for making splices and taps in conductors, connecting conduit sections and rigid conduit
• Standard & Approvals: ARRA, Buy American Act and RoHS Compliant, UL 514B, CSA C22.2 No. 18, Federal Specification W-C-586D
• Capacity: 26
• Enclosure: NEMA 3R
• Form: 7
• ECCN: EAR99
• Cover and Gasket: Cover; Gasket
• No. of Hubs: 2 Hub
• Trade size: 1-1/2 in.
• Width: 2-9/16 in.
• Family / Style: Form 7
