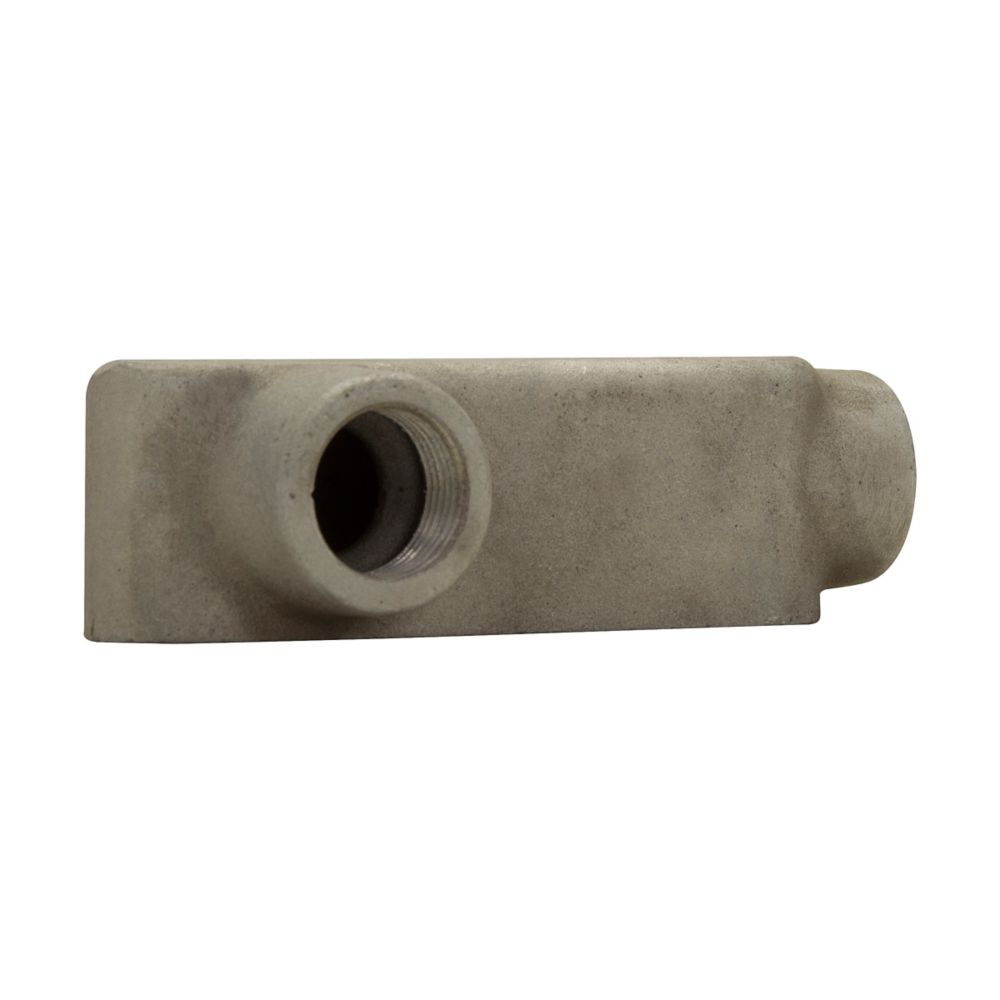

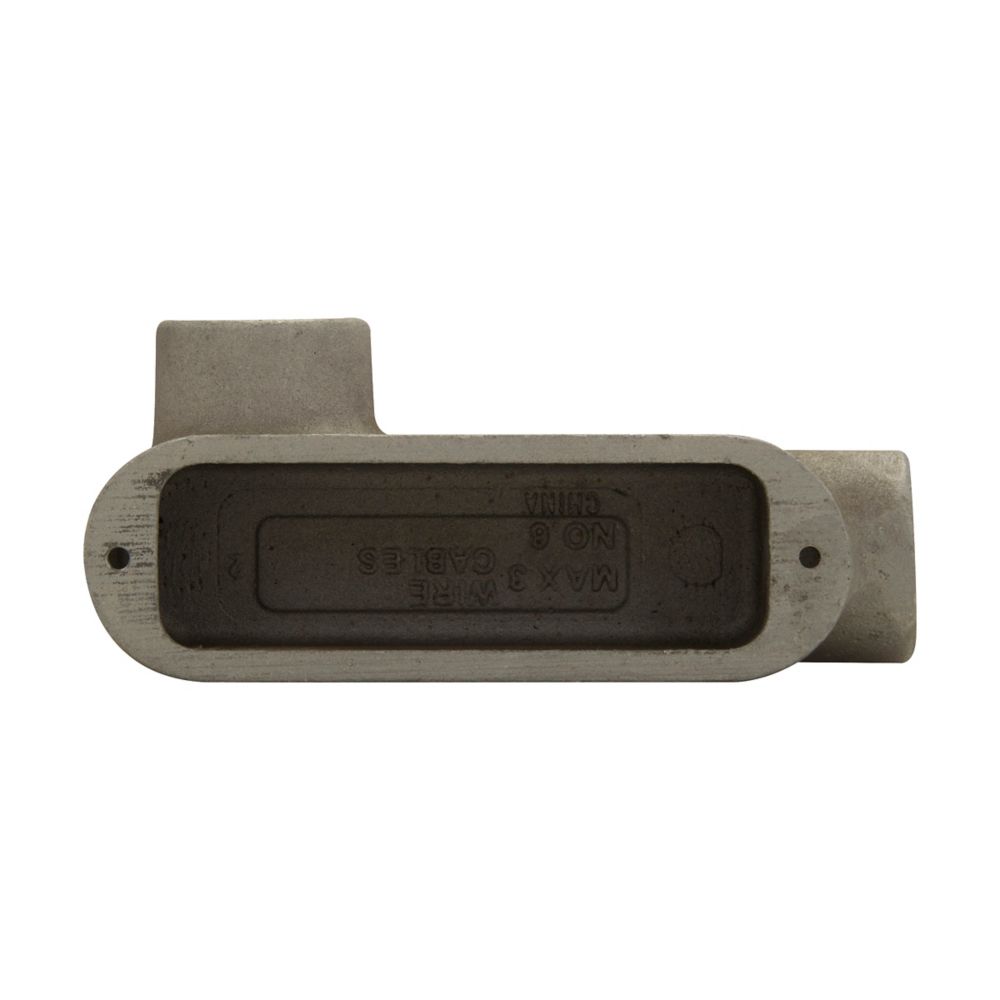

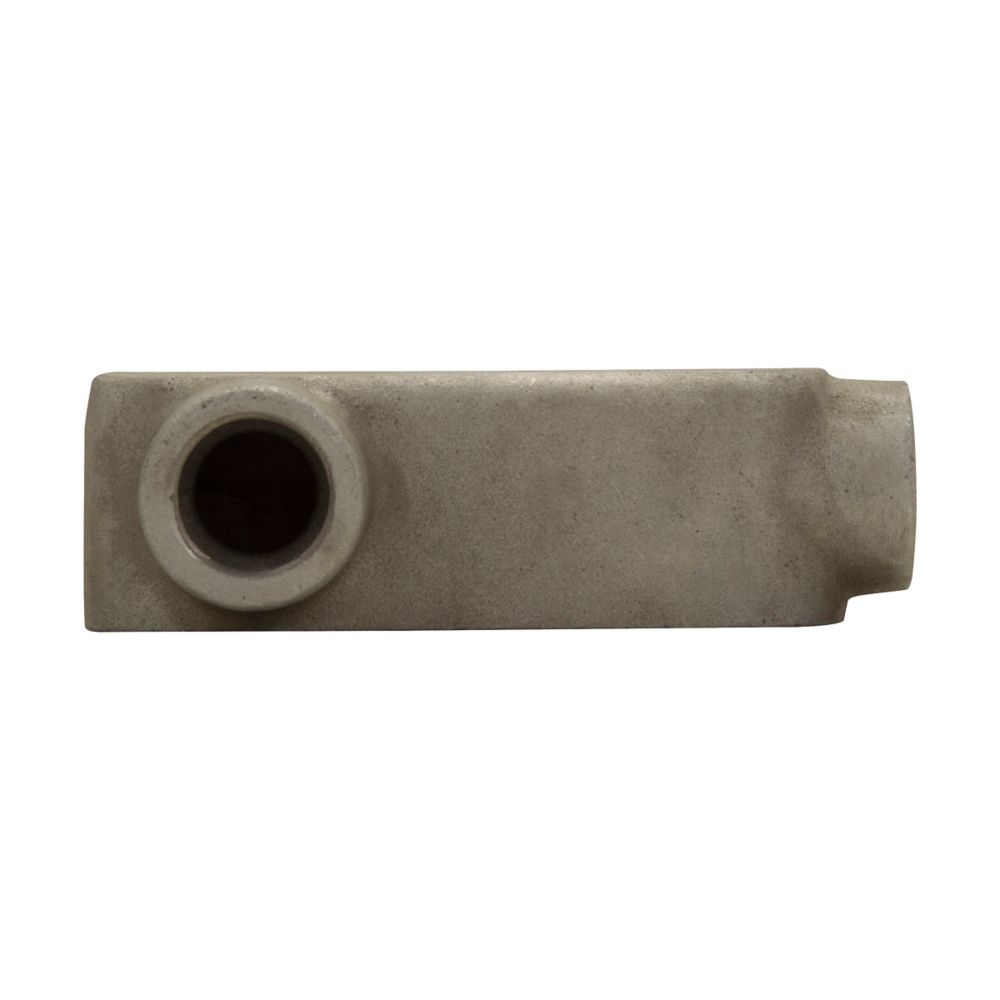

Crouse Hinds LL39 Condulet Mark 9 Conduit Outlet Body 1 inches

Product Description

The CROUSE HINDS LL39 Condulet Mark 9 conduit outlet body is made of copper-free aluminum with an LL shape and 1" trade size. It provides openings for making splices and taps in conductors, connecting conduit sections, and rigid conduit. It has a capacity of 12 cu-in and NEMA 3R enclosure.

• Mark 9 bodies provide more room for heavier conductors
• Conduit hubs have tapered threads and feature integral bushings for protection of wire insulation
• Mark 9 covers feature self-retaining cover screws

Product Highlights

The Condulet Mark 9 series is designed for safety and productivity, suitable for demanding environments. It acts as a pull outlet for conductors and provides access for maintenance.

Product Information

Standard Information

• Brand: CROUSE HINDS
• Manufacturer Part Number: LL39
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body
• Catalog Number: LL39
• UPC: 782274524702
• Product Length/Depth: 6.09 in
• Product Height: 2.69 in
• Product Width: 1.88 in
• Product Weight: 0.66 lb
• Product Type: Conduit outlet body
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• NEMA Rating: 12
• Shape: LL
• Trade size: 1"
• Material: Copper-free aluminum
• Hub Size: 1 in
• Number of Hubs: 2
• Connection Type: Threaded
• Enclosure: NEMA 3R
• Finish: Natural
• Form: Mark 9
• Type: Type LL
• Capacity: 12
• Standard & Approvals: ARRA, Buy American Act and RoHS Compliant, UL 514B, CSA C22.2 No. 18, Federal Specification W-C-586D
• Application: For providing openings for making splices and taps in conductors, connecting conduit sections and rigid conduit
• Manufacturer: Crouse-Hinds
• Dimensions (HxWxD): 6.09 in x 2.69 in x 1.88 in
• Condition: New
• Brand: N/A
• Variant Type: LL39-New
• Country of Origin: United States
