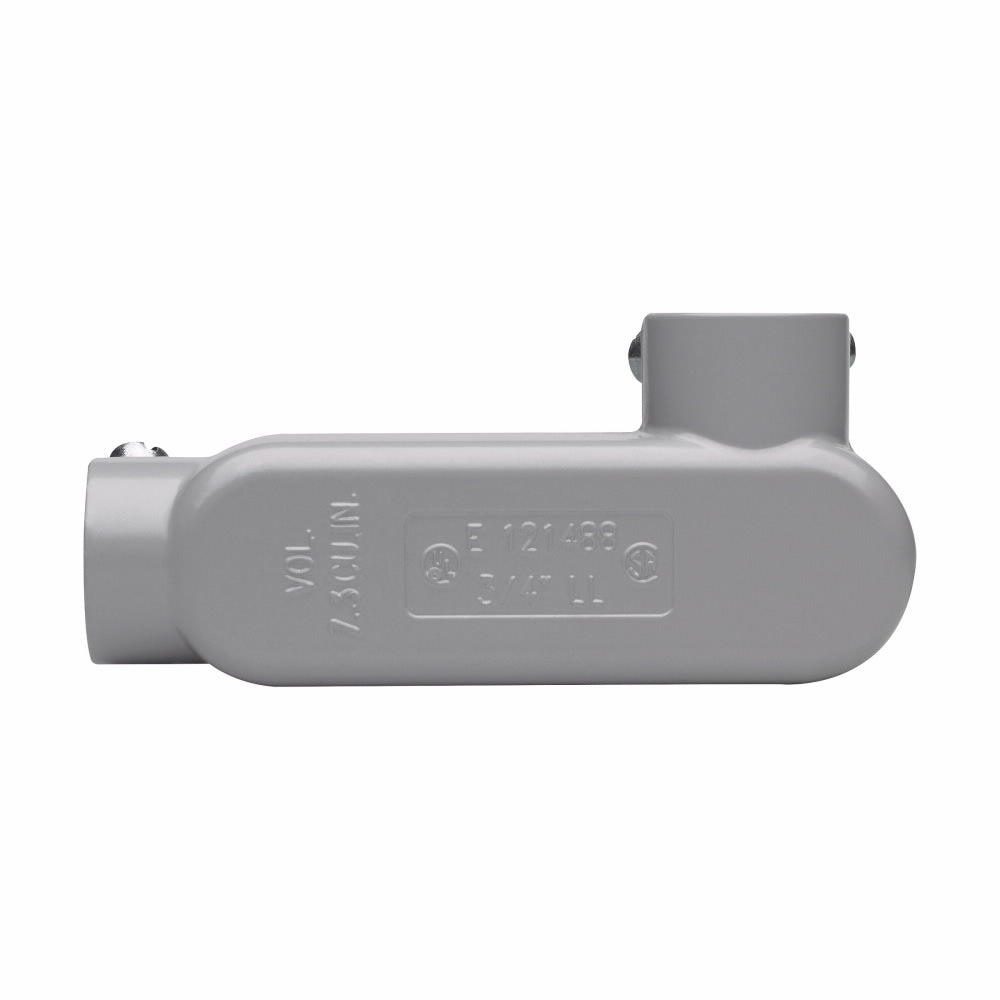

Crouse-Hinds LL35 ICG Conduit Outlet Body Type LL 1 in Hub 7.5 cu-in

Product Description

The Crouse-Hinds LL35 ICG from Eaton is a conduit outlet body designed for use with rigid or EMT conduit systems. This model includes a one inch hub and offers a capacity of seven point five cubic inches. It is constructed from die cast copper-free aluminum and features an epoxy powder coating for corrosion resistance.

• Compatible with rigid and EMT conduit.
• Two hubs for versatile mounting options.
• NEMA 4 rated enclosure for weather-tight applications.

Product Highlights

This conduit outlet body includes a domed aluminum cover providing added cubic capacity and a perforated gasket that can easily be removed if desired.

Product Information

Standard Information

• Brand: Crouse-Hinds
• Manufacturer: Eaton

Technical Specifications

• Type: Type LL
• Form: 5
• Color: Gray
• Material: Die Cast Copper-Free Aluminum
• Finish: Epoxy Powder Coated
• Enclosure: NEMA 4
• Connection Type: Threaded/Set Screw
• Hub Size: 1 in
• Dimensions: 5.79 in L x 1.74 in W x 2.74 in H
• Number of Hubs: 2
• Capacity: 7.5 cu-in
• Mounting Type: Surface
