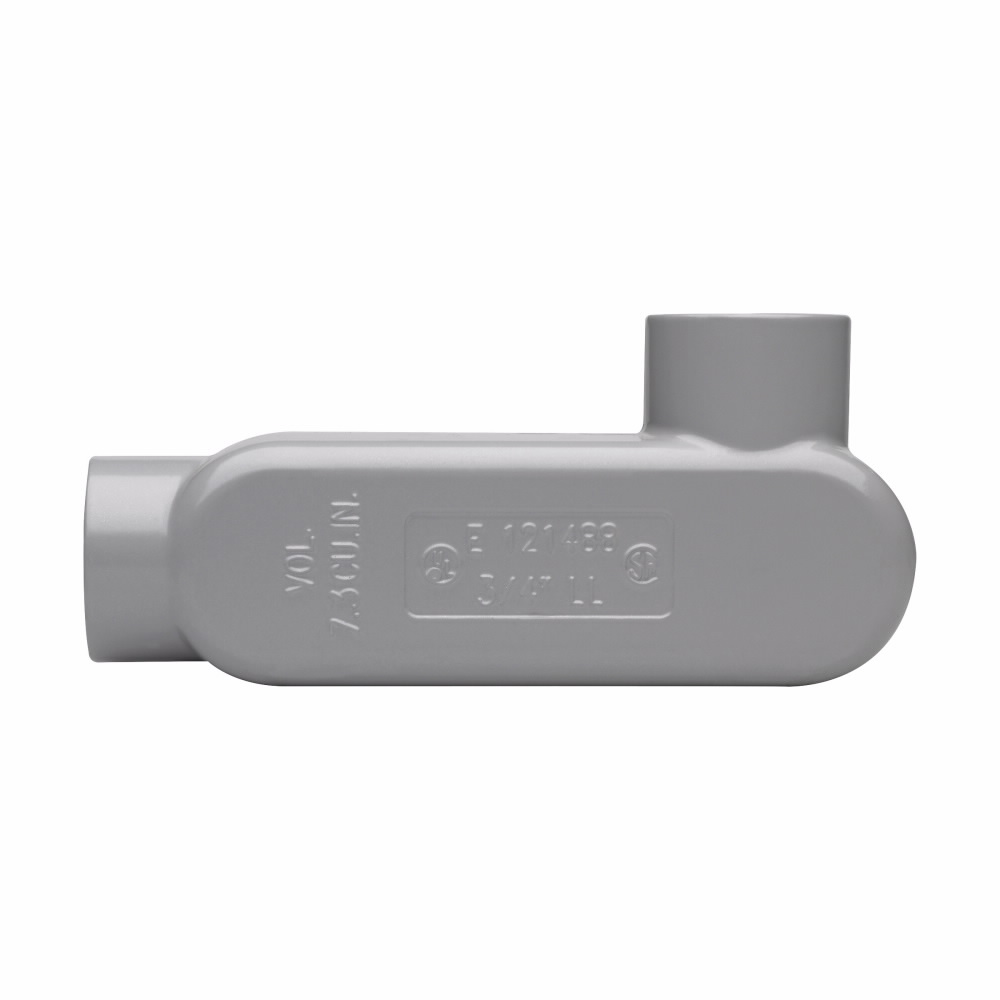

Crouse-Hinds LL25MT Conduit Body 3/4 Inch Die-Cast Aluminum

Product Description

The Crouse-Hinds LL25MT is a conduit body made from die-cast aluminum, designed for use with rigid and EMT conduit. This model has a hub size of three-quarters of an inch and is suitable for commercial and institutional buildings. The clean lines of the LL25MT make it easy to install and use.

• Compatible with EMT, rigid, and IMC conduit.
• Constructed from copper-free aluminum.
• Threaded and set screw connection for secure mounting.

Product Highlights

Use this conduit body to provide access for wiring, make splices, and connect multiple conduits together.

Product Information

Standard Information

• Manufacturer: Eaton Crouse-Hinds
• Application: For use with rigid/IMC/EMT conduit

Technical Specifications

• Catalog Number: LL25 MT
• Material: Die Cast Copper-Free Aluminum
• Hub Size: 3/4 in
• Dimensions: 5.07 in L x 2.28 in W x 1.64 in H
• Finish: Epoxy Powder Coated
• Weight: 0.48 lb
• Standards/Approvals: UL, cUL Listed
• Country of Origin: India
