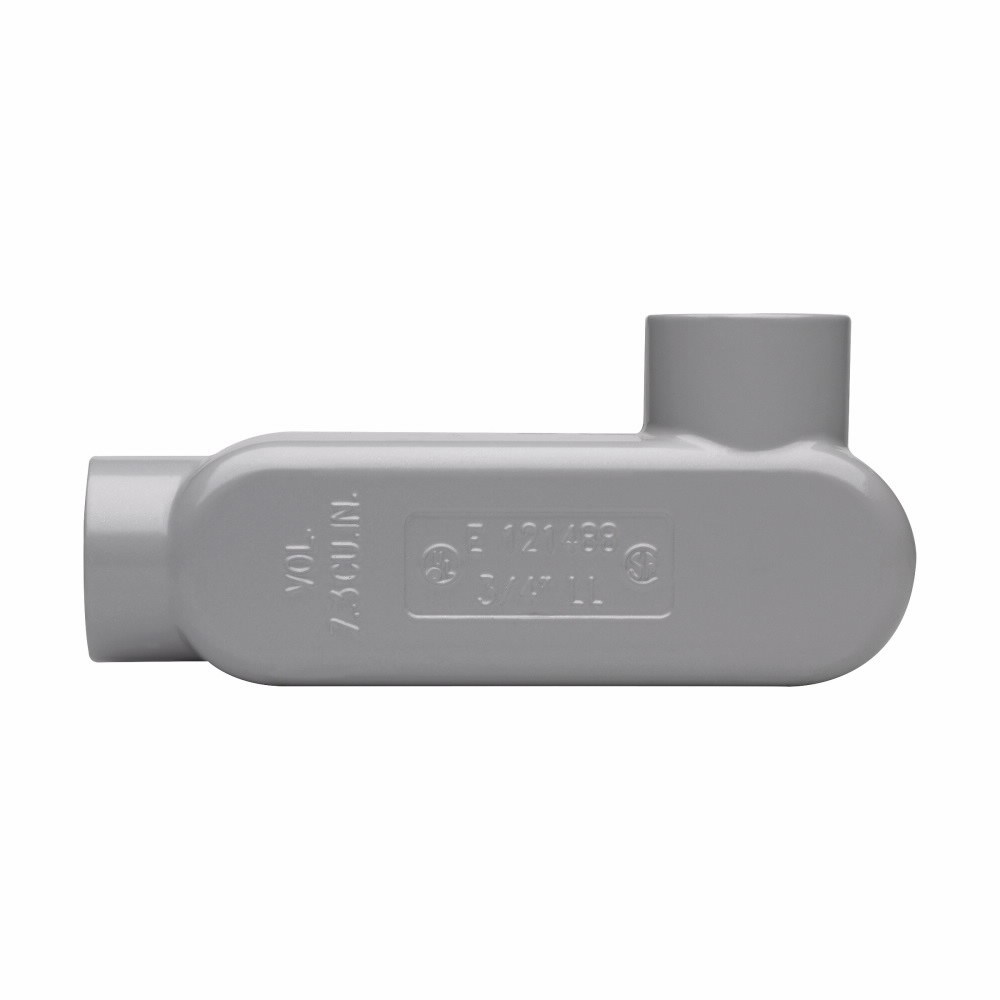

Crouse-Hinds LL25 Condulet Rigid/IMC Conduit Body 3/4 inch

Product Description

The Crouse-Hinds LL25 is a conduit outlet body designed for use with rigid and IMC conduit. This product is made from copper-free aluminum, ensuring durability and strength. The LL25 conduit body features a hub size of three-fourths inch and is ideal for a variety of electrical applications.

• Compatible with rigid and EMT conduit systems.
• Designed to provide openings for making splices and taps.
• UL and cUL listed for safety and compliance.

Product Highlights

The LL25 is a reliable choice for commercial and institutional buildings. This conduit body is built to withstand various environments, making it suitable for installation in diverse settings.

Product Information

Standard Information

• Manufacturer: Eaton Crouse-Hinds
• Sub Brand: Crouse-Hinds series

Technical Specifications

• Catalog Number: LL25
• Material: Die Cast Copper Free Aluminum
• Finish: Epoxy Powder Coated
• Color: Gray
• Dimensions: 5.07 in L x 2.28 in W x 1.64 in H
• Hub Size: 3/4 in
• Connection Type: Threaded/Set Screw
• Number of Hubs: 2
• Enclosure: NEMA 4
• Application: Rigid/IMC/EMT Conduit
