Crouse-Hinds LL15 Conduit Outlet Body 1/2 In Hub Replacement MPN

Product Description

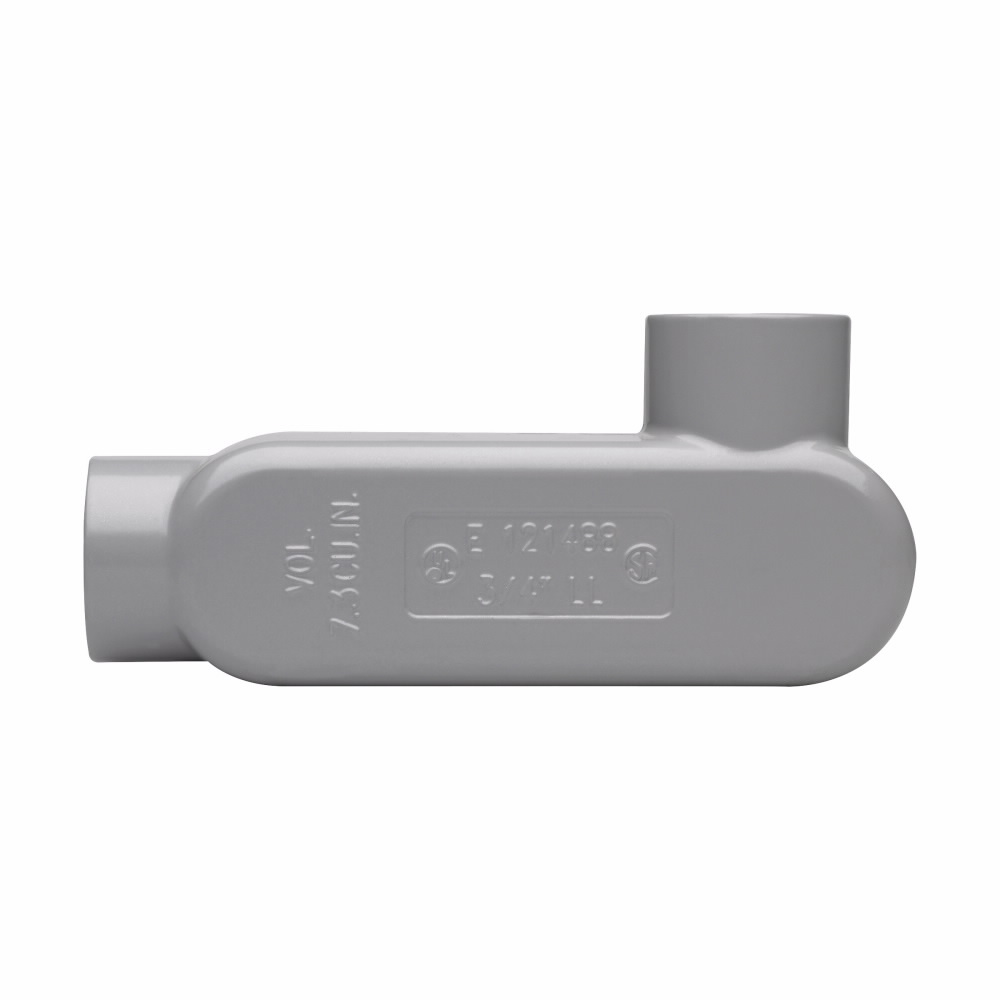

The Crouse-Hinds LL15 is a conduit outlet body designed for use with rigid and IMC conduit. Manufactured by Eaton, it is made from copper-free die-cast aluminum, providing durability and resistance to corrosion. This model features a hub size of half an inch and is suitable for various applications including commercial and institutional buildings.

• Hub Size: 0.5 inches
• Material: Die cast copper-free aluminum
• Finish: Epoxy powder coated for enhanced durability

Product Highlights

This conduit body supports both threaded and set screw connections. The LL15 type is designed for efficient conductor management, allowing for splices and taps.

Product Information

Standard Information

• Catalog Number: LL15
• Brand: Crouse-Hinds

Technical Specifications

• Dimensions: 4.4 inches (Length) x 2.06 inches (Width) x 1.4 inches (Height)
• Weight: 0.3 pounds
• Hub Size: 0.5 inches
• Number of Hubs: 2
• Enclosure Type: NEMA 4
• Application: Suitable for Rigid/IMC/EMT conduit
• UPC: 784564140210
• Standards/Approvals: UL, cUL, NEC compliant
