Crouse Hinds LB97 Lb97 3-1/2 Lb Cnd Bdy

Product Description

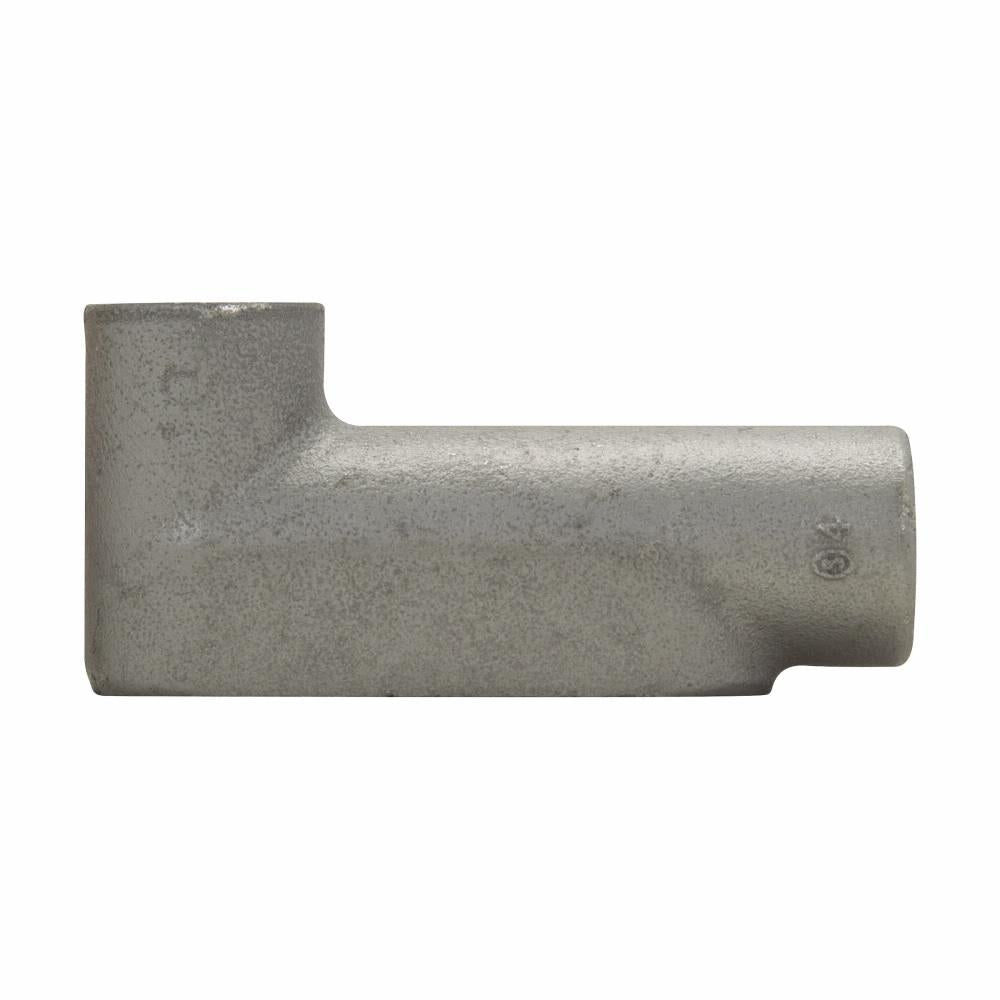

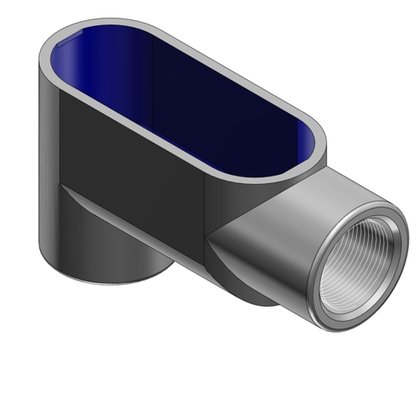

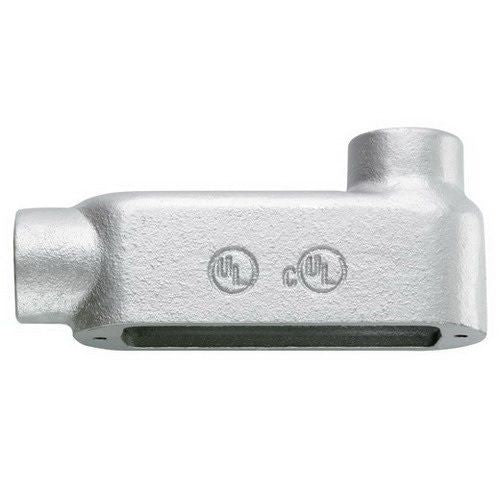

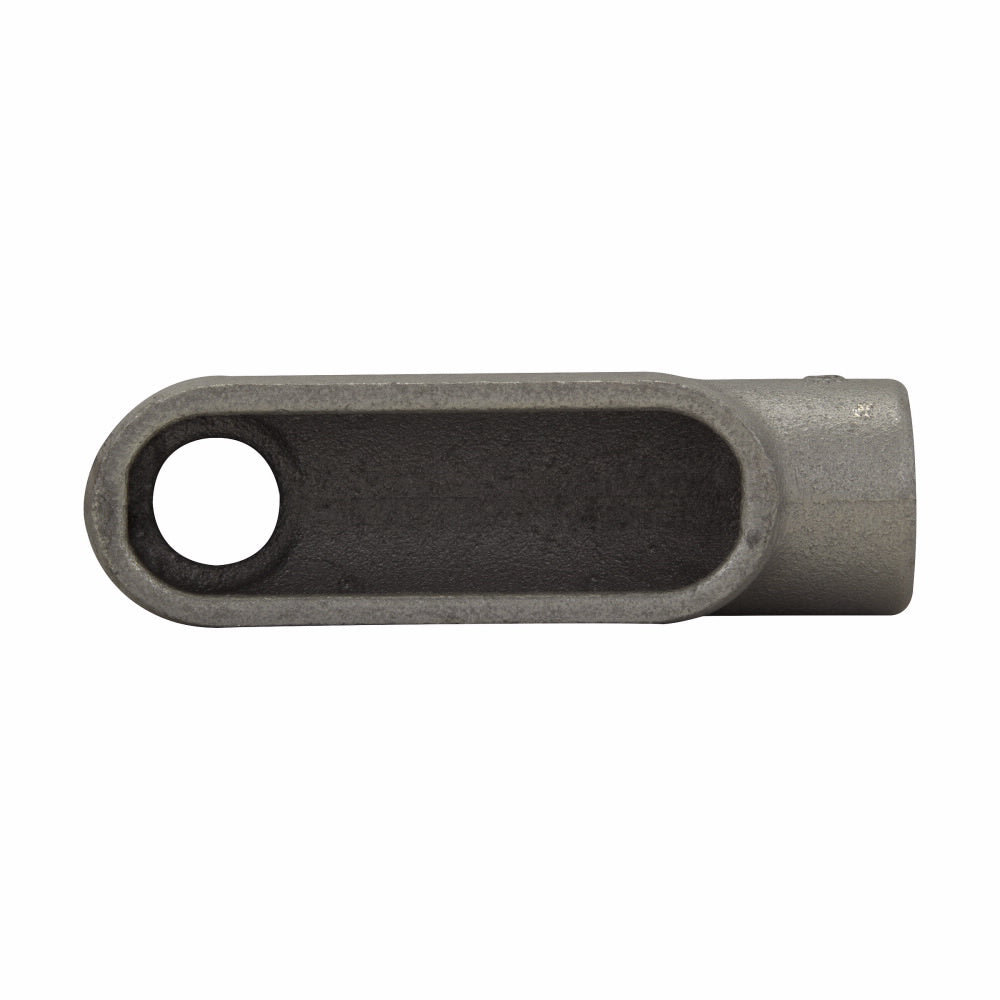

The CROUSE HINDS LB97 is an Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body made from Feraloy iron alloy with an LB shape and a 3-1/2IN hub size. It acts as pull outlets for conductors being installed and provides openings for making splices and taps in conductors within industrial facilities and factories.

• Constructed from Feraloy iron alloy.
• Features a Form 7 design for neat, compact installations.
• Conduit hubs have tapered threads and feature integral bushing for protection of wire insulation.

Product Highlights

The LB97 Condulet outlet body is ideal for rigid conduit applications, providing a robust and reliable solution for electrical connections and conductor management.

Product Information

Standard Information

• Brand: CROUSE HINDS
• Manufacturer Part Number: LB97
• Country of Origin: United States

Technical Specifications

• Form: Form 7
• IGCC: 5563
• Type: Conduit outlet body
• Width: 5.25 in
• Finish: Aluminum Acrylic Painted/Electro-Galvanized
• Height: 6.5625 in
• Hub Size: 3.5 in
• Material: Feraloy Iron Alloy
• Standard: UL 514B; CSA C22.2; FEDERAL SPECIFICATION W-C-586D
• Sub Brand: Crouse-Hinds series
• Brand Name: Eaton
• Application: For rigid conduit, act as pull outlets for conductors being installed, provide openings for making splices and taps in conductors
• Family group: FITTINGS
• Manufacturer: CROUSE HINDS
• Catalog Number: LB97
• Product Length/Depth: 12.69 in
• Product Height: 6.56 in
• Product Width: 5.25 in
• Product Type: Conduit outlet body
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• NEMA Rating: 12
• Shape: LB
• Trade size: 3-1/2"
• Number of Hubs: 2
• Connection: Thread
• Standards: UL 514B|CSA C22.2 No. 18|Federal Specification W-C-586D|NEC Compliant|CEC Certified
• Connection Type: Threaded
• Form Type: 7
• Applications: Rigid Conduit
• Product UPC: 78227451620
