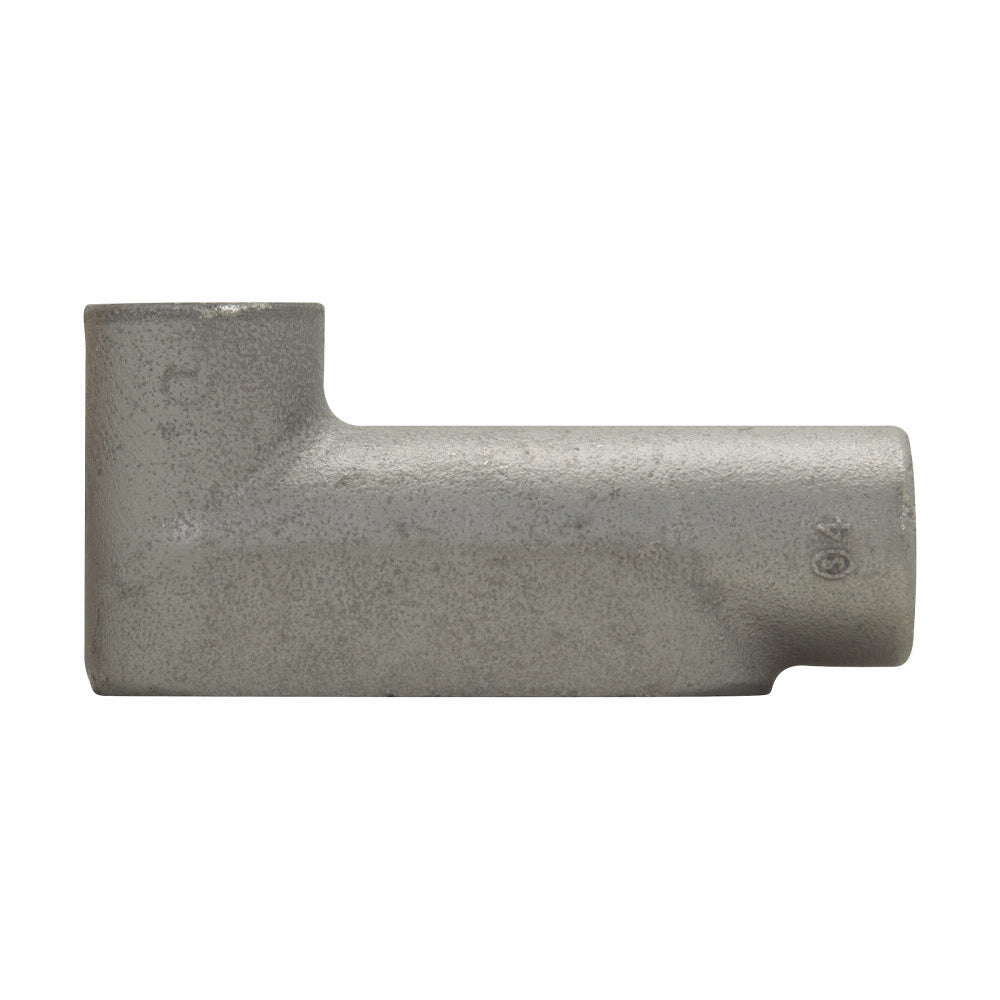

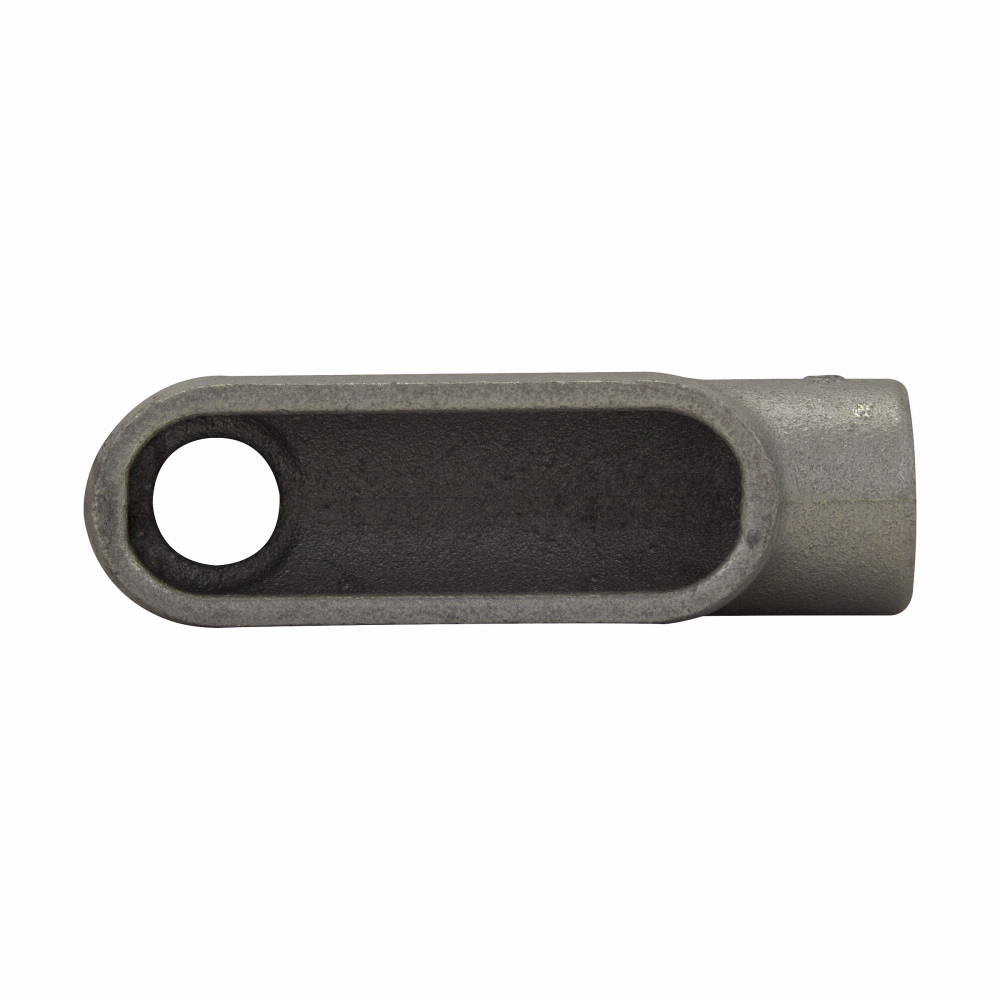

Crouse Hinds LB87 Feraloy Iron Alloy Type LB Conduit Outlet Body 3-Inch Condulet

Product Description

The Crouse-Hinds LB87 Condulet Type LB Form 7 conduit outlet body features feraloy iron alloy construction with an electro-galvanized aluminum acrylic paint finish. With a trade size of 3-inches and a 128 cubic inch capacity, this NEMA 3R rated conduit outlet body has a threaded connection and SNAPTIGHT cover. It is designed for use on rigid conduit and acts as a pull outlet for conductor installation.

• Form 7 condulet outlet body approaches conduit in size for neat and compact installations
• Has trade size of 3-inches
• Measures 10.5-Inch x 4.25-Inch x 5.875-Inch

Product Highlights

The Crouse-Hinds LB87 conduit outlet body provides access to conductors for maintenance and system changes. It is UL listed and CSA certified.

Product Information

Standard Information

• Brand: Crouse Hinds
• Manufacturer Part Number: LB87
• Country of Origin: United States of America

Technical Specifications

• Trade Size: 3 Inch
• Standards: UL E15022 Listed, CSA 22.2 No 18 Certified, Federal Specification: W-C-586D
• Conduit Body Style: Type LB
• Conduit Body Form: Form 7
• Sub Brand: Condulet®
• NEMA Rating: NEMA 3R
• Number of Hubs: 2.0000
• Cover Type: Snaptight
• Brand: Crouse-Hinds
• Connection Type: Threaded
• Cubic Capacity: 128
• Material: Feraloy Iron Alloy
• Finish: Electrogalvanized with Aluminum Acrylic Painted
• For Use With: Rigid Conduit
• Hub Placement: 90 Degree
• Item Name: Conduit Outlet Body
• Country Of Origin: United States of America
• Manufacturer Part Number: LB87
• UPC: 78227451610
• Manufacturer: Crouse-Hinds
• GTIN: 00782274516103
• UNSPSC: 39131708
• Product Length/Depth: 10.5 in
• Product Height: 5.88 in
• Product Width: 4.25 in
• Product Type: Conduit outlet body
• Area classification: Ordinary/Non-Hazardous Locations
• Standard Type: NEC/CEC
• Shape: LB
• Applications: Rigid Conduit
• Form Type: 7
• Hub Size: 3 in
• Type: LB
• 12-Digit UPC: 782274516103
• Length: 10-1/2 Inch
• No. of Hubs: 2 Hub
