Product Description

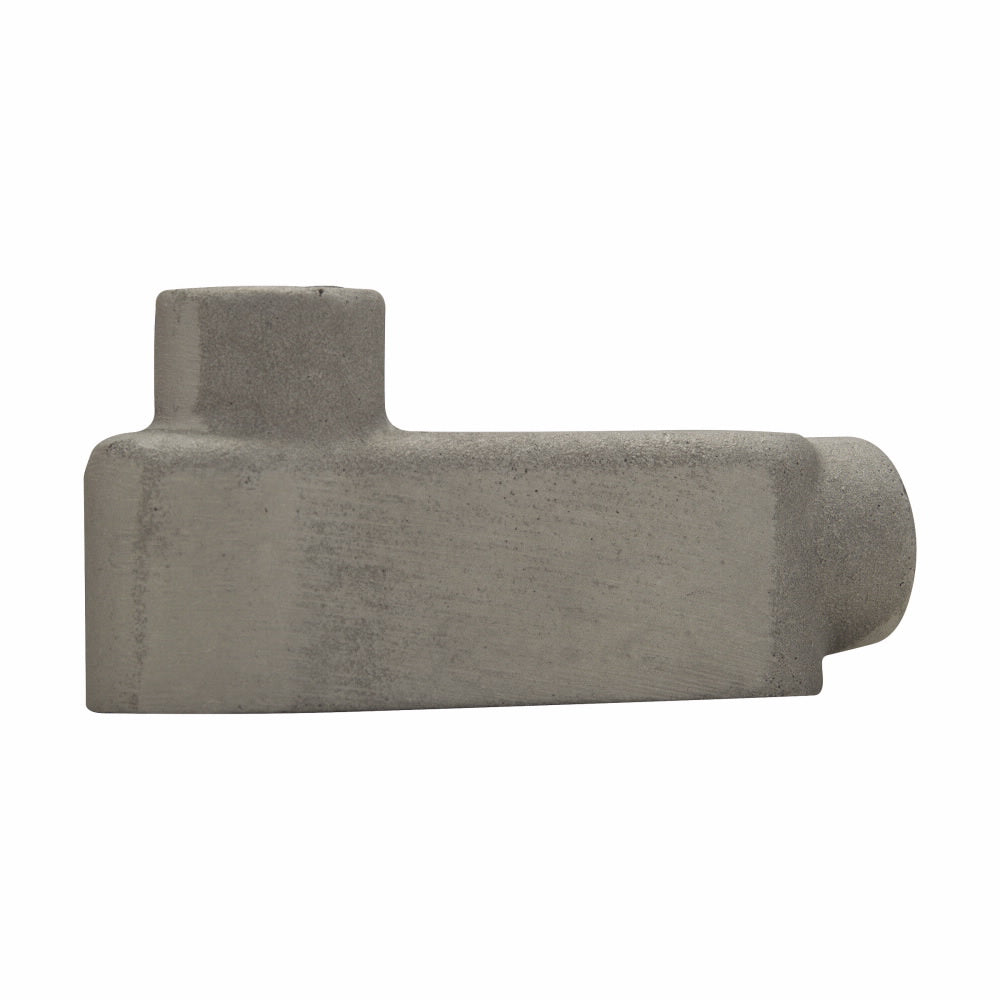

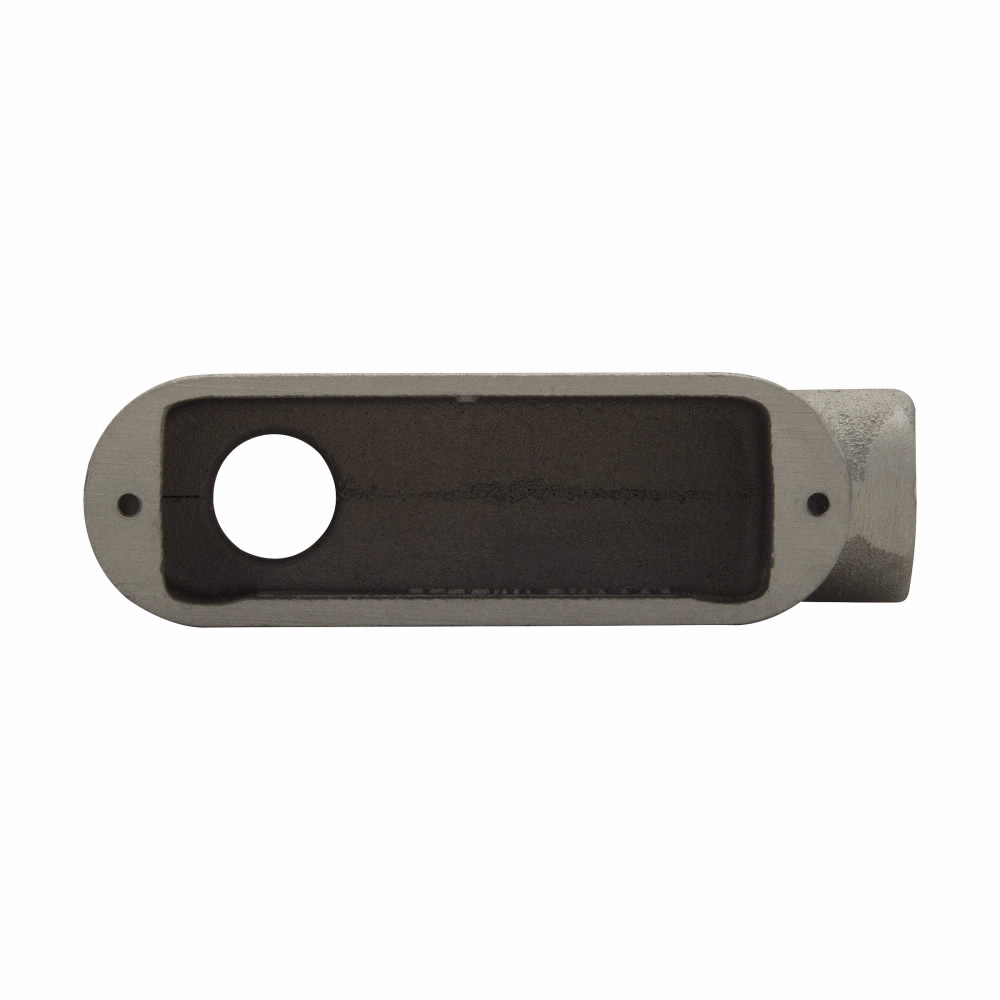

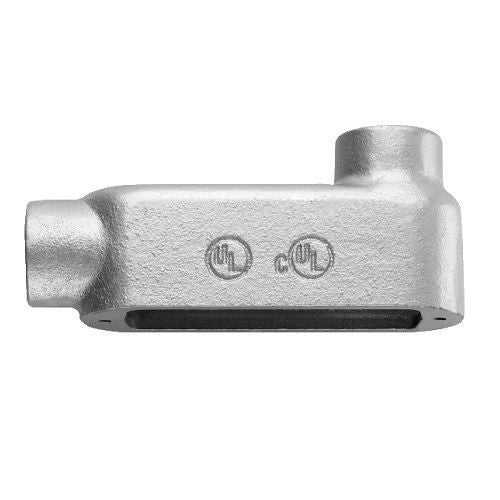

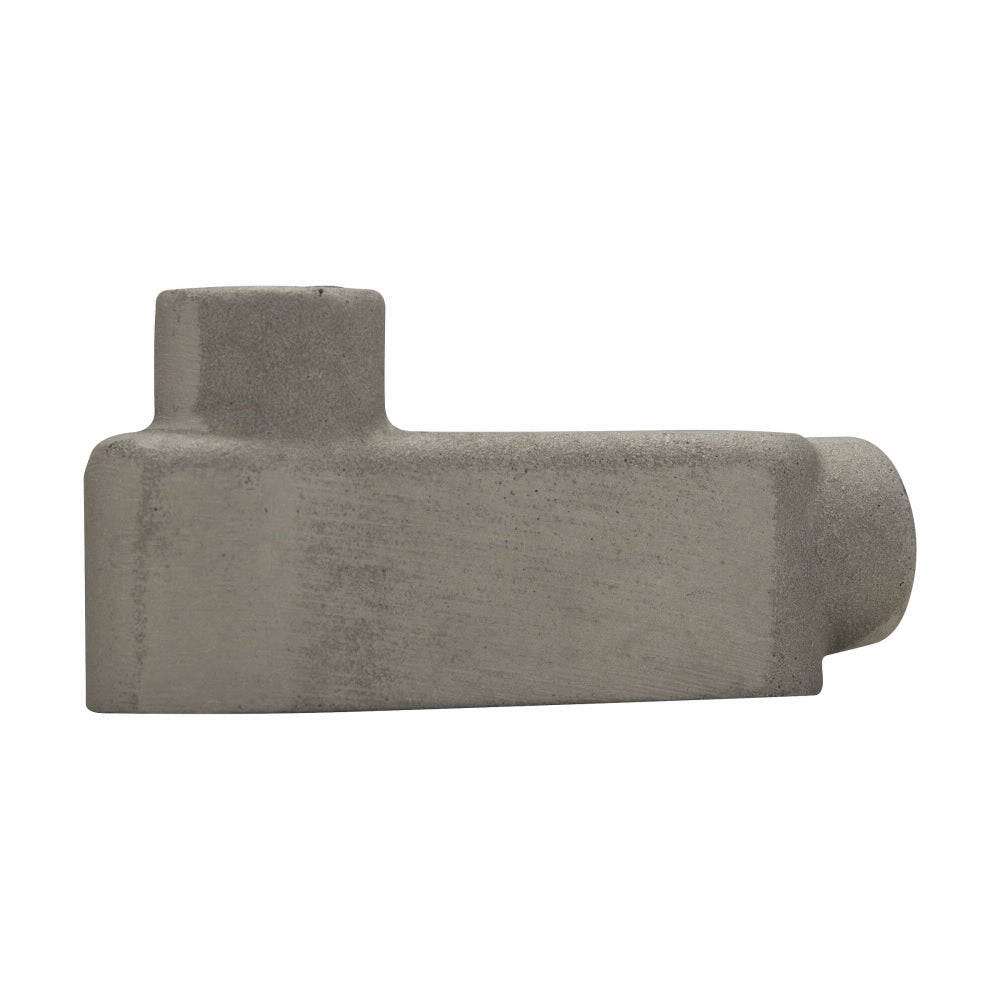

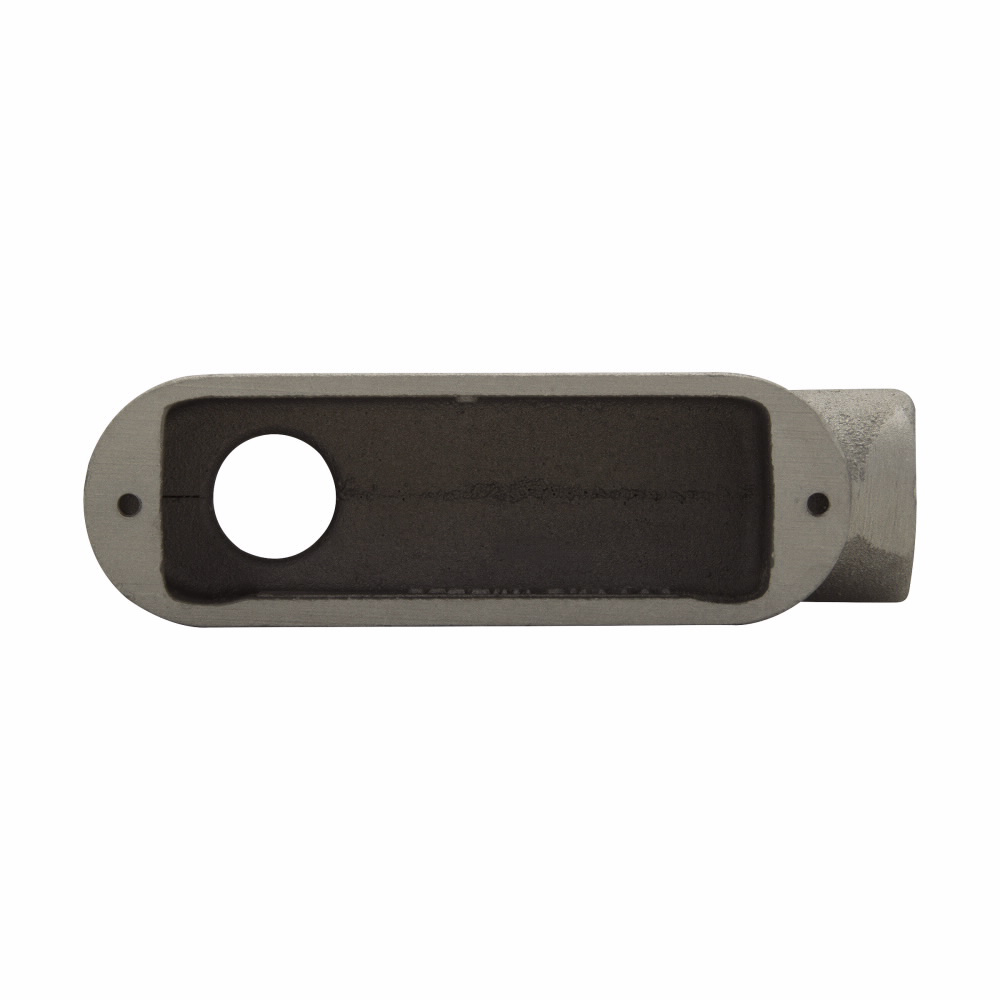

The CROUSE HINDS LB69 Condulet Mark 9 conduit outlet body is made of copper-free aluminum with an LB shape and a 2" trade size. It acts as a pull outlet for conductors being installed and provides openings for making splices and taps. Conduit outlet bodies are installed in conduit systems.
- Conduit hubs have tapered threads and feature integral bushing for protection of wire insulation
- Act as pull outlets for conductors being installed
- Provide openings for making splices and taps in conductors
Product Highlights
This conduit outlet body connects conduit sections, provides taps for branch conduit runs, and makes 90 deg bends in conduit runs.
Product Information
Standard Information
-
Brand: CROUSE HINDS
-
Manufacturer Part Number: LB69
-
Country of Origin: CN - China
Technical Specifications
-
Product Name: Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body
-
Catalog Number: LB69
-
UPC: 782274515809
-
Product Length/Depth: 10.09 in
-
Product Height: 4.59 in
-
Product Width: 3.22 in
-
Product Type: Conduit outlet body
-
Area classification: Ordinary/Non-Hazardous Locations
-
Standards type: NEC/CEC
-
NEMA Rating: 12
-
Shape: LB
-
Trade size: 2"
-
Material: Copper-free aluminum
-
Hub Size: 2 in
-
Number of Hubs: 2
-
Connection Type: Threaded
-
Finish: Natural
-
Type: Type LB
-
Application: Rigid Conduit
-
Standard & Approvals: ARRA, Buy American Act and RoHS Compliant, UL 514B, CSA C22.2 No. 18, Federal Spec W-C-586D
-
Form: Mark 9
-
Capacity: 75
-
ECCN: EAR99
-
UNSPSC: 39131708
-
Cover and Gasket: No
-
No. of Hubs: 2 Hub
