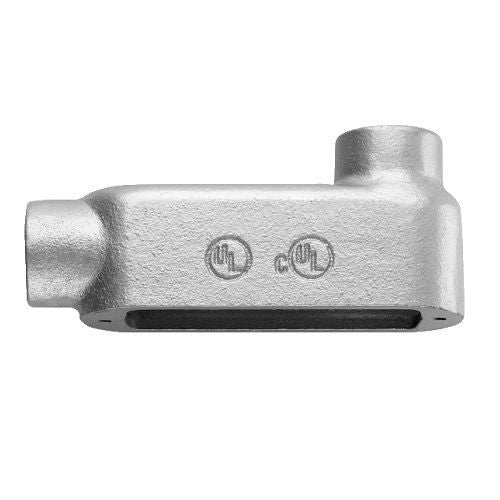

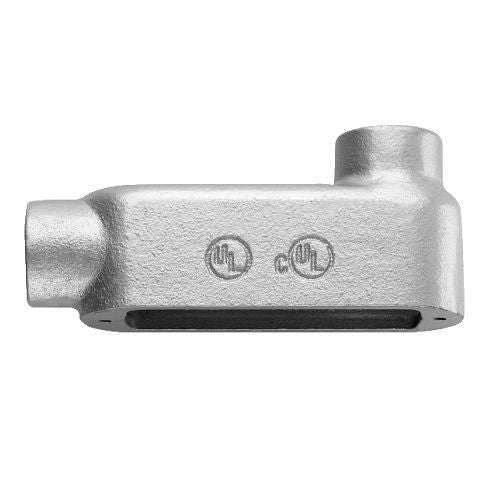

Crouse Hinds LB59 Condulet Mark 9 Conduit Outlet Body 1-1/2 inches

Product Description

The CROUSE HINDS LB59 Condulet Mark 9 conduit outlet body is made of copper-free aluminum with an LB shape and a 1-1/2" trade size. It acts as a pulling outlet for conductors being installed and provides openings for making splices and taps. Conduit outlet bodies are installed in conduit systems.

• Conduit hubs have tapered threads and feature integral bushing for protection of wire insulation
• Act as pull outlets for conductors being installed
• Provide openings for making splices and taps in conductors

Product Highlights

This conduit outlet body connects conduit sections, provides taps for branch conduit runs, and makes 90 deg bends in conduit runs. It also provides access to conductors for maintenance.

Product Information

Standard Information

• Brand: CROUSE HINDS
• Manufacturer Part Number: LB59
• Country of Origin: Unknown

Technical Specifications

• Product Name: Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body
• Catalog Number: LB59
• UPC: 782274515304
• Product Length/Depth: 7.78 in
• Product Height: 3.88 in
• Product Width: 2.5 in
• Product Type: Conduit outlet body
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• NEMA Rating: 12
• Shape: LB
• Trade size: 1-1/2"
• Material: Copper-free aluminum
• Hub Size: 1-1/2 in
• Number of Hubs: 2
• Type: Type LB
• Application: Rigid Conduit
• Standard & Approvals: ARRA, Buy American Act and RoHS Compliant, UL 514B, CSA C22.2 No. 18, Federal Spec W-C-586D
• Connection Type: Threaded
• Finish: Natural
• Form: Mark 9
• ECCN: EAR99
• UNSPSC: 39131708
• No. of Hubs: 2 Hub
